Model
Kenmore 66513223N413
Dishwasher (Kenmore 66513223N413)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513223N413Dishwasher (Kenmore 66513223N413)
10 diagrams155 parts
Parts Sections (10)
Diagram

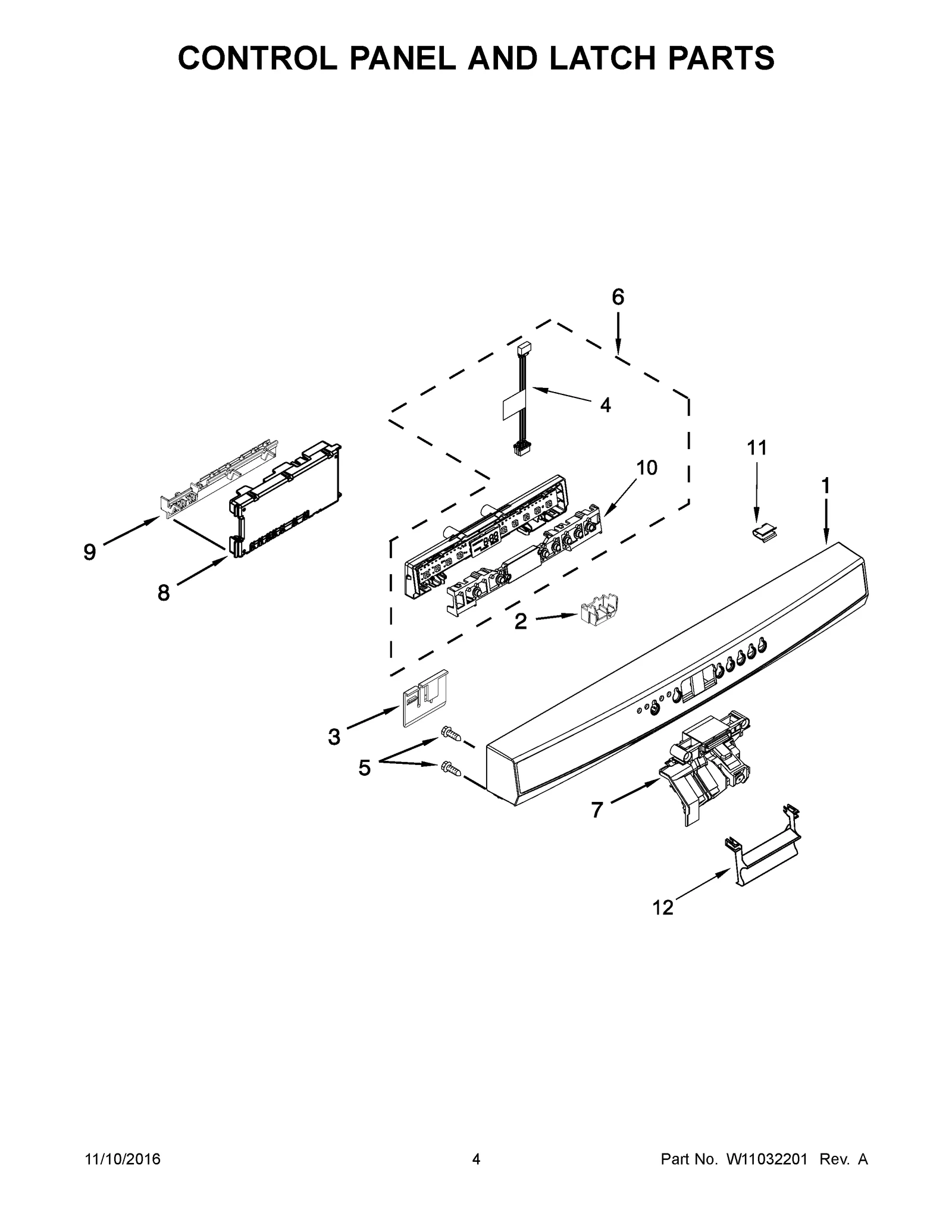

CONTROL PANEL AND LATCH PARTS
Parts in CONTROL PANEL AND LATCH PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10605167replaces W10605157 Console Assembly (Black) | - |
| 1A |  | W10605168replaces W10605158 Console Assembly (White) | - |
| 2 |  | W10783730replaces W10756253 Dishwasher Control Board Connector Cover | $18.88 RepairClinic |
| 3 |  | W11256107replaces W10195237 Dishwasher Control Board Clip | $23.60 PartSelect |
| 4 |  | W11028004replaces W10566903 Dishwasher User Interface Wire Harness | $7.97 Part Advantage |
| 5 |  | WPW10348408replaces W10348408 Dishwasher Screw | $7.43 ApplianceParts Pro |
| 6 |  | Dishwasher User Interface Assembly | $135.40 PartSelect |
| 7 |  | WPW10653840replaces W10653840 Dishwasher Door Latch | $12.94 Part Advantage |
| 8 |  | W11108143replaces W11024455 CTRL-SKY-N16 | $205.69 ApplianceParts Pro |
| 9 |  | WPW10194937replaces W10194937 Dishwasher Control Board Connector Bracket | - |
| 10 |  | Dishwasher Push-Button Switch Assembly | $9.09 RepairClinic |
| 11 |  | W10815836replaces W10485367 Dishwasher Control Panel Clip | $2.30 Part Advantage |
| 12 | | W11673298replaces W10313267 Dishwasher Door Handle | $35.34 Parts Dr |
| 12A |  | Dishwasher Door Handle | $33.03 Parts Dr |
