Model
Kenmore 66513229K601
Dishwasher (Kenmore 66513229K601)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513229K601Dishwasher (Kenmore 66513229K601)
11 diagrams171 parts
Parts Sections (11)
Diagram

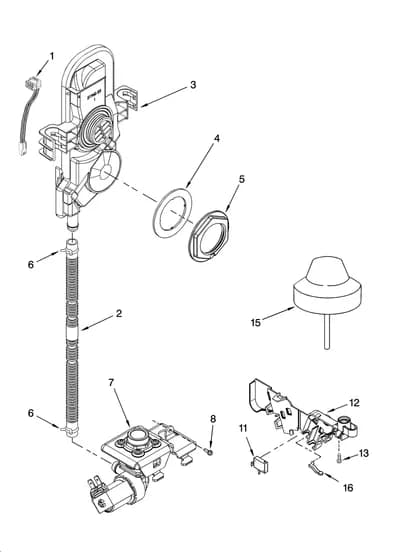

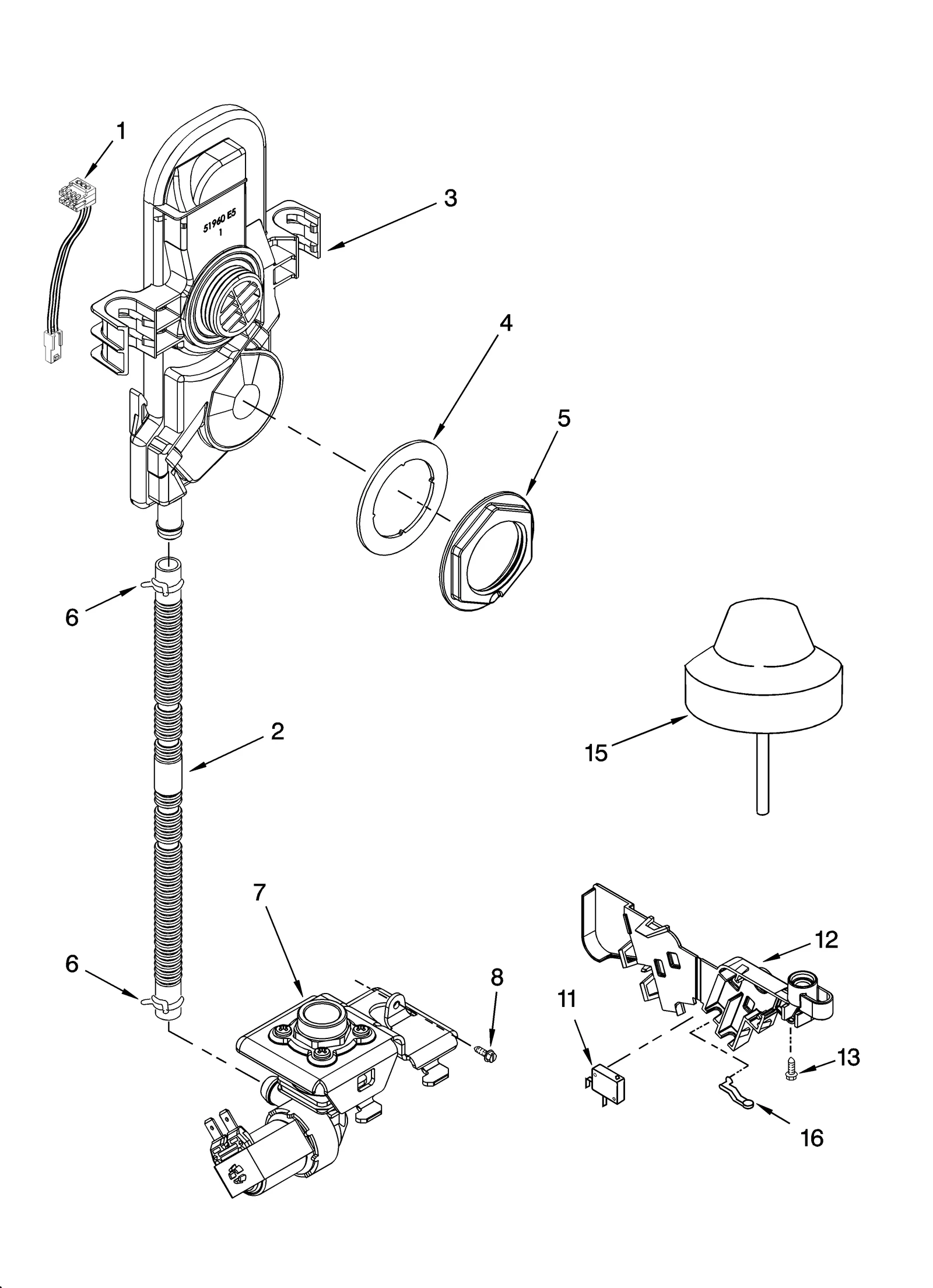

FILL AND OVERFILL PARTS
Parts in FILL AND OVERFILL PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Wire | - |
| 2 | | W10041920NLA Dishwasher Fill Hose | Discontinued |
| 3 |  | Dishwasher Water Inlet Valve | - |
| 4 |  | WP8531323replaces 8531323 Dishwasher Water Inlet Port Gasket | $11.93 Part Advantage |
| 5 |  | WPW10508676replaces 8531326 Nut Tube | $14.62 Parts Dr |
| 6 |  | WP596669replaces 371505 Clamp | $2.30 Part Advantage |
| 7 |  | WPW10158389replaces 8563405 Dishwasher Water Inlet Valve | $26.40 Part Advantage |
| 8 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 11 |  | WP8268909replaces 8268909 Dishwasher Float Switch | $29.35 Part Advantage |
| 12 |  | WPW10175383replaces 8545881 Standpipe | $50.56 PartSelect |
| 13 |  | WP304231replaces 304231 Dishwasher Screw | $5.00 RepairClinic |
| 15 |  | WP8268913replaces 8268913 Dishwasher Float Assembly | $47.37 Parts Dr |
| 16 |  | WP8268892replaces 8268892 Overflow Lever | - |
