Model
Kenmore 66513269K111
Undercounter Dishwasher (Kenmore 66513269K111)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513269K111Undercounter Dishwasher (Kenmore 66513269K111)
12 diagrams156 parts
Parts Sections (12)
Diagram

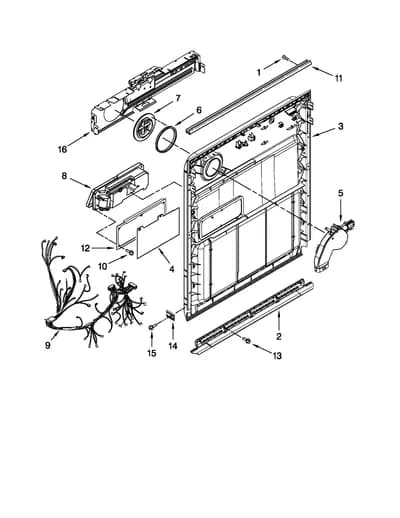

INNER DOOR PARTS
Parts in INNER DOOR PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10177098replaces W10177098 Dishwasher Screw | $3.31 Part Advantage |
| 2 |  | WPW10497235replaces W10195543 Seal | $3.83 Part Advantage |
| 3 |  | WPW10467363replaces W10467363 Dishwasher Door Inner Panel Assembly | - |
| 4 |  | Dishwasher Control Board Cover | - |
| 5 |  | WPW10469575replaces W10462769 Vent | $57.38 Part Advantage |
| 6 |  | WP8269259replaces 8269259 Dishwasher Vent Gasket | $26.73 Part Advantage |
| 7 |  | WPW10195032replaces W10195032 Dishwasher Door Vent Grille | $48.21 ApplianceParts Pro |
| 8 |  | WPW10304409replaces W10304409 Dishwasher Detergent Dispenser Assembly | $104.53 Part Advantage |
| 9 |  | W10837069replaces W10358245 Dishwasher Wire Harness | $94.17 Parts Dr |
| 11 |  | WPW10195007replaces W10195007 Dishwasher Control Panel Seal | $58.26 Part Advantage |
| 12 |  | WPW10462232replaces W10462232 Dishwasher Detergent Dispenser Bracket | $11.10 Part Advantage |
| 13 |  | Refrigerator Door Trim Screw | $4.17 Part Advantage |
| 14 |  | Dishwasher Vapor Barrier | - |
| 15 |  | WP3400071replaces 3400071 Dishwasher Control Panel Seal Screw | $2.30 Part Advantage |
| 16 |  | WPW10350242replaces W10350242 Dishwasher Electronic Control Board Housing | - |
