Model
Kenmore 66513272K111
Undercounter Dishwasher (Kenmore 66513272K111)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513272K111Undercounter Dishwasher (Kenmore 66513272K111)
11 diagrams137 parts
Parts Sections (11)
Diagram

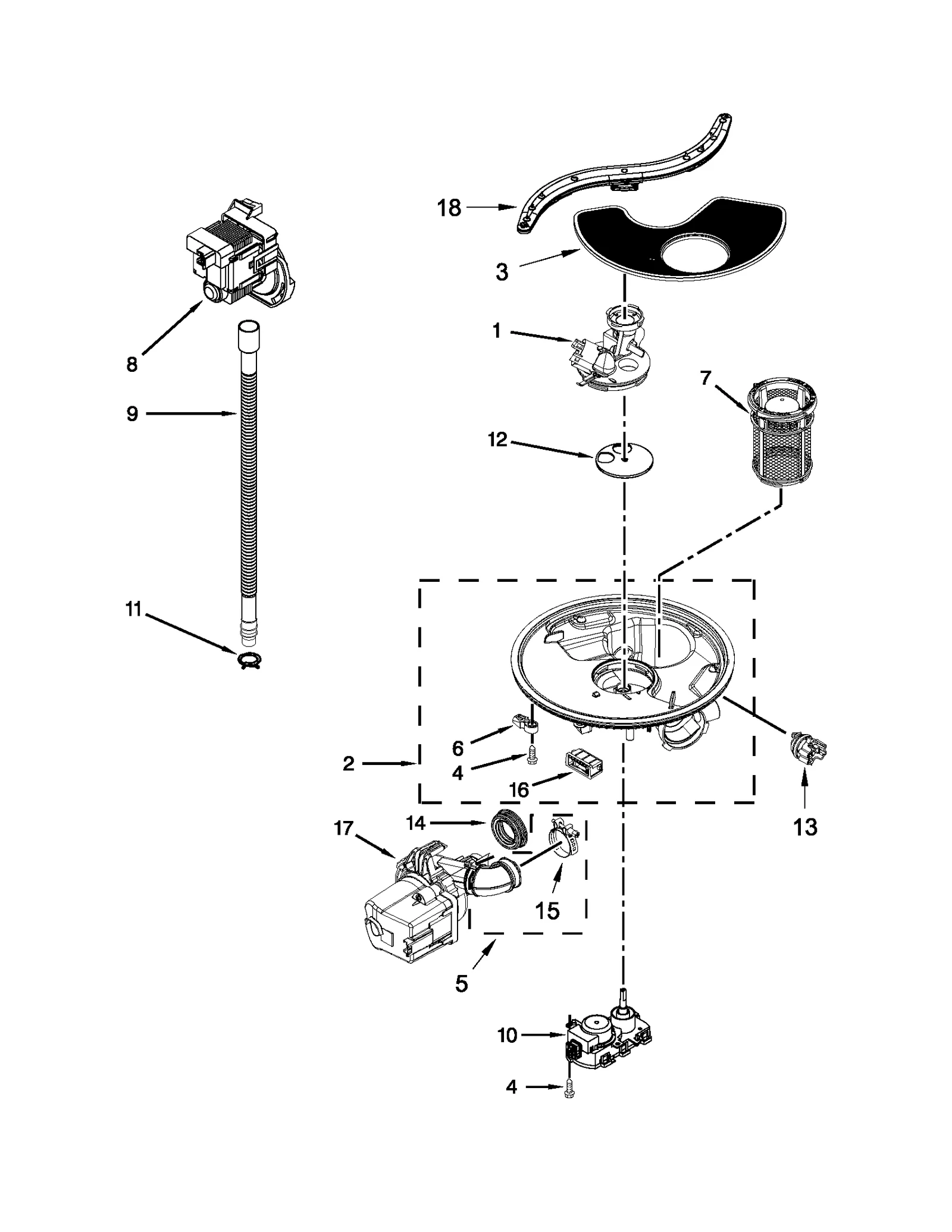

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10455271replaces W10315328 Cover | $10.94 Part Advantage |
| 2 |  | WPW10455268replaces W10300747 Dishwasher Sump | $72.65 Part Advantage |
| 3 |  | WPW10354786replaces W10354786 Screen | $37.31 Parts Dr |
| 4 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 5 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | W10872845replaces W10393354 Dishwasher Filter | $27.41 Part Advantage |
| 8 |  | WPW10348269replaces 8558995 Dishwasher Drain Pump | $33.13 Part Advantage |
| 9 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 10 |  | W10537869replaces W10195076 Motor | $41.24 Part Advantage |
| 11 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |
| 12 |  | Dishwasher Pump Diffuser | - |
| 13 |  | WPW10705575replaces W10134017 Dishwasher Turbidity Sensor | $14.83 Part Advantage |
| 14 |  | WPW10538166replaces W10195068 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 15 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |
| 16 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 17 |  | W11032770replaces W10440715 Pump Motor | $137.07 Parts Dr |
| 18 |  | WPW10491331replaces W10376691 Dishwasher Spray Arm | $43.89 Part Advantage |
