Model
Kenmore 66513283K117
Dishwasher (Kenmore 66513283K117)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513283K117Dishwasher (Kenmore 66513283K117)
11 diagrams149 parts
Parts Sections (11)
Diagram

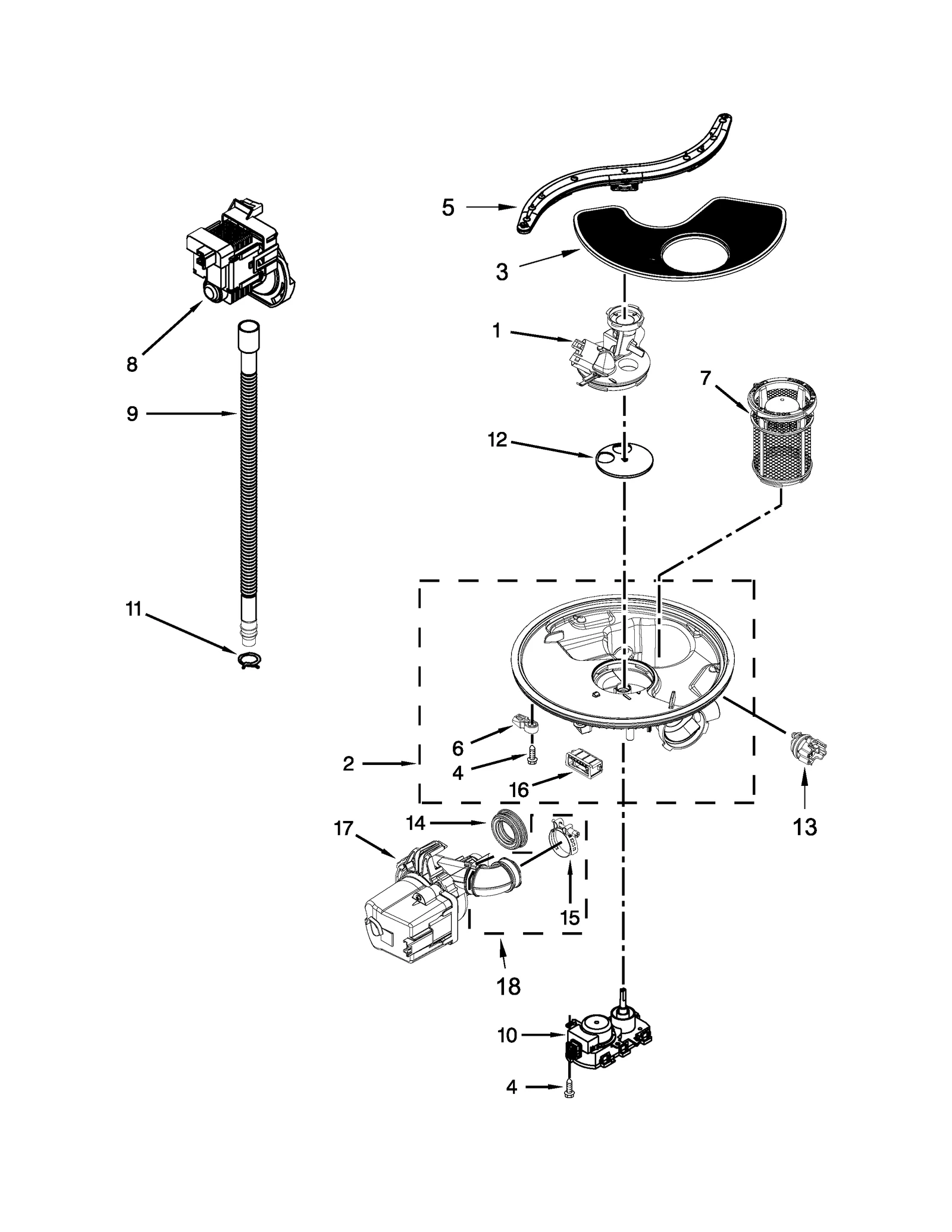

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10455272replaces W10455272 Cover | $35.85 Parts Dr |
| 2 |  | WPW10455268replaces W10455268 Dishwasher Sump and Seal Assembly | $72.65 Part Advantage |
| 3 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
| 4 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 5 |  | WPW10491331replaces W10376691 Dishwasher Spray Arm | $43.89 Part Advantage |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | W10872845replaces W10465378 Dishwasher Filter | $27.41 Part Advantage |
| 8 |  | WPW10348269replaces W10348269 Dishwasher Drain Pump | $33.13 Part Advantage |
| 9 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 10 |  | W10537869replaces W10476222 Dishwasher Diverter Motor | $41.24 Part Advantage |
| 11 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |
| 12 |  | WPW10476221replaces W10476221 Dishwasher Pump Diverter Disc | $21.45 PartSelect |
| 13 |  | WPW10705575replaces W10134017 Dishwasher Turbidity Sensor | $14.83 Part Advantage |
| 14 |  | WPW10538166replaces W10538166 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 15 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |
| 16 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 17 |  | W11032770replaces W10510667 Dishwasher Pump Motor Assembly | $137.07 Parts Dr |
| 18 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
