Model
Kenmore 66513403N413
Dishwasher (Kenmore 66513403N413)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513403N413Dishwasher (Kenmore 66513403N413)
10 diagrams159 parts
Parts Sections (10)
Diagram

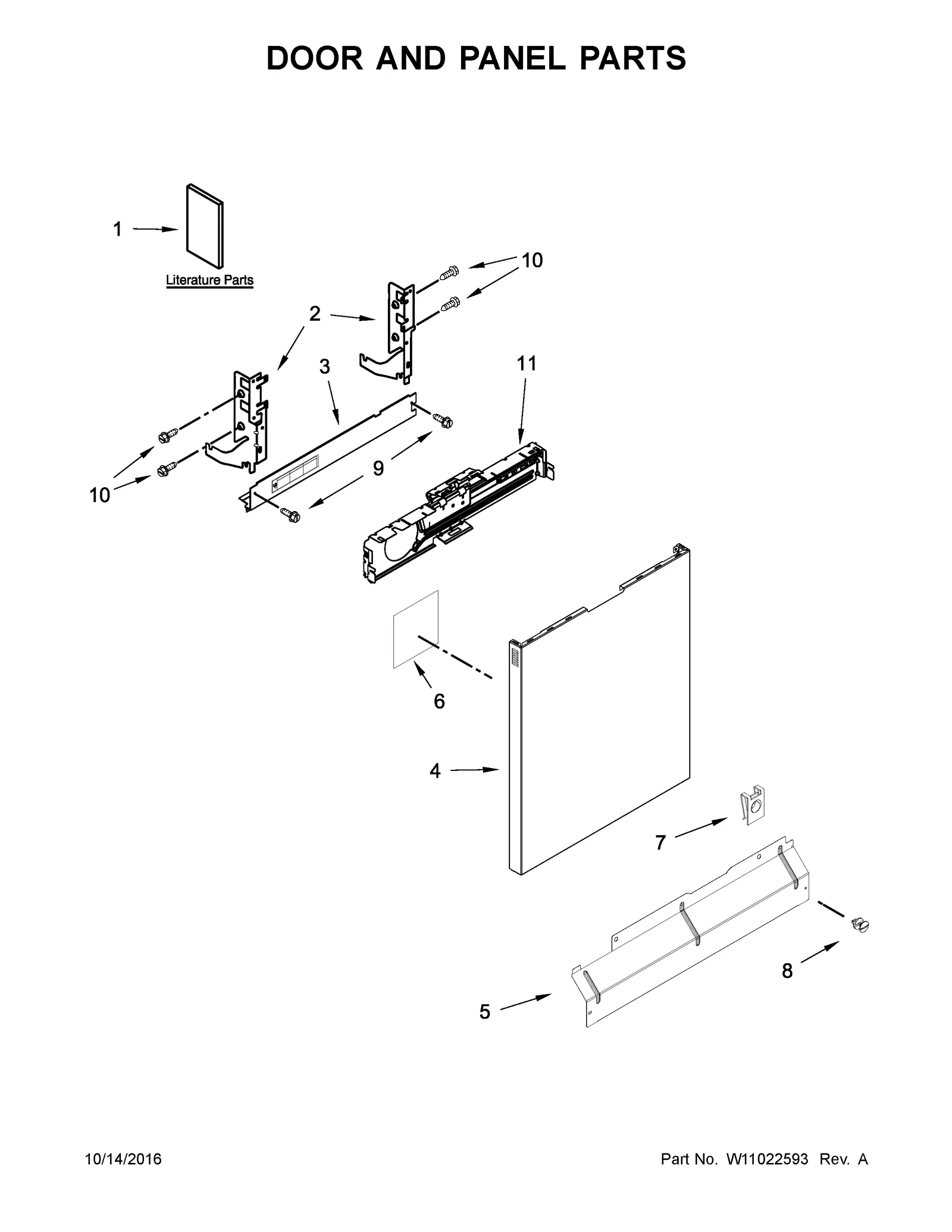

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10747788 Dishwasher Installation Manual | - |
| 1A | – | W10816953 Energy Guide | - |
| 1B | – | W10620228 Dishwasher Use and Care Guide | - |
| 1C | – | W10880570 TECH SHEET, ENGLISH | - |
| 1D | – | W10880571 TECH SHEET, FRENCH | - |
| 2 |  | W11612302replaces 8534854 Dishwasher Door Hinge | $77.34 PartSelect |
| 2A |  | W11612303replaces 8534853 Dishwasher Right Side Door Hinge Assembly | $60.05 Part Advantage |
| 3 |  | W10850371replaces W10844380 Dishwasher Vapor Barrier | $11.72 Part Advantage |
| 4 |  | W10620196NLA Dishwasher Door Outer Panel (Black) | Discontinued |
| 4A | | W10620197NLA Dishwasher Door Outer Panel (White) | Discontinued |
| 4B |  | Dishwasher Door Outer Panel | - |
| 5 |  | W11763736replaces W10852733 Access Panel | $16.47 Part Advantage |
| 5A |  | W10909066replaces W10852732 Access Panel | - |
| 6 |  | WPW10073520replaces W10073520 Dishwasher Outer Door Panel Insulation | $50.57 ApplianceParts Pro |
| 7 |  | W10910629replaces W10853886 8-18 WIDE U- | $5.95 ApplianceParts Pro |
| 8 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 8A |  | WP3400836replaces 3400836 Dishwasher Screw | $2.30 Part Advantage |
| 9 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 10 |  | WP3400071replaces 3400071 Dishwasher Control Panel Seal Screw | $2.30 Part Advantage |
| 11 |  | W11116870replaces W10641745 Dishwasher Control Board Connector Bracket | - |
