Model
Kenmore 66513633K901
Dishwasher (Kenmore 66513633K901)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513633K901Dishwasher (Kenmore 66513633K901)
11 diagrams167 parts
Parts Sections (11)
Diagram

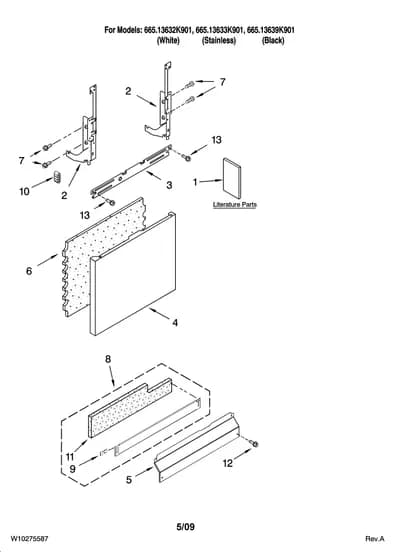

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10082490 Dishwasher Installation Manual | - |
| 1A | – | W10250179 Energy Guide | - |
| 1B | – | W10250184 Dishwasher Owner's Manual | - |
| 1C | – | W10142800 Technical Sheet | - |
| 2 |  | W11613573replaces W10143374 Dishwasher Door Hinge | $41.95 ApplianceParts Pro |
| 2A |  | W11613572replaces W10143373 Dishwasher Door Hinge | $33.01 Parts Dr |
| 3 |  | 8268983NLA Stiffner | Discontinued |
| 4 |  | W10301571replaces 8269841 Panel (Black) | $158.95 ApplianceParts Pro |
| 4A | | 8269842NLA Dishwasher Door Outer Panel (White) | Discontinued |
| 4B |  | W10301577replaces W10137614 Panel | - |
| 5 |  | W11763736replaces 8573255 Panel (Black) | $16.47 Part Advantage |
| 5A | | Panel | - |
| 6 |  | WPW10073520replaces W10073520 Dishwasher Outer Door Panel Insulation | $50.57 ApplianceParts Pro |
| 7 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
| 8 |  | W10871196replaces W10205336 Dishwasher Toe Panel | $66.43 Amazon |
| 8A |  | W10799406replaces W10205337 Dishwasher Toe Panel | - |
| 9 |  | WP8269016replaces 8269016 Dishwasher Toe Panel Clip | $6.90 RepairClinic |
| 10 |  | WP8268961replaces 8268961 Dishwasher Hinge Friction Sleeve | $3.20 Part Advantage |
| 11 |  | W10831329replaces W10073540 Dishwasher Toe Panel Insulation | $15.72 Part Advantage |
| 12 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 12A |  | WPW10503549replaces 3400836 Dishwasher Screw | $2.22 Part Advantage |
