Model
Kenmore 66513679K602
Dishwasher (Kenmore 66513679K602)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513679K602Dishwasher (Kenmore 66513679K602)
11 diagrams147 parts
Parts Sections (11)
Diagram

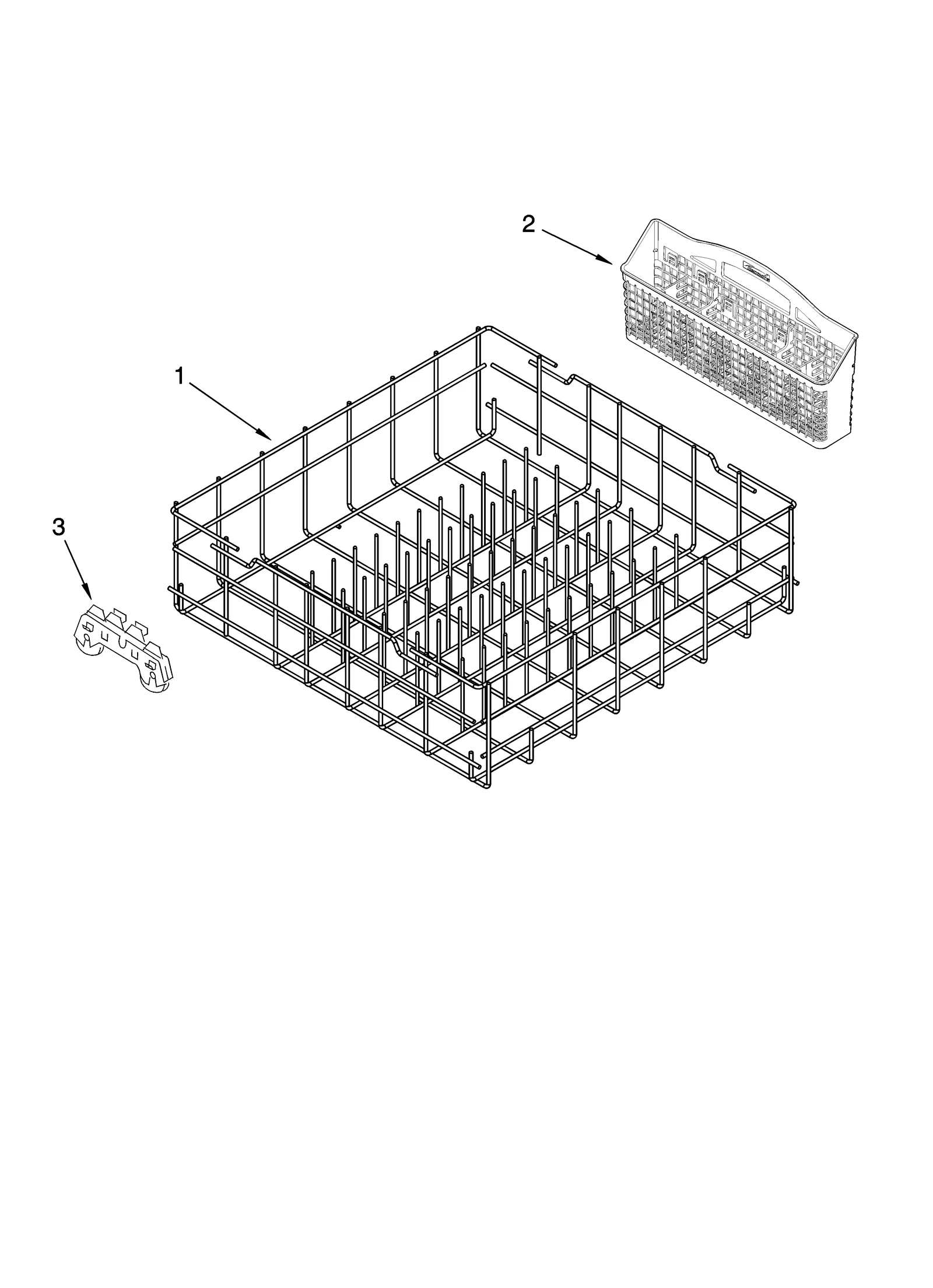

LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Parts in LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W11752368replaces 8561705 Dishwasher Dishrack, Lower | $155.79 ApplianceParts Pro |
| 2 |  | W11772520replaces 8562045 Dishwasher Silverware Basket | $25.17 Part Advantage |
| 3 |  | WP8268645replaces 8268645 Dishwasher Dishrack Roller Assembly, Lower | $29.04 Part Advantage |
| NI |  | Spray (Black) | $29.58 Parts Dr |
| NI |  | Dishwasher Power Cord Kit | $9.13 Part Advantage |
| NI | | Dishwasher Anti-Tip Floor Mounting Kit | $37.90 RepairClinic |
| NI | | Dishwasher Side Panel Kit (Black) | - |
| NI |  | Dishwasher Trim Kit, 6-in | - |
| NI | – | 4396198 6"trim Kit | - |
| NI |  | Paint 1qt | - |
| NI | | 8171656NLA Dishwasher Door Outer Panel | Discontinued |
| NI | | 8171657NLA Dishwasher Side Panel Kit | Discontinued |
| NI | | 8171658NLA Dishwasher Side Panel Kit | Discontinued |
| NI | | 8171659NLA Dishwasher Side Panel Kit | Discontinued |
| NI | | 978883NLA Paint | Discontinued |
| NI | | 4392900NLA Appliance Paint, 1-qt (Bisque) | Discontinued |
| NI |  | Paint (White) | $11.79 Amazon |
| NI |  | Danby Appliance Touch-Up Paint, 0.6-oz (White) | $3.58 Part Advantage |
| NI |  | Appliance Touch-Up Paint, 0.6-oz (Black) | $5.12 Part Advantage |
