Model
Kenmore 66513693N412
Dishwasher (Kenmore 66513693N412)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513693N412Dishwasher (Kenmore 66513693N412)
10 diagrams166 parts
Parts Sections (10)
Diagram

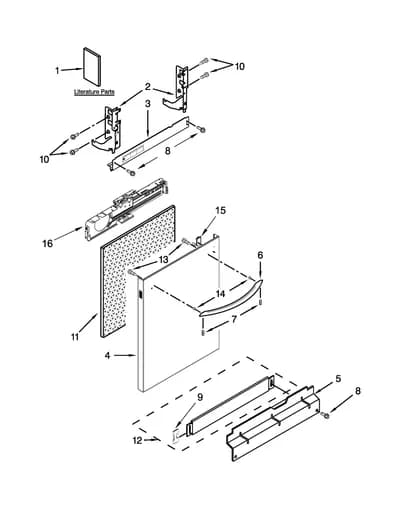

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10747788 Dishwasher Installation Manual | - |
| 1A | – | W10605147 Dishwasher Energy Guide | - |
| 1B | – | W10620228 Dishwasher Use and Care Guide | - |
| 1C | – | W10751166 TECH SHEET, ENGLISH | - |
| 1D | – | W10751168 TECH SHEET, FRENCH | - |
| 2 |  | W11612302replaces 8534854 Dishwasher Door Hinge | $77.34 PartSelect |
| 2A |  | W11612303replaces 8534853 Dishwasher Right Side Door Hinge Assembly | $60.05 Part Advantage |
| 3 |  | W10850371replaces W10726647 Dishwasher Vapor Barrier | $11.72 Part Advantage |
| 4 |  | W10620179NLA Dishwasher Door Outer Panel (Black) | Discontinued |
| 4A | | Dishwasher Door Outer Panel (White) | - |
| 4B | | W10839356replaces W10620182 Dishwasher Door Outer Panel | - |
| 5 |  | W11763736replaces W10195777 Dishwasher Access Panel | $16.47 Part Advantage |
| 5A |  | W10909066replaces W10195778 Dishwasher Access Panel | - |
| 6 | | WPW10380321replaces W10380321 Dishwasher Door Handle | - |
| 6A | | WPW10380322replaces W10380322 Dishwasher Door Handle | - |
| 6B | | WPW10380413replaces W10380413 Dishwasher Door Handle | - |
| 7 |  | WP8534008replaces 8534008 Dishwasher Screw | $2.20 Part Advantage |
| 8 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 8A |  | WPW10503549replaces 3400836 Dishwasher Screw | $2.22 Part Advantage |
| 9 |  | WP8269016replaces 8269016 Dishwasher Toe Panel Clip | $6.90 RepairClinic |
| 10 |  | WP3400071replaces 3400071 Dishwasher Control Panel Seal Screw | $2.30 Part Advantage |
| 11 |  | WPW10073520replaces W10073520 Dishwasher Outer Door Panel Insulation | $50.57 ApplianceParts Pro |
| 12 |  | W10871196replaces 8573286 Dishwasher Toe Panel | $66.43 Amazon |
| 12A |  | WP8573287replaces 8573287 Dishwasher Toe Panel | $74.95 ApplianceParts Pro |
| 13 |  | W10826179replaces W10316572 Dishwasher Screw | $2.30 Part Advantage |
| 14 |  | W11157086replaces W10195726 Dishwasher Door Handle Stud | $18.70 Part Advantage |

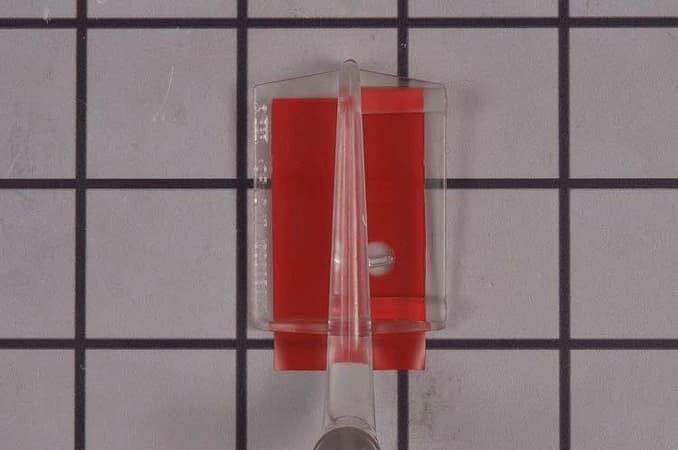

| 15 |  | Light Pipe | - |
| 16 |  | W11116870replaces W10641745 Dishwasher Control Board Connector Bracket | - |
