Model
Kenmore 66514063K012
Undercounter Dishwasher (Kenmore 66514063K012)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514063K012Undercounter Dishwasher (Kenmore 66514063K012)
11 diagrams188 parts
Parts Sections (11)
Diagram

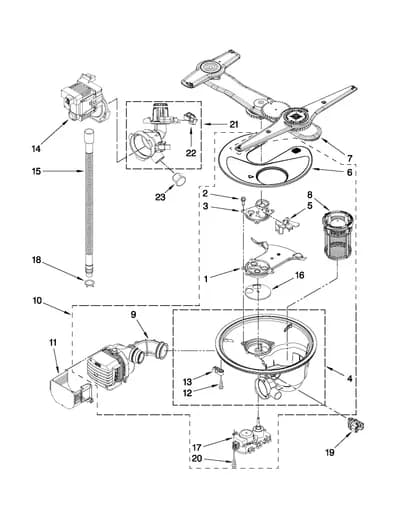

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 8579241NLA Dishwasher Sump Cap Cover | Discontinued |
| 2 | | Dishwasher Screw | - |
| 3 | | Dishwasher Accumulator Cover | - |
| 4 | | Dishwasher Sump | - |
| 5 | | 8579298NLA Dishwasher Lower Spray Arm Hub Retainer | Discontinued |
| 6 |  | WP8579253replaces 8579253 Dishwasher Filter | $84.68 RepairClinic |
| 7 |  | WPW10195601replaces W10195601 Dishwasher Spray Arm | $68.13 Part Advantage |
| 8 |  | W10872845replaces W10056425 Dishwasher Filter | $27.41 Part Advantage |
| 9 |  | W10168824NLA Dishwasher Fill Hose | Discontinued |
| 10 | | W10907619replaces W10322037 Dishwasher Pump and Motor Assembly | - |
| 11 |  | Dishwasher Pump Cover | - |
| 12 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 13 |  | WPW10372113replaces 8579289 Sump Tab | $11.33 Parts Dr |
| 14 |  | WPW10348269replaces W10084573 Dishwasher Drain Pump | $33.13 Part Advantage |
| 15 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 16 | | 8579251NLA Diffuser | Discontinued |

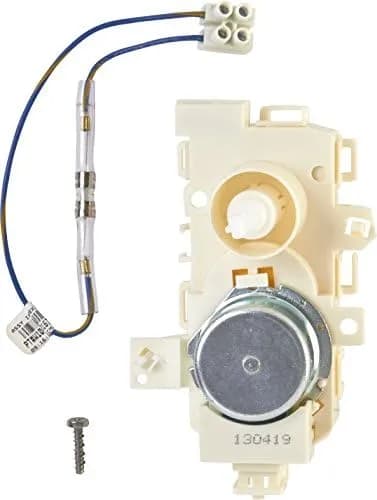

| 17 |  | W10155344replaces W10056349 Dishwasher Diverter Motor | $80.06 Part Advantage |
| 18 |  | WP356138replaces 356138 Clamp | $3.38 Part Advantage |
| 19 |  | WPW10705575replaces W10134017 Dishwasher Turbidity Sensor | $14.83 Part Advantage |
| 20 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 21 |  | WPW10179455replaces W10179455 Dishwasher Drain Pump Housing | $90.87 PartSelect |
| 22 |  | WPW10193605replaces W10193605 Dishwasher Drain Pump Cap | $11.71 ApplianceParts Pro |
| 23 | | W10179454NLA Dishwasher Drain Pump Housing Block | Discontinued |
