Model
Kenmore 66514312N412
Dishwasher (Kenmore 66514312N412)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514312N412Dishwasher (Kenmore 66514312N412)
10 diagrams126 parts
Parts Sections (10)
Diagram

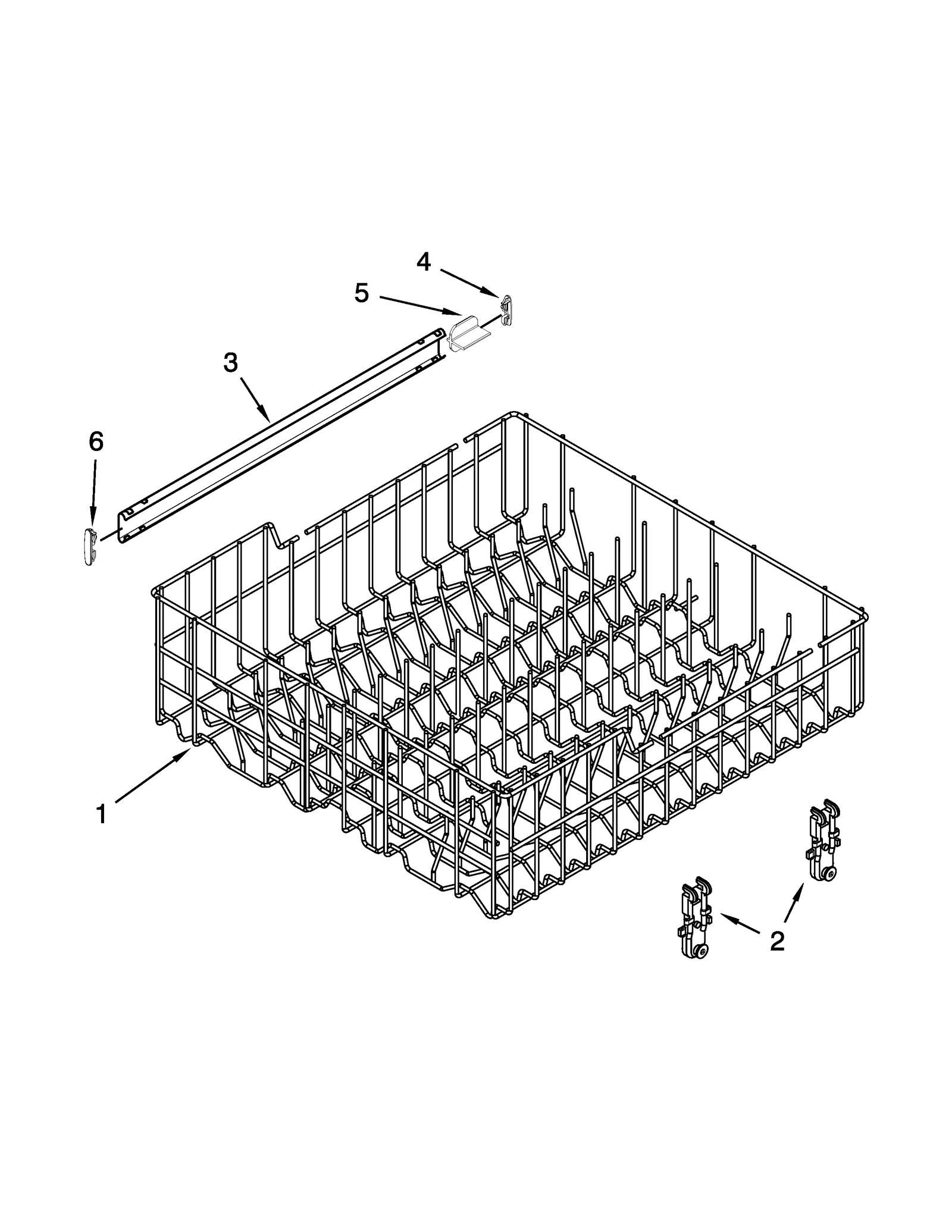

UPPER RACK AND TRACK PARTS
Parts in UPPER RACK AND TRACK PARTS
6 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W11752368replaces W10164198 Dishrack | $155.79 ApplianceParts Pro |
| 2 |  | W10888592replaces 8575281 Dishwasher Dishrack Wheel | $24.06 Part Advantage |
| 3 |  | WP3385089replaces 3385089 Dishwasher Dishrack Slide Rail | $30.30 Part Advantage |
| 4 |  | WP8565925replaces 8565925 Dishwasher Dishrack Slide Rail Stop, Upper | $3.45 Part Advantage |
| 5 |  | W10306228NLA Dishwasher Spacer | Discontinued |
| 6 | | WP8565925replaces W10082861 Dishwasher Dishrack Slide Rail Stop, Upper | $3.45 Part Advantage |
