Model
Kenmore 66514522N611
Dishwasher (Kenmore 66514522N611)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514522N611Dishwasher (Kenmore 66514522N611)
10 diagrams163 parts
Parts Sections (10)
Diagram

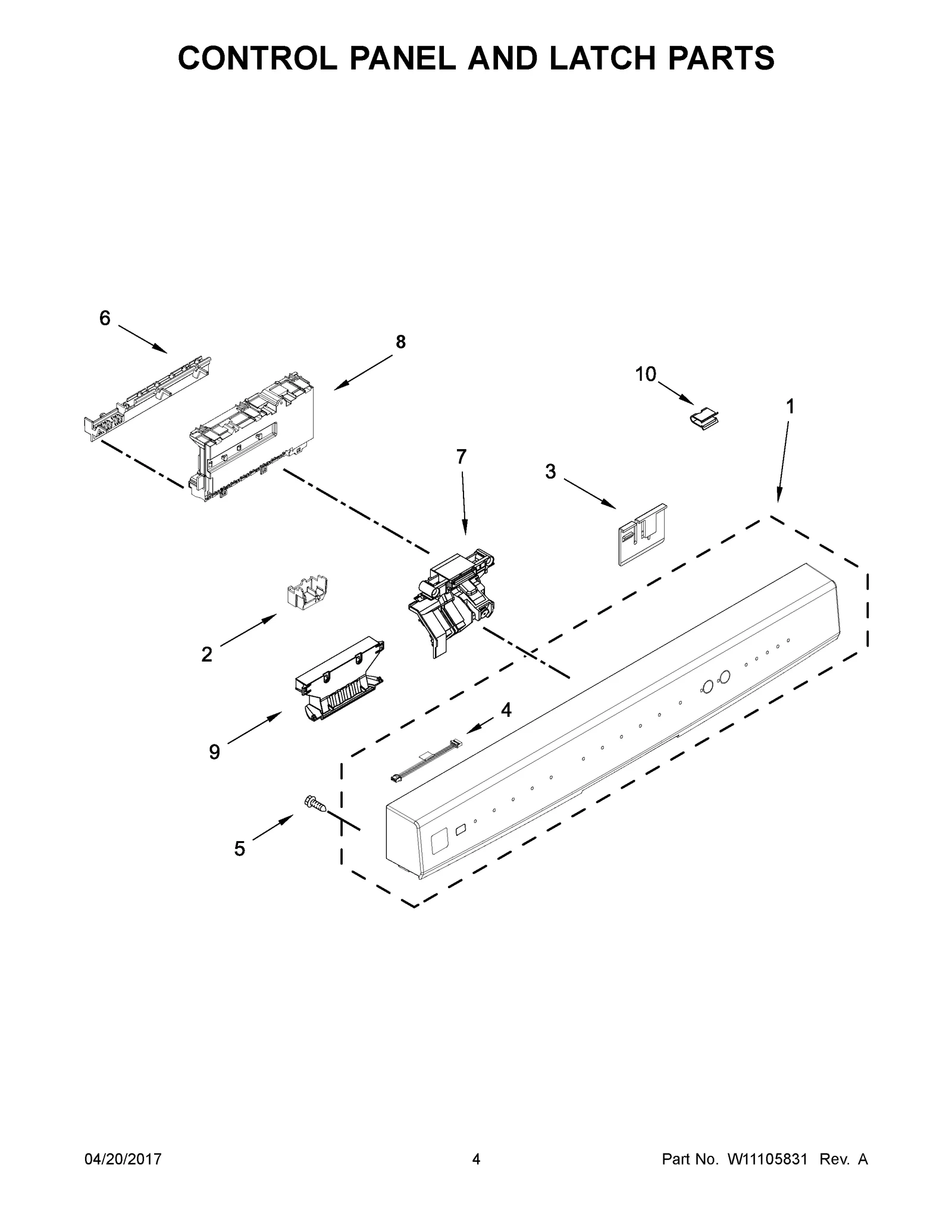

CONTROL PANEL AND LATCH PARTS
Parts in CONTROL PANEL AND LATCH PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W11106392replaces W10905440 Console Assembly | - |
| 1A | | W11106393replaces W10905438 Console Assembly | - |
| 1B |  | W11106394replaces W10905439 Console Assembly | - |
| 2 |  | W11305293replaces W10825638 YODA2 CONNEC | $142.25 Parts Dr |
| 3 |  | W11256107replaces W10195237 Dishwasher Control Board Clip | $23.60 PartSelect |
| 4 |  | Jumper Control | $26.95 ApplianceParts Pro |
| 5 |  | WPW10348408replaces W10348408 Dishwasher Screw | $7.43 ApplianceParts Pro |
| 6 | | W11305293replaces W10825369 YODA2 BRACE | $142.25 Parts Dr |
| 7 |  | WPW10653840replaces W10653840 Dishwasher Door Latch | $12.94 Part Advantage |

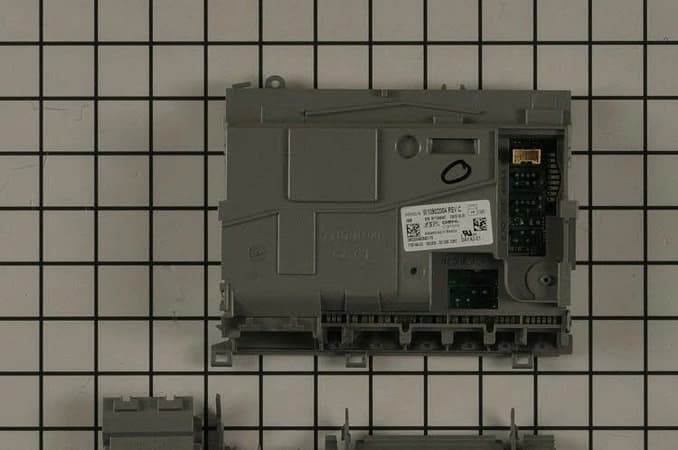

| 8 |  | W11087203replaces W10902004 Electronic Control | $164.77 PartSelect |
| 9 | | HANDLE POCKET | - |
| 10 |  | W10815836replaces W10485367 Dishwasher Control Panel Clip | $2.30 Part Advantage |
