Model
Kenmore 66514552N610
Dishwasher (Kenmore 66514552N610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514552N610Dishwasher (Kenmore 66514552N610)
10 diagrams156 parts
Parts Sections (10)
Diagram

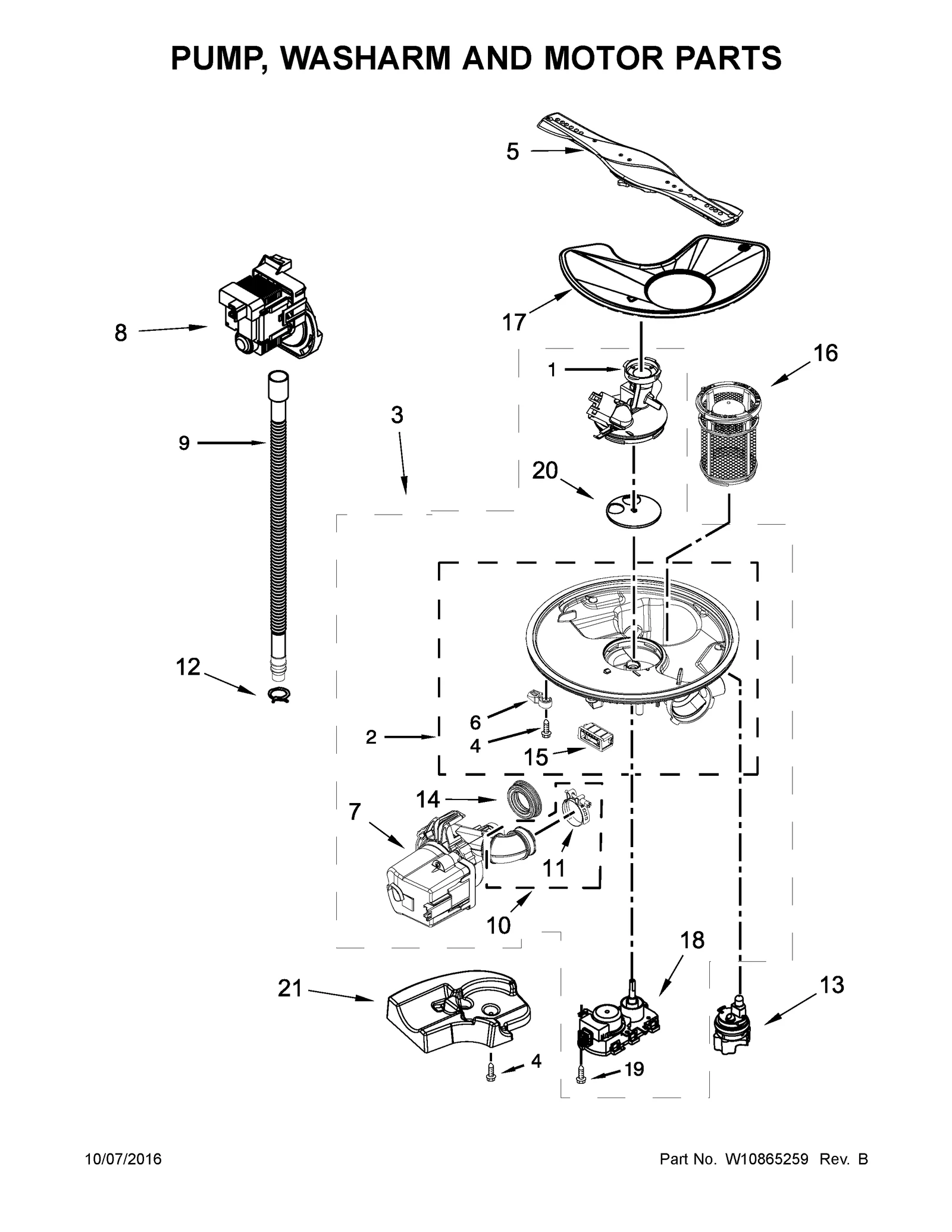

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W11573369replaces W10500299 Dishwasher Pump Outlet and Seal | $12.29 Parts Dr |
| 2 |  | WPW10455268replaces W10455268 Dishwasher Sump and Seal Assembly | $72.65 Part Advantage |
| 3 |  | W11230103replaces W10620220 Dishwasher Sump and Motor Assembly | $117.32 Part Advantage |
| 4 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 5 |  | WPW10491331replaces W10500354 Dishwasher Spray Arm, Lower | $43.89 Part Advantage |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | W11032770replaces W10885542 MOTOR (ALSO ORDER ITEMS 10 & 14) | $137.07 Parts Dr |
| 8 |  | WPW10348269replaces W10348269 Dishwasher Drain Pump | $33.13 Part Advantage |
| 9 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 10 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
| 11 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |
| 12 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |
| 13 |  | WPW10705575replaces W10705575 Dishwasher Turbidity Sensor | $14.83 Part Advantage |
| 14 |  | WPW10538166replaces W10538166 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 15 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 16 |  | W10872845replaces W10789806 FILTER CUP A | $27.41 Part Advantage |
| 17 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
| 18 |  | W10537869replaces W10849439 Dishwasher Diverter Motor | $41.24 Part Advantage |
| 19 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 20 |  | WPW10476221replaces W10476221 Dishwasher Pump Diverter Disc | $21.45 PartSelect |
| 21 |  | W10350335replaces W10300776 Dishwasher Sump Damper | - |
