Model
Kenmore 66514565N610
Dishwasher (Kenmore 66514565N610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514565N610Dishwasher (Kenmore 66514565N610)
10 diagrams161 parts
Parts Sections (10)
Diagram

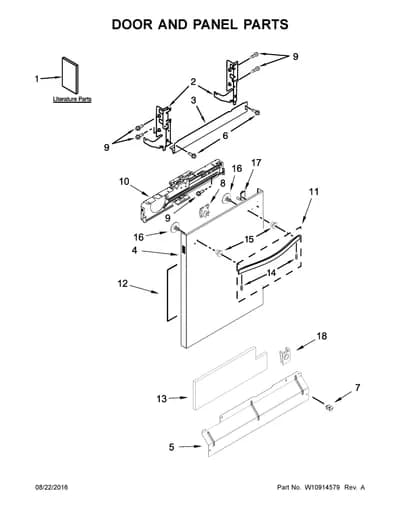

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10747788 Dishwasher Installation Manual | - |
| 1A | – | W10858162 Energy Guide | - |
| 1B | – | W10859943 Use and Care Guide | - |
| 1C | – | W10838719 TECH SHEET, ENGLISH | - |
| 1D | – | W10859290 TECH SHEET, FRENCH | - |
| 2 |  | W11612302replaces 8534854 Dishwasher Door Hinge | $77.34 PartSelect |
| 2A |  | W11612303replaces 8534853 Dishwasher Right Side Door Hinge Assembly | $60.05 Part Advantage |
| 3 |  | W10850371replaces W10844384 BARRIER VAPOR | $11.72 Part Advantage |
| 4 |  | W10920100replaces W10866637 FRONT PANEL (INCLUDES 8 & 17) (STAINLESS) | $175.95 ApplianceParts Pro |
| 5 |  | W11763736replaces W10852733 Access Panel | $16.47 Part Advantage |
| 6 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 7 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 8 |  | Ikea Dishwasher Nut | $7.92 Parts Dr |
| 9 |  | WP3400071replaces 3400071 Dishwasher Control Panel Seal Screw | $2.30 Part Advantage |
| 10 |  | W11116870replaces W10641745 Dishwasher Control Board Connector Bracket | - |
| 11 |  | W10872103replaces W10786140 Package Assembly Handle | $102.72 Parts Dr |
| 12 |  | WPW10073520replaces W10073520 Dishwasher Outer Door Panel Insulation | $50.57 ApplianceParts Pro |
| 13 | | Insulation | - |
| 14 |  | WP8534008replaces 8534008 Dishwasher Screw | $2.20 Part Advantage |
| 15 |  | W11157086replaces W10195726 Dishwasher Door Handle Stud | $18.70 Part Advantage |
| 16 |  | W10826179replaces W10316572 Dishwasher Screw | $2.30 Part Advantage |

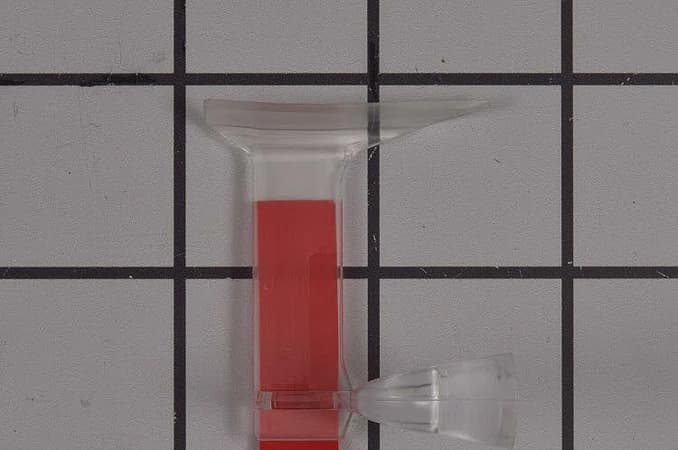

| 17 |  | W10901145replaces W10854504 LIGHTPIPE AS | $23.30 Parts Dr |
| 18 |  | W10910629replaces W10853886 8-18 WIDE U- | $5.95 ApplianceParts Pro |
