Model
Kenmore 66514565N611
Dishwasher (Kenmore 66514565N611)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514565N611Dishwasher (Kenmore 66514565N611)
10 diagrams158 parts
Parts Sections (10)
Diagram

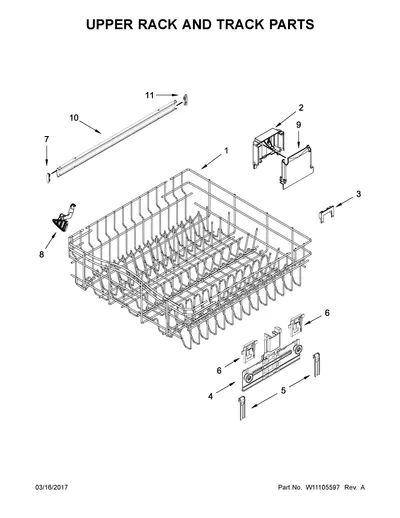

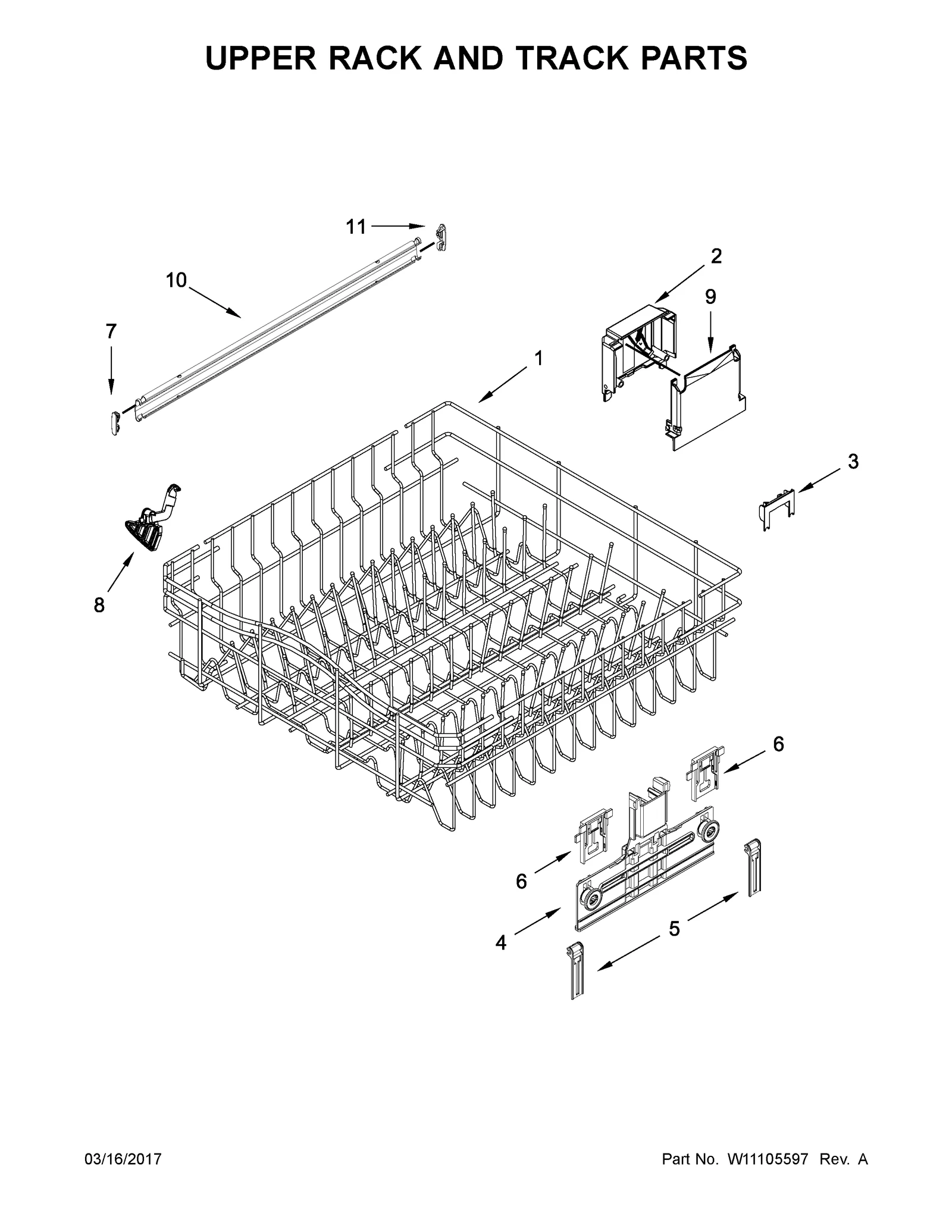

UPPER RACK AND TRACK PARTS
Parts in UPPER RACK AND TRACK PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10350382replaces W10350382 Dishwasher Dishrack, Upper | $140.00 Part Advantage |
| 2 |  | WPW10195372replaces W10195372 Dishwasher Dishrack Adjuster Housing | $52.98 Part Advantage |
| 2A |  | WPW10195373replaces W10195373 Dishwasher Dishrack Adjuster Housing, Right | $30.42 Part Advantage |
| 3 |  | WPW10250160replaces W10250160 Dishwasher Upper Dishrack Adjuster Clip | $25.54 Part Advantage |
| 4 |  | W10712395replaces W10350375 Dishwasher Rack Adjuster | $32.36 Part Advantage |
| 5 |  | WPW10195839replaces W10195839 Dishwasher Dishrack Adjuster | $18.12 Part Advantage |
| 6 |  | WPW10195840replaces W10195840 Dishwasher Adjuster Positioner Clip | $24.64 Part Advantage |
| 7 |  | WP8565925replaces W10082861 Dishwasher Dishrack Slide Rail Stop, Upper | $3.45 Part Advantage |
| 8 |  | W10919676replaces W10752617 Dispenser Guard Clip | $4.62 Part Advantage |
| 9 |  | WPW10250162replaces W10250162 Dishwasher Dishrack Adjuster Cover | $3.01 Part Advantage |
| 10 |  | WP3385089replaces 3385089 Dishwasher Dishrack Slide Rail | $30.30 Part Advantage |
| 11 | | WP8565925replaces 8565925 Dishwasher Dishrack Slide Rail Stop, Upper | $3.45 Part Advantage |
