Model
Kenmore 66514569N611
Dishwasher (Kenmore 66514569N611)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514569N611Dishwasher (Kenmore 66514569N611)
10 diagrams164 parts
Parts Sections (10)
Diagram

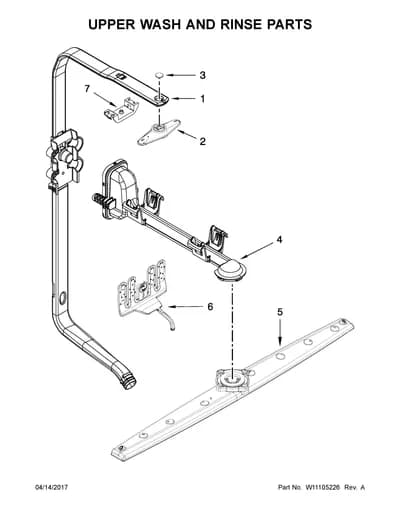

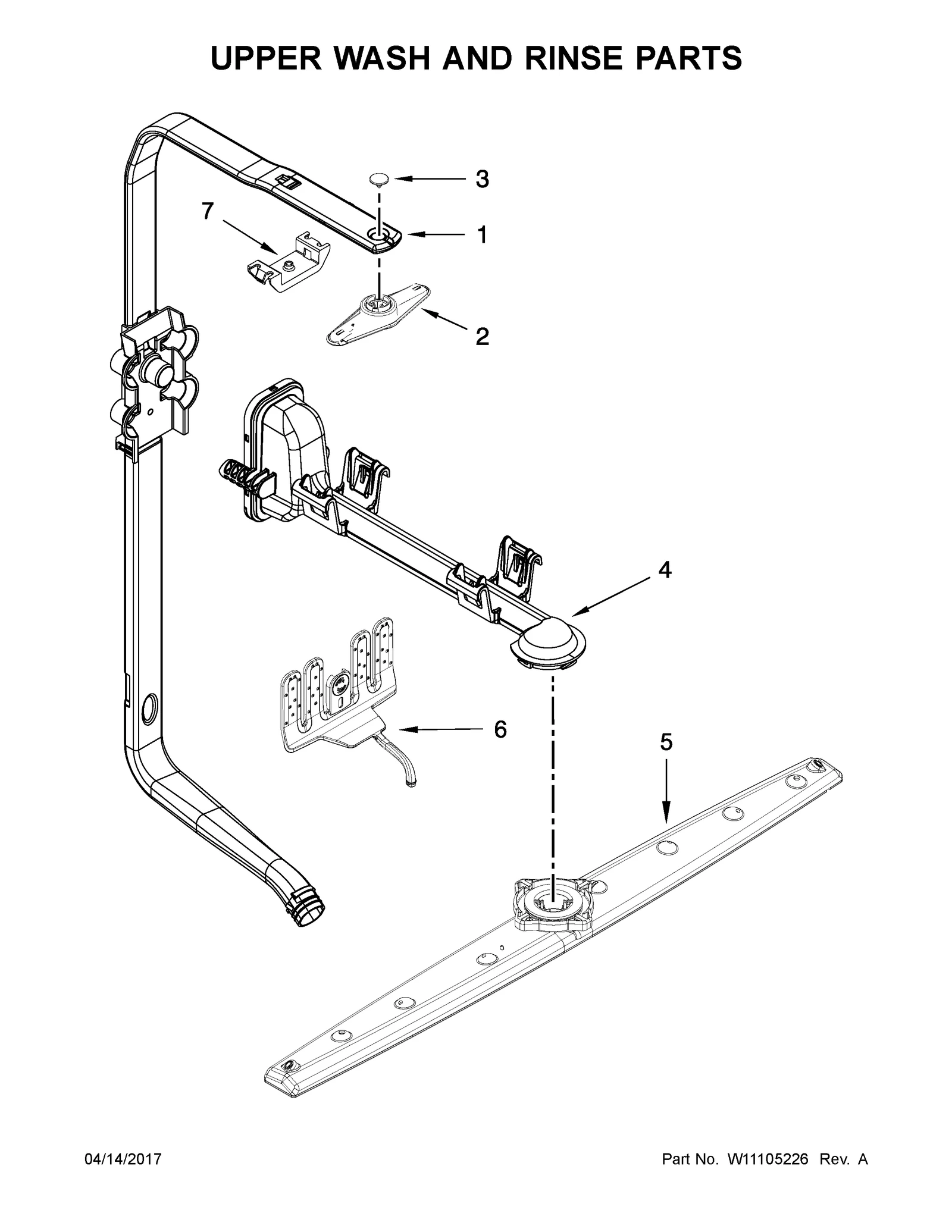

UPPER WASH AND RINSE PARTS
Parts in UPPER WASH AND RINSE PARTS
7 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10340741replaces W10340741 Dishwasher Water Feed Tube | $65.74 ApplianceParts Pro |
| 2 |  | WPW10327455replaces W10327455 Dishwasher Spray Arm | $37.98 Part Advantage |
| 3 |  | WP3400918replaces 3400918 Dishwasher Upper Spray Arm Retainer | $14.60 Part Advantage |
| 4 |  | WPW10323192replaces W10323192 Dishwasher Spray Arm Manifold | $63.64 PartSelect |
| 5 |  | WPW10498900replaces W10376693 Dishwasher Spray Arm | $19.51 Part Advantage |
| 6 |  | Dishwasher Turbo Wash Manifold Assembly | - |
| 7 |  | W10837623replaces W10195690 Dishwasher Rear Feed Tube Bracket | $11.27 Parts Dr |
