Model
Kenmore 66515023K113
Undercounter Dishwasher (Kenmore 66515023K113)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66515023K113Undercounter Dishwasher (Kenmore 66515023K113)
12 diagrams119 parts
Parts Sections (12)
Diagram

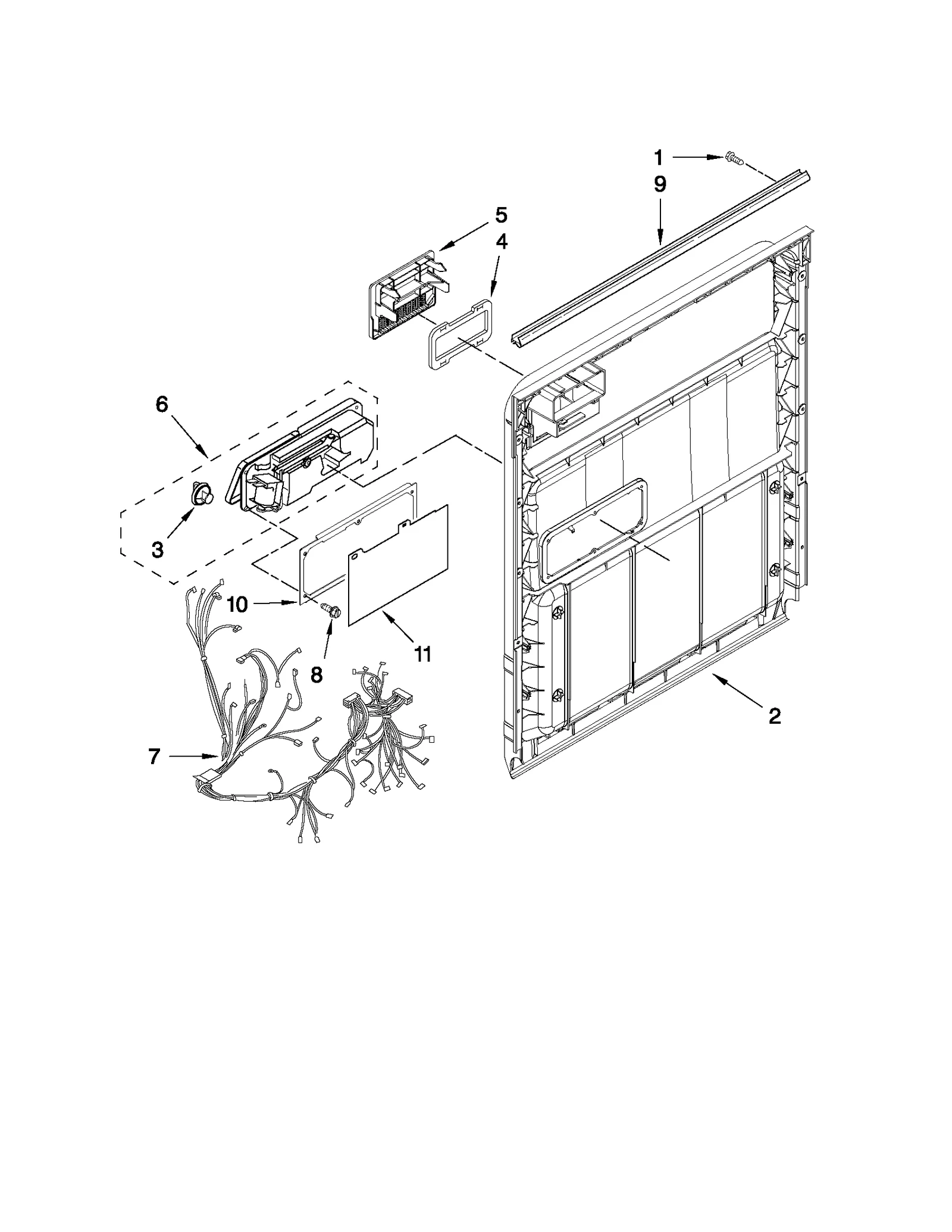

INNER DOOR PARTS
Parts in INNER DOOR PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10348413replaces W10348413 Dishwasher Screw | $2.66 Part Advantage |
| 2 |  | WPW10254547replaces W10254547 Dishwasher Door Inner Panel Assembly | $97.61 Parts Dr |
| 3 |  | W10864394replaces W10082857 Dishwasher Rinse-Aid Dispenser Cap | $12.92 Parts Dr |
| 4 |  | WPW10254545replaces W10254545 Gasket | $11.71 ApplianceParts Pro |
| 5 |  | WPW10254548replaces W10254548 Deflector | $29.01 Parts Dr |
| 6 |  | WPW10300737replaces W10300737 Dishwasher Detergent Dispenser Assembly | $95.58 Part Advantage |
| 7 |  | W10496084replaces W10363701 Dishwasher Wire Harness | - |
| 8 |  | WPW10177098replaces W10177098 Dishwasher Screw | $3.31 Part Advantage |
| 9 |  | WP8269296replaces 8269296 Dishwasher Control Panel Seal | $75.95 ApplianceParts Pro |
| 10 |  | WPW10462232replaces W10341423 Dispenser Bracket | $11.10 Part Advantage |
| 11 |  | Dishwasher Control Board Cover | - |
