Model
Kenmore 66515042K110
Undercounter Dishwasher (Kenmore 66515042K110)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66515042K110Undercounter Dishwasher (Kenmore 66515042K110)
12 diagrams151 parts
Parts Sections (12)
Diagram

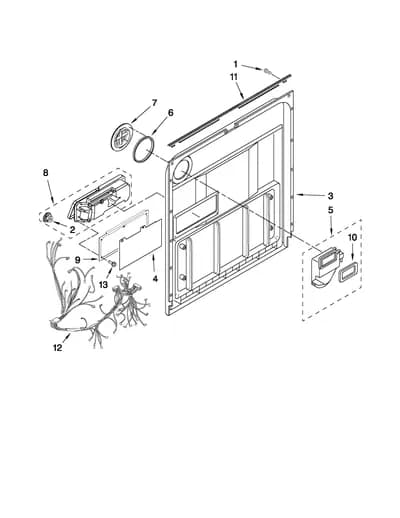

INNER DOOR PARTS
Parts in INNER DOOR PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10348413replaces W10348413 Dishwasher Screw | $2.66 Part Advantage |
| 2 |  | W10864394replaces W10082857 Dishwasher Rinse-Aid Dispenser Cap | $12.92 Parts Dr |

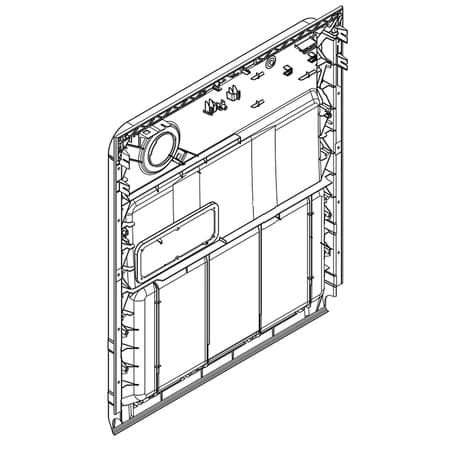

| 3 |  | Dishwasher Inner Door | Discontinued |
| 4 |  | WPW10482094replaces W10482094 Cover | - |
| 5 |  | WPW10428211replaces W10428211 Dishwasher Vent Assembly | $55.00 Part Advantage |
| 6 |  | WP8269259replaces 8269259 Dishwasher Vent Gasket | $26.73 Part Advantage |
| 7 |  | WPW10274926replaces W10274926 Deflector | $19.12 Parts Dr |
| 8 |  | WPW10195175replaces W10195173 Dishwasher Detergent Dispenser Assembly | $46.71 Part Advantage |
| 9 |  | WPW10462232replaces W10462232 Dishwasher Detergent Dispenser Bracket | $11.10 Part Advantage |
| 10 | | WPW10428211replaces W10329927 Seal | $55.00 Part Advantage |
| 11 |  | W10837566replaces W10274923 Seal | $33.91 Parts Dr |
| 12 |  | WPW10496088replaces W10358240 Dishwasher Wire Harness | - |
| 13 |  | WPW10177098replaces W10177098 Dishwasher Screw | $3.31 Part Advantage |
