Model
Kenmore 66515042K112
Undercounter Dishwasher (Kenmore 66515042K112)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66515042K112Undercounter Dishwasher (Kenmore 66515042K112)
12 diagrams147 parts
Parts Sections (12)
Diagram

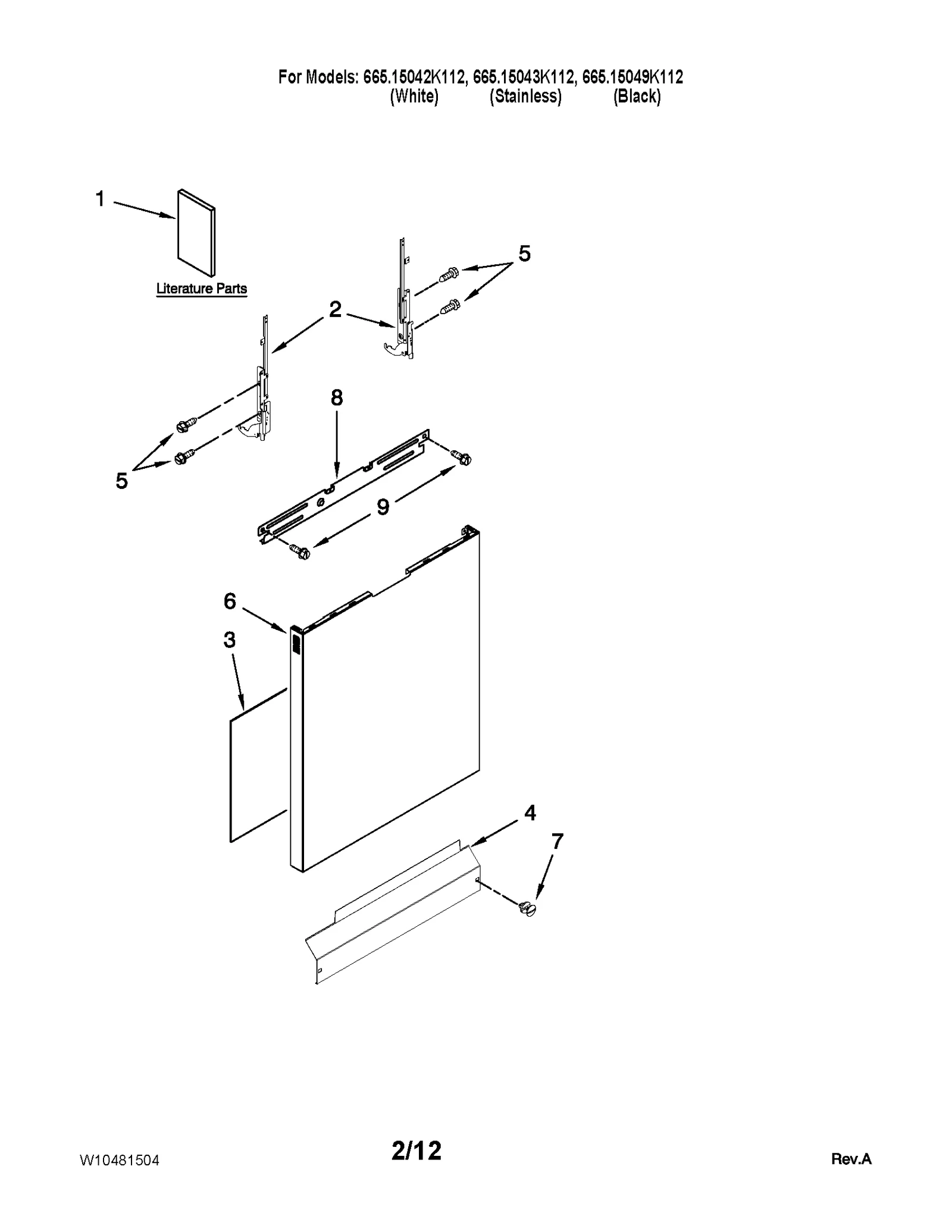

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10435038 Dishwasher Installation Manual | - |
| 1A | – | W10300681 Dishwasher Energy Guide | - |
| 1B | – | W10350364 Dishwasher Owner's Manual | - |
| 1C | – | W10350140 Technical Sheet | - |
| 1D | – | W10350141 Technical Sheet | - |
| 2 |  | W11613573replaces W10274922 Door Hinge | $41.95 ApplianceParts Pro |
| 2A |  | W11613572replaces W10274921 Door Hinge | $33.01 Parts Dr |
| 3 |  | WPW10073520replaces W10073520 Dishwasher Outer Door Panel Insulation | $50.57 ApplianceParts Pro |

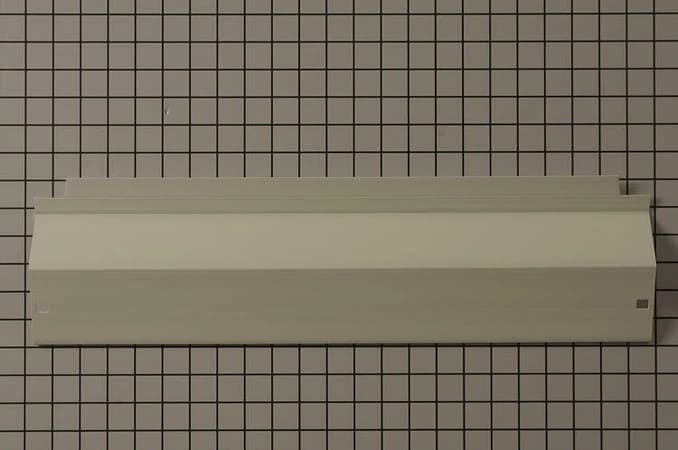

| 4 |  | WPW10441013replaces W10441013 Dishwasher Toe Panel | $34.27 Part Advantage |
| 4A |  | WPW10441014replaces W10441014 Dishwasher Access Panel | - |
| 5 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
| 6 |  | W10321412NLA Dishwasher Door Panel | Discontinued |
| 6A | | W10321410NLA Dishwasher Door Panel | Discontinued |
| 6B | | W10321409NLA Dishwasher Stainless Full Front Door Panel | Discontinued |
| 7 |  | WPW10503548replaces W10331789 Retainer | $9.15 Part Advantage |
| 7A |  | WPW10503549replaces W10331793 Retainer | $2.22 Part Advantage |
| 8 |  | W10850371replaces W10195120 Brace | $11.72 Part Advantage |
| 9 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
