Model
Kenmore 66517152K211
Undercounter Dishwasher (Kenmore 66517152K211)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66517152K211Undercounter Dishwasher (Kenmore 66517152K211)
12 diagrams136 parts
Parts Sections (12)
Diagram

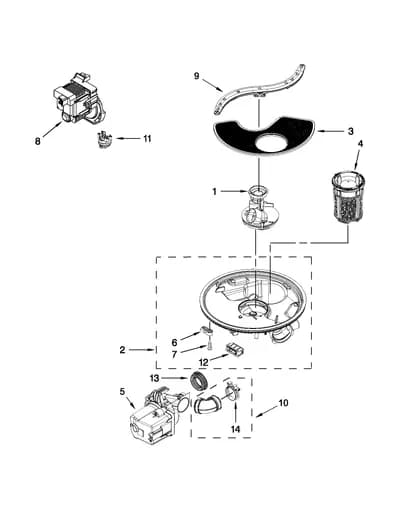

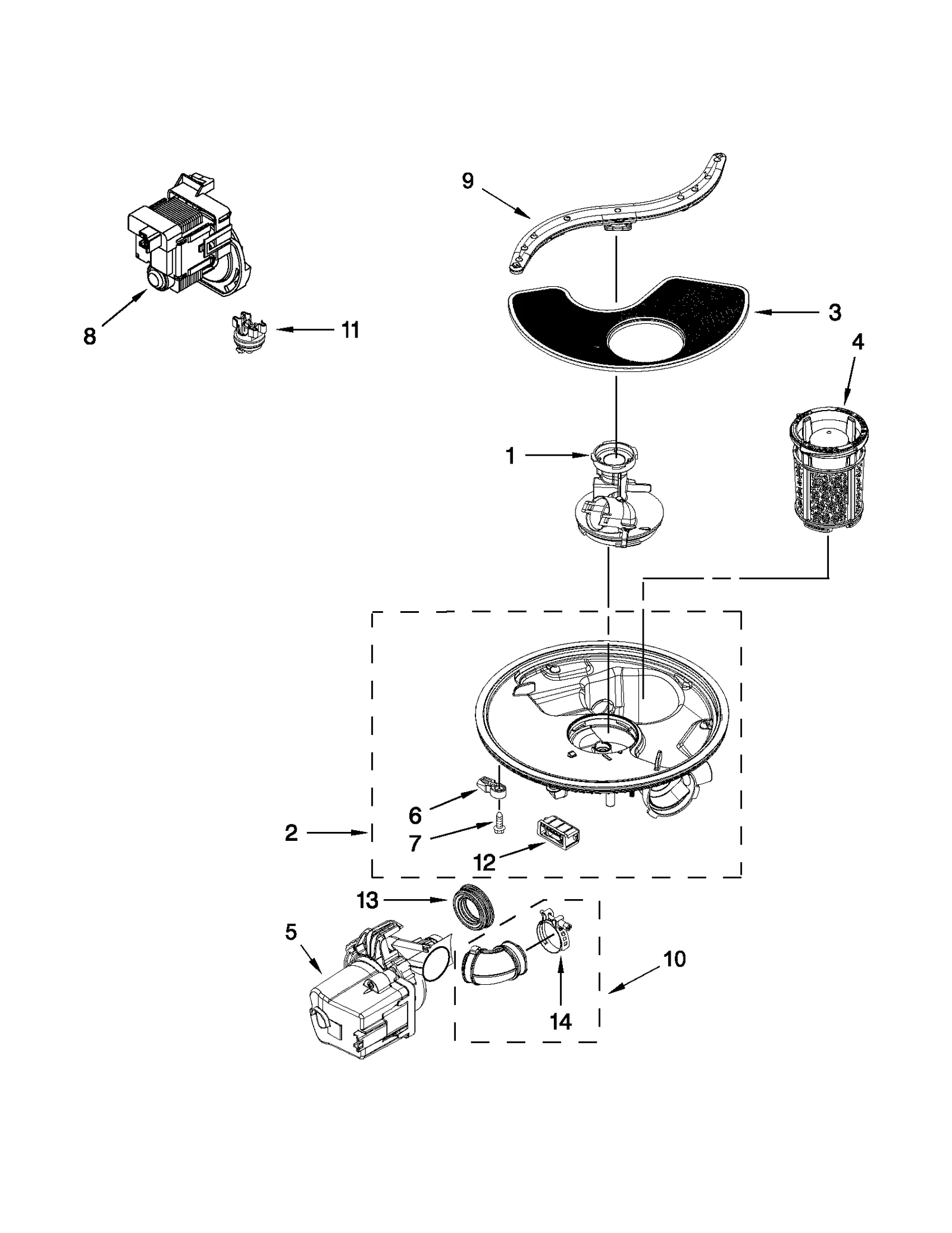

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10455271replaces W10455271 Cover | $10.94 Part Advantage |
| 2 |  | WPW10482462replaces W10482462 Dishwasher Sump and Seal Assembly | $99.18 Part Advantage |
| 3 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
| 4 |  | W10872845replaces W10465378 Dishwasher Filter | $27.41 Part Advantage |
| 5 |  | W11133712replaces W10510666 Dishwasher Pump Motor Assembly | $151.68 Part Advantage |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 8 |  | WPW10348269replaces W10348269 Dishwasher Drain Pump | $33.13 Part Advantage |
| 9 |  | WPW10491331replaces W10342793 Dishwasher Spray Arm | $43.89 Part Advantage |
| 10 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
| 11 |  | WPW10705575replaces W10134017 Dishwasher Turbidity Sensor | $14.83 Part Advantage |
| 12 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 13 |  | WPW10538166replaces W10538166 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 14 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |
