Model
Kenmore 66517152K212
Undercounter Dishwasher (Kenmore 66517152K212)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66517152K212Undercounter Dishwasher (Kenmore 66517152K212)
12 diagrams136 parts
Parts Sections (12)
Diagram

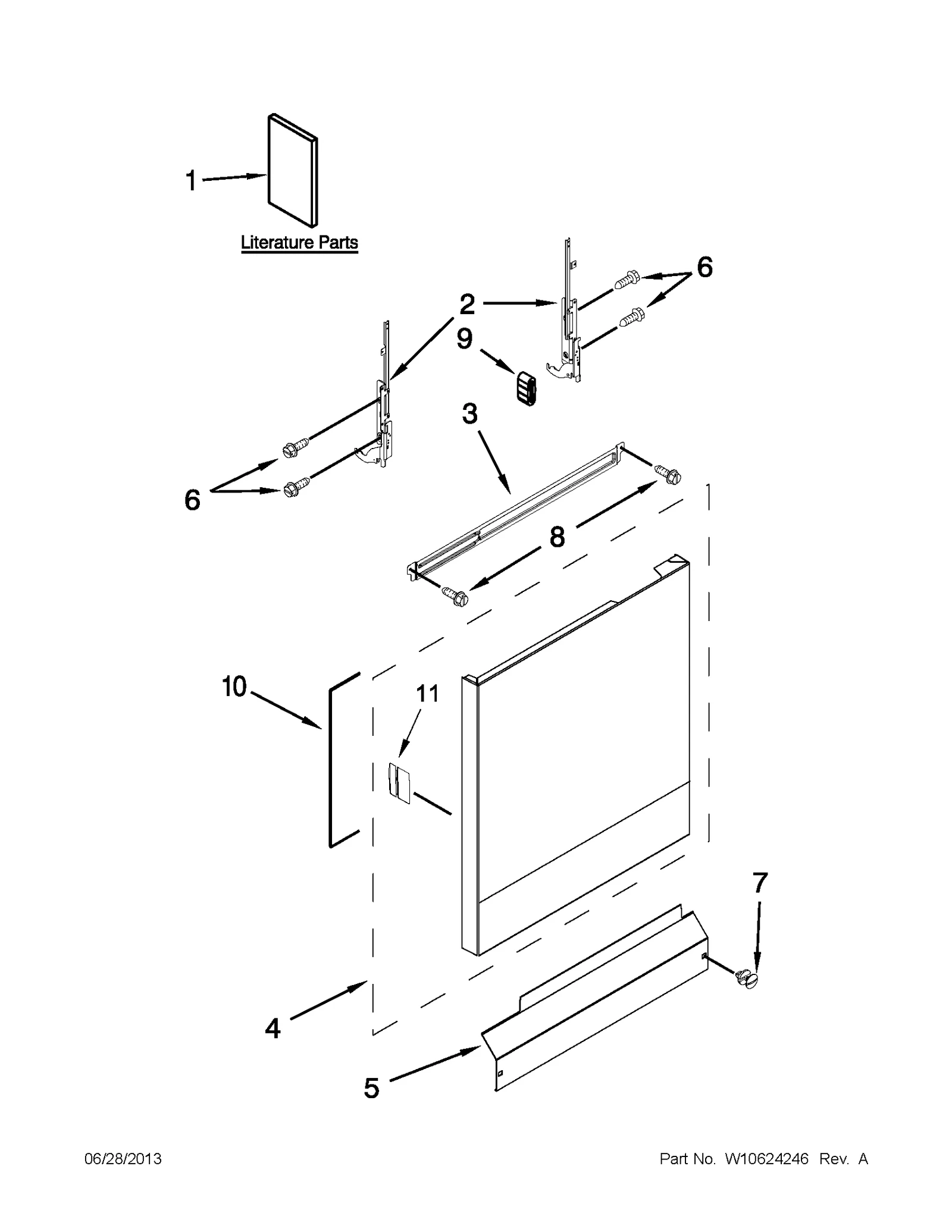

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10275511 Dishwasher Installation Instructions | - |
| 1A | – | W10506208 Dishwasher Energy Guide | - |
| 1B | – | W10596255 Use and Care Guide | - |
| 1C | – | W10590887 TECH SHEET, ENGLISH | - |
| 1D | – | W10590888 TECH SHEET, FRENCH | - |
| 2 |  | W11613573replaces W10274922 Door Hinge | $41.95 ApplianceParts Pro |
| 2A |  | W11613572replaces W10274921 Door Hinge | $33.01 Parts Dr |
| 3 |  | W10850371replaces W10195120 Brace | $11.72 Part Advantage |
| 4 |  | W10299777NLA Dishwasher Door Outer Panel | Discontinued |
| 4A |  | WPW10299776replaces W10299776 Dishwasher Panel (White) | $84.00 ApplianceParts Pro |
| 5 |  | Dishwasher Toe Panel (Black) | - |
| 6 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
| 7 |  | WPW10503548replaces W10503548 Dishwasher Retainer Clip | $9.15 Part Advantage |
| 8 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 9 |  | WP8268961replaces 8268961 Dishwasher Hinge Friction Sleeve | $3.20 Part Advantage |
| 10 |  | WPW10073520replaces W10073520 Dishwasher Outer Door Panel Insulation | $50.57 ApplianceParts Pro |
| 11 |  | Protector | $22.67 ApplianceParts Pro |
