Model
Amana ABB2227VEB10
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ABB2227VEB10Refrigerator
9 diagrams217 parts
Parts Sections (9)
Diagram

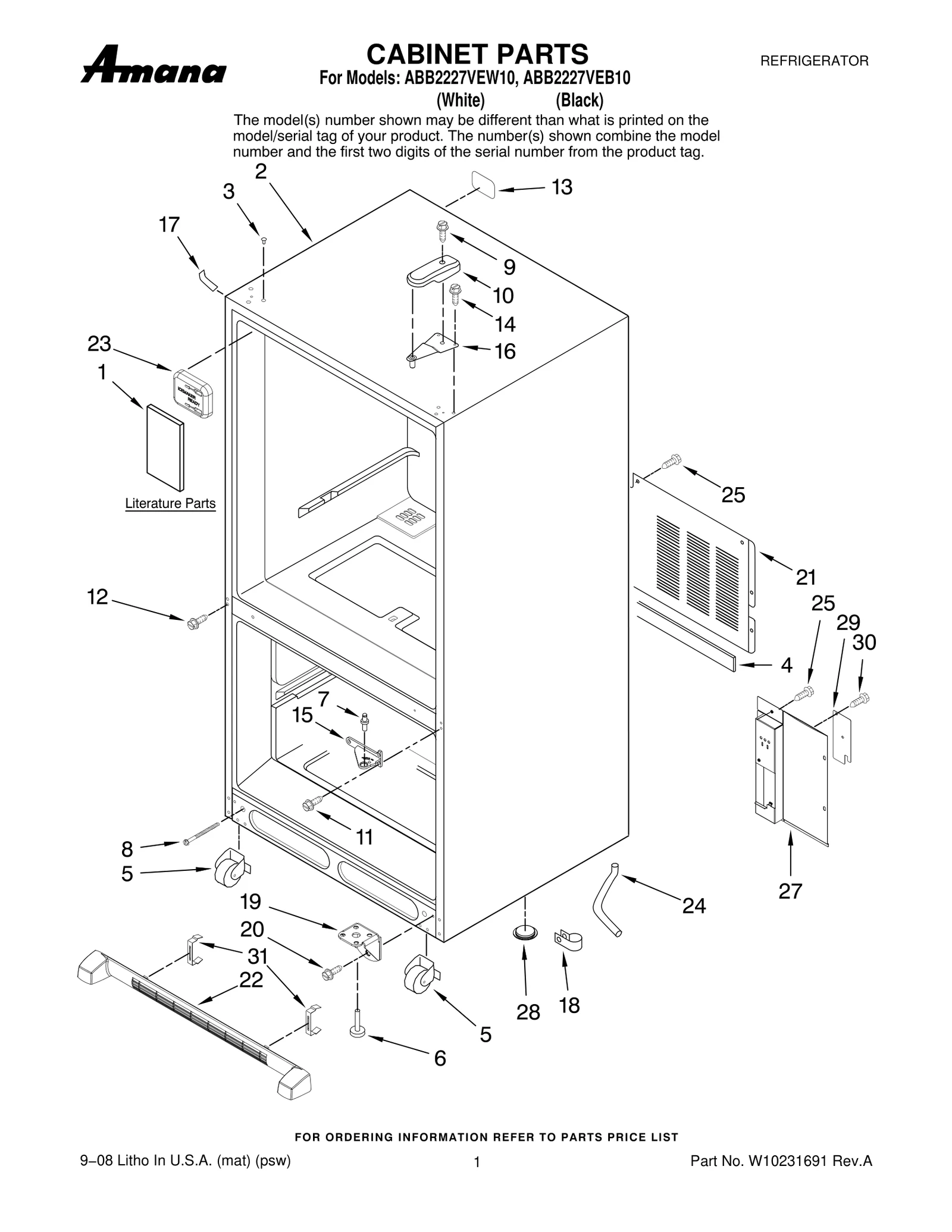

CABINET PARTS
Parts in CABINET PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10175445 Use & Care Guide | - |
| 1 | – | W10212713 Energy Guide | - |
| 1 | – | W10165418 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP67001130replaces 67001130 Plug, Button (3) — White | $5.00 RepairClinic |
| 3 |  | WP12246608replaces 67001131 Plug, Button (3) — Black | $3.38 Part Advantage |
| 4 | – | B5759649 Gasket | - |
| 5 |  | 12580304NLA Roller Assembly | Discontinued |
| 6 |  | W11177593replaces 67003868 Foot, Brake | $6.48 Part Advantage |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 |  | 71003131replaces 67006611 Bolt, Adjusting | $6.21 Parts Dr |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | Cover, Hinge — White | - |
| 10 |  | Cover, Hinge — Black | - |
| 11 |  | WP489349replaces 67005822 Screw | $2.30 Part Advantage |
| 12 |  | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 13 | | W11685757replaces 67005064 Label, Fl Tb Plug | $3.95 ApplianceParts Pro |
| 14 | | WP489349replaces 67006303 Screw | $2.30 Part Advantage |
| 15 | | W11689473replaces 67006960 Hinge, Center — White | $44.23 PartSelect |
| 15 |  | WP12607104EDreplaces 67007043 Hinge, Center — Black | $53.11 Parts Dr |
| 16 |  | WP12566606EDreplaces 12566606ED Hinge, Top | $18.97 Parts Dr |
| 17 | | Cover, Corner — White | $13.72 RepairClinic |
| 17 |  | Cover, Corner — Black | - |
| 18 | – | W10157973 Clip, Drain | - |
| 19 |  | 12906303WDreplaces W10208641 Hinge Bottom | $27.27 Parts Dr |
| 20 |  | Screw | $3.74 Parts Dr |
| 21 | – | 67006102 Cover, Unit | - |
| 22 |  | WPW10534161replaces 67007004 Grille Assembly — White | $68.86 PartSelect |
| 22 |  | WPW10534162replaces 67006954 Grille Assembly — Black | $36.95 Part Advantage |
| 23 |  | WP67001098replaces 67001098 Cover, Fl Tb | $4.95 ApplianceParts Pro |
| 24 |  | Tube, Drain | - |
| 25 |  | Screw (9) | $2.30 Part Advantage |
| 27 | | Cover, Water Valve | - |
| 28 |  | Plug Button | - |
| 29 | | Plate, Cover | - |
| 30 |  | WP489128replaces 67006662 Screw | $5.96 Parts Dr |
| 31 | – | 12627302 Clip, Grille | - |
