Model
Whirlpool ABC2037DTS14
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
ABC2037DTS14Refrigerator
9 diagrams237 parts
Parts Sections (9)
Diagram

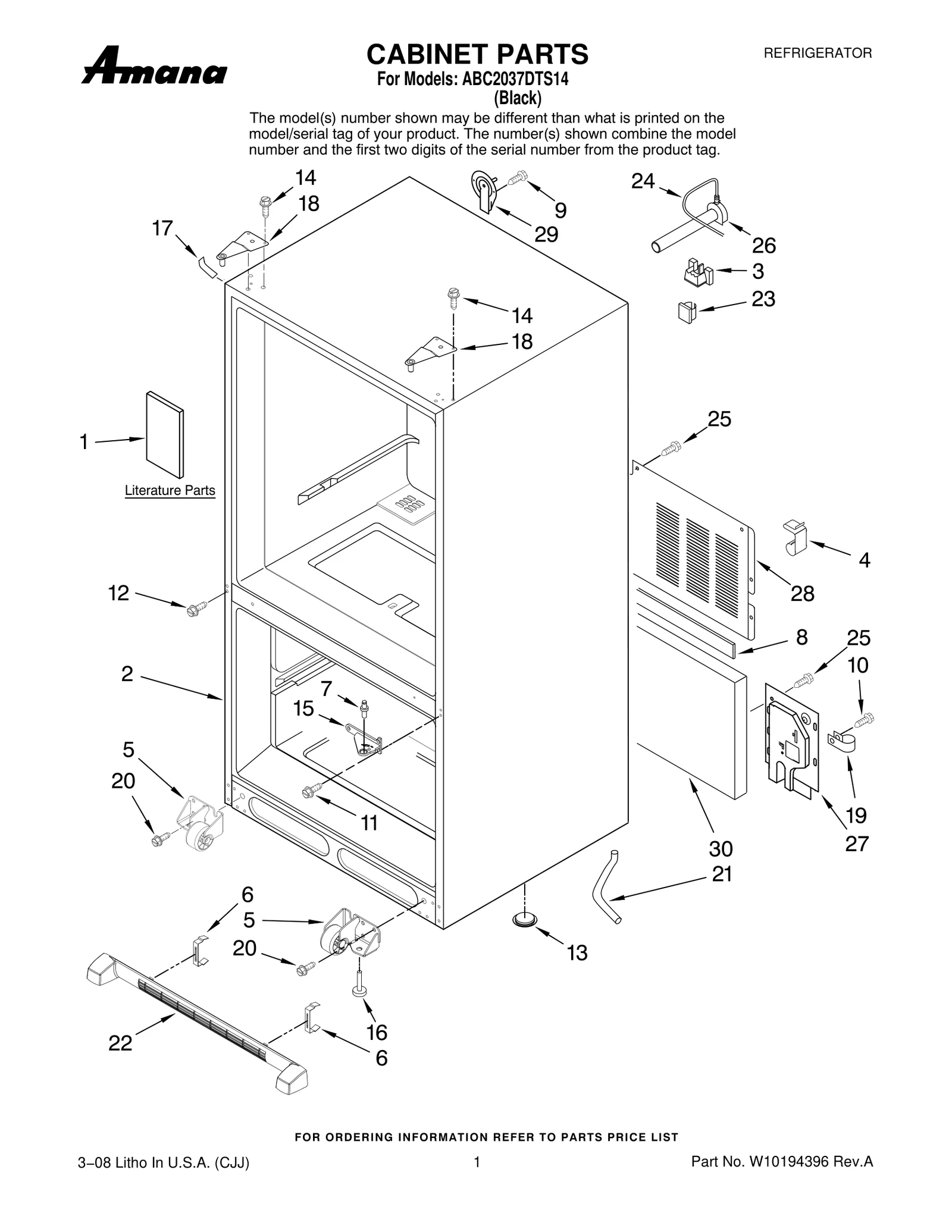

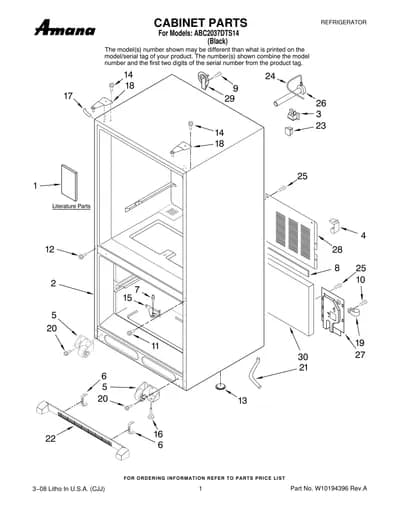

CABINET PARTS
Parts in CABINET PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10137539 Owners Manual | - |
| 1 | – | 67004854 Energy Tag | - |
| 1 | – | 67006716 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP12777701replaces 67004092 Block, Filter | - |
| 4 |  | Clip, Water Line | - |

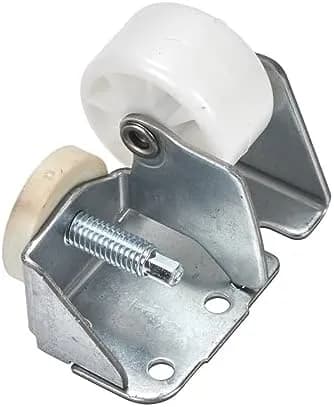

| 5 |  | WPW10515763replaces W10130460 Roller Foot Assembly — Left | $36.59 Part Advantage |
| 5 |  | WPW10515762replaces W10130459 Roller Foot Assembly — Right | $36.26 Part Advantage |
| 6 | – | 12627302 Clip, Grille | - |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 | – | B5759649 Gasket | - |
| 9 |  | WP98165replaces 67006287 Screw | $7.47 PartSelect |
| 10 |  | WP33001882replaces 67006737 Screw | $27.07 ApplianceParts Pro |
| 11 |  | WP67006380replaces 67006380 Screw (3) | $21.46 ApplianceParts Pro |
| 12 | | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 13 |  | Plug, Button | - |
| 14 |  | WP489349replaces 67006303 Screw | $2.30 Part Advantage |
| 15 | – | 67002960 Hinge, Center — Black | - |
| 16 |  | WPW10141622replaces W10141622 Foot Brake | $3.55 Part Advantage |
| 17 |  | Cover, Corner — Black | - |
| 18 | | Hinge, Top — Right | - |
| 18 | | 12626912EDreplaces 12626909ED Hinge, Top — Left | - |
| 19 | | Clip, Drain Tube | $6.95 ApplianceParts Pro |
| 20 |  | Screw | $3.74 Parts Dr |
| 21 |  | Tube, Drain | - |
| 22 |  | Grille Assembly — Black | Discontinued |
| 23 | | Clip, Water Line | - |
| 24 |  | WPB5705307replaces B5705307 Tube, Plastic | $6.76 Part Advantage |
| 25 |  | Screw (10) | $2.30 Part Advantage |
| 26 |  | W11176463replaces W10137519 Elbow, Fill Tube | $42.61 Part Advantage |
| 27 | – | 67004098 Cover, Water Valve | - |
| 28 |  | Cover, Unit | - |
| 29 | | Cover, Water Line | - |
| 30 |  | Insulation, Sound | $11.89 Parts Dr |
