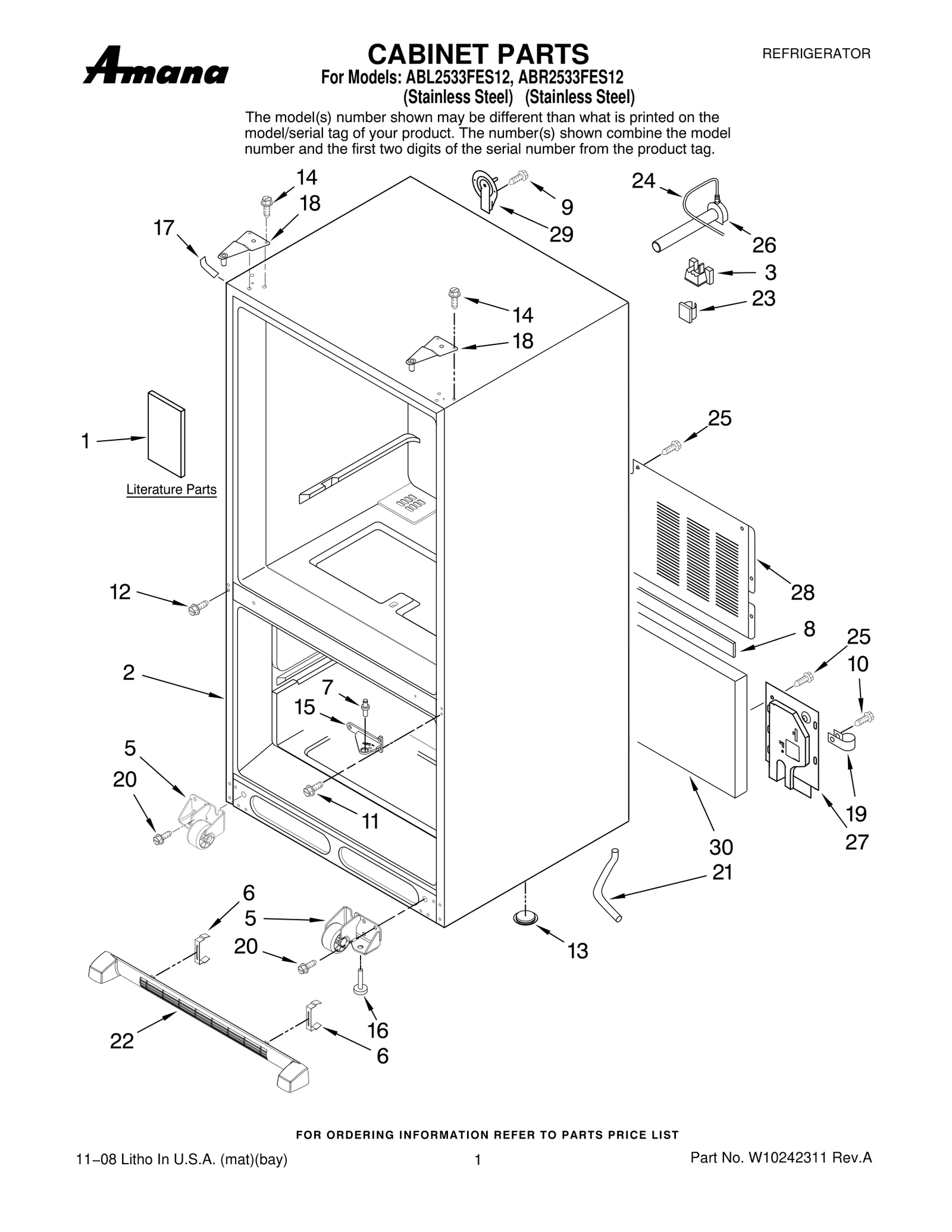

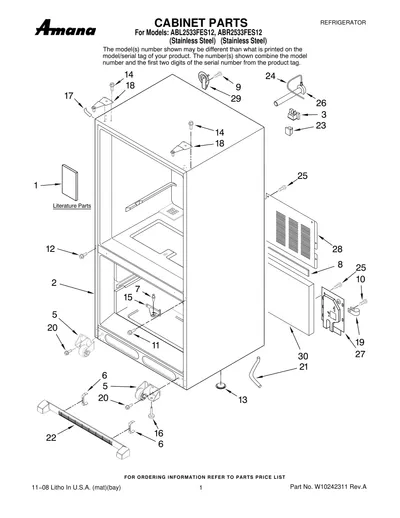

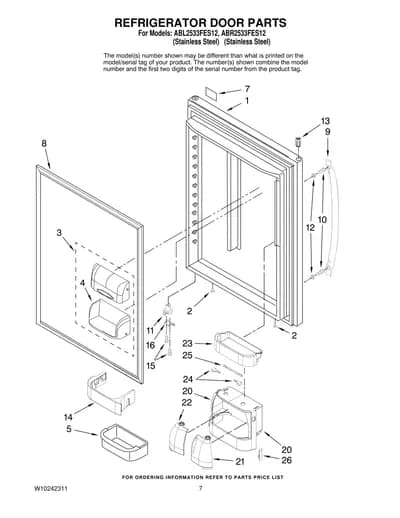

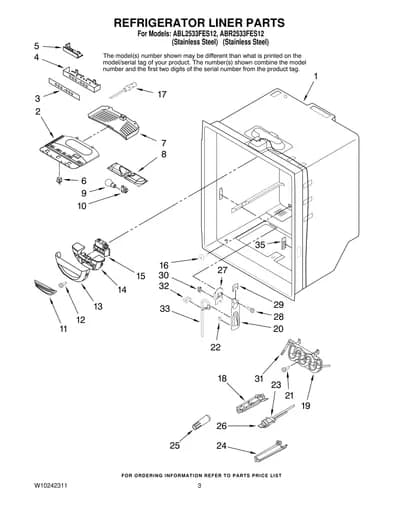

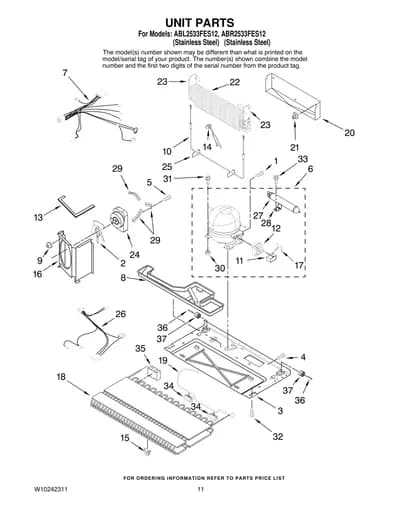

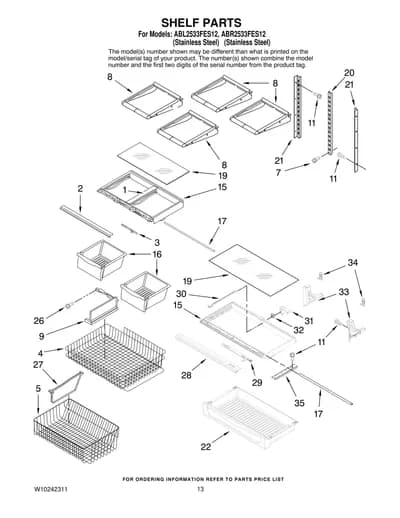

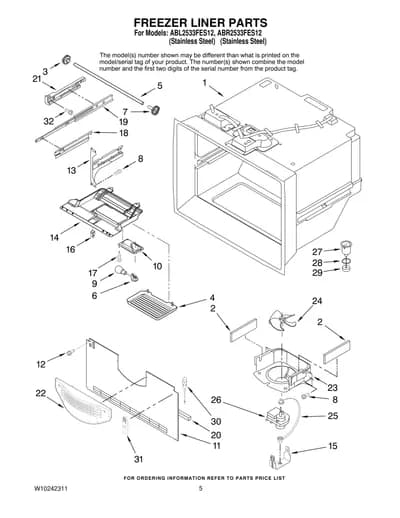

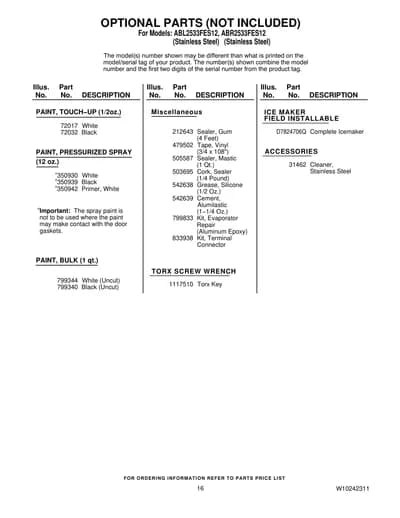

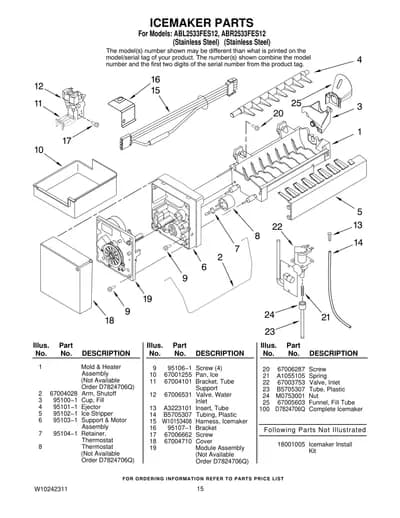

CABINET PARTS
Parts in CABINET PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10137643 Owners Manual | - |
| 1 | – | W10123466 Energy Tag | - |
| 1 | – | 67006716 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP12777701replaces 67004092 Block, Filter | - |
| 5 | – | 67006118 Roller Foot Assembly | - |
| 6 | – | 12627302 Clip, Grille | - |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 | – | B5759649 Gasket | - |
| 9 |  | WP98165replaces 67006287 Screw | $7.47 PartSelect |
| 10 |  | WP33001882replaces 67006737 Screw | $27.07 ApplianceParts Pro |
| 11 |  | WP67006380replaces 67006380 Screw (3) | $21.46 ApplianceParts Pro |
| 12 | | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 13 |  | Plug, Button | - |
| 14 |  | WP489349replaces 67006303 Screw | $2.30 Part Advantage |
| 15 |  | WP12607104EDreplaces 67007043 Hinge, Center — Black | $53.11 Parts Dr |
| 16 |  | W11177593replaces 67003868 Foot Brake | $6.48 Part Advantage |
| 17 |  | Cover, Corner — Black | - |
| 18 |  | WP12566606EDreplaces 12566604ED Hinge, Top — Left | $18.97 Parts Dr |
| 19 |  | Clip, Drain Tube | $6.95 ApplianceParts Pro |
| 20 |  | Screw | $3.74 Parts Dr |
| 21 | | 67001066NLA Tube, Drain | Discontinued |
| 22 |  | WPW10534153replaces 67006375 Grille Assembly — Black | $56.39 Part Advantage |
| 23 | | Clip, Water Line | - |
| 24 |  | WPB5705307replaces 67003729 Tube, Plastic | $6.76 Part Advantage |
| 25 |  | Screw (10) | $2.30 Part Advantage |
| 26 |  | W11176463replaces W10137519 Elbow, Fill Tube | $42.61 Part Advantage |
| 27 | – | 67004098 Cover, Water Valve | - |
| 28 |  | Cover, Unit | - |
| 29 | | Cover, Water Line | - |
| 30 |  | Insulation, Sound | $11.89 Parts Dr |
