Model
Amana ACC082PS2
Air Conditioner
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ACC082PS2Air Conditioner
3 diagrams58 parts

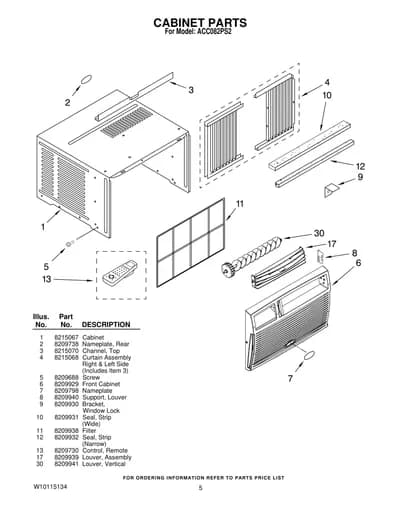

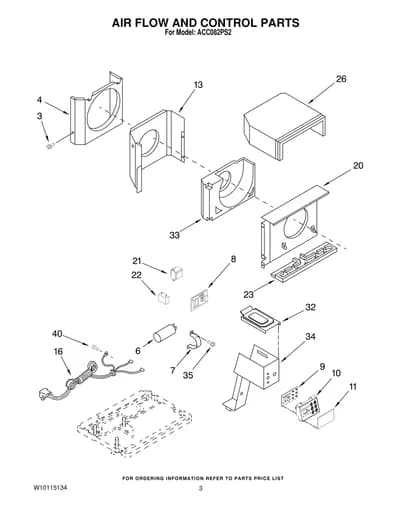

Parts Sections (3)
Diagram

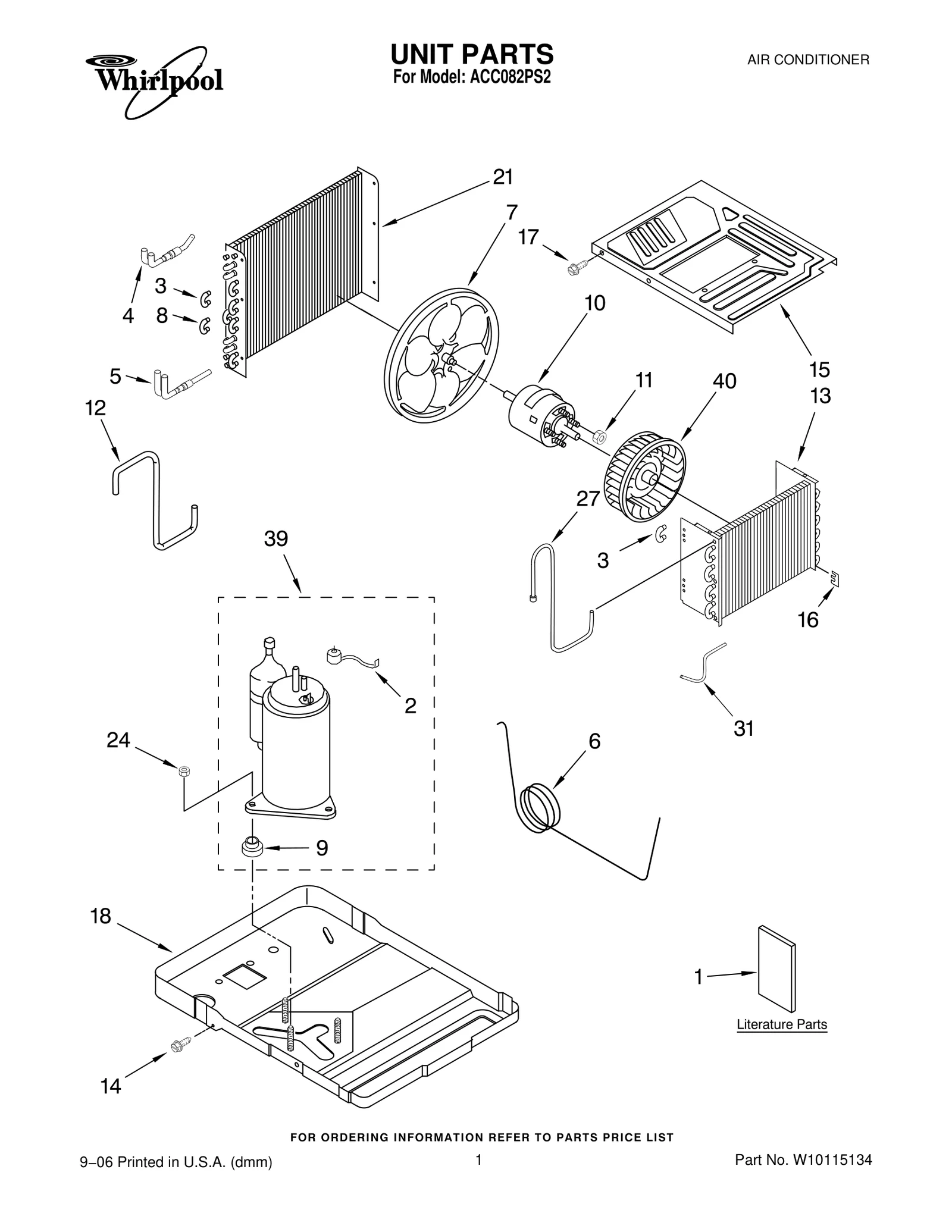

UNIT PARTS
Parts in UNIT PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8209795 Wiring Diagram | - |
| 1 | – | 8215233 Use & care Guide | - |
| 1 | – | 8215235 Energy Guide | - |
| 2 |  | Overload | - |
| 3 | – | 8209653 Bend, Return | - |
| 4 | | 8209654NLA Tube, Inlet | Discontinued |
| 5 | – | 8209655 Tube, Outlet | - |
| 6 | – | 8215057 Tube, Restrictor | - |
| 7 | | 8215065NLA Blade, Fan | Discontinued |
| 8 | – | 8209658 Bend, Return | - |
| 9 | – | 8209880 Grommet (3) | - |
| 10 | | Motor, Fan | - |
| 11 | – | 8209660 Nut, Hex | - |
| 12 | – | 8215060 Tube, Discharge | - |
| 13 | – | 8209942 Evaporator | - |
| 14 |  | W11245710replaces 8209688 Screw | $10.70 Parts Dr |
| 15 | – | 8215063 Cover, Evaporator | - |
| 16 | – | 8209771 Support, Tube Sensor | - |
| 17 | | Screw | Discontinued |
| 18 | – | 8215059 Base | - |
| 21 | – | 8215066 Condenser | - |
| 24 | – | 8209668 Nut, Hex | - |
| 27 | – | 8215056 Tube, Suction | - |
| 31 | – | 8209671 Tube, Inlet | - |
| 39 | | 8209881NLA Compressor Assembly | Discontinued |
| 40 | | Wheel, Blower REFRIGERANT CHARGE 22.23 oz. | - |
