Model
Amana ACC082PT1
Air Conditioner
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ACC082PT1Air Conditioner
3 diagrams62 parts
Parts Sections (3)
Diagram

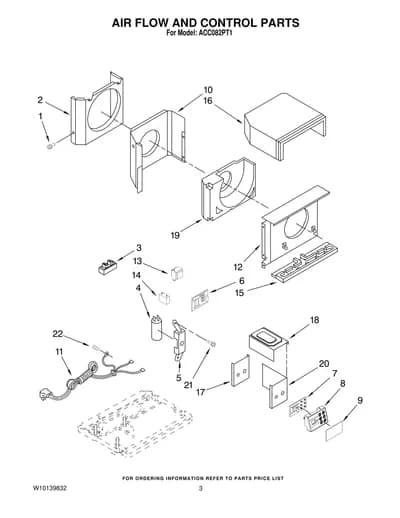

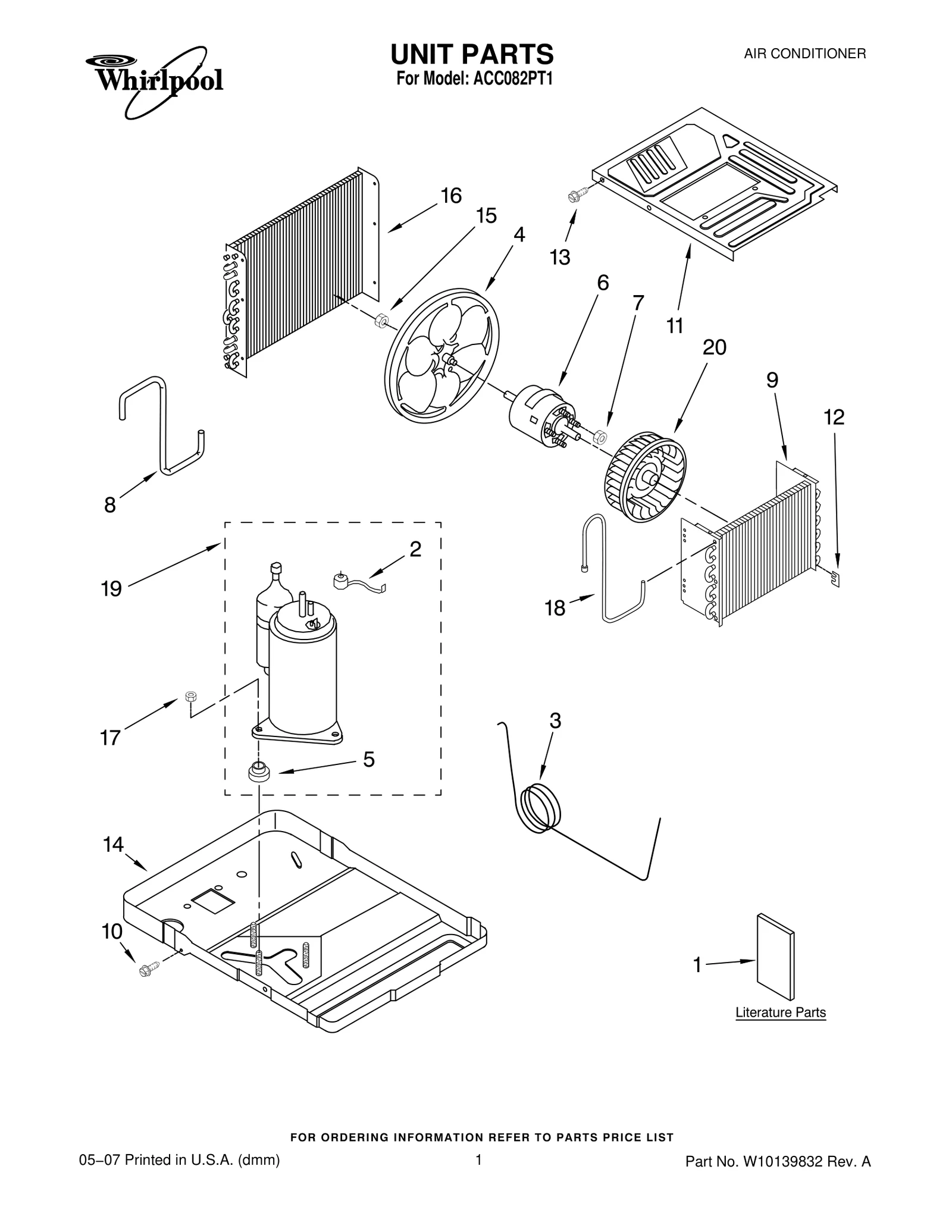

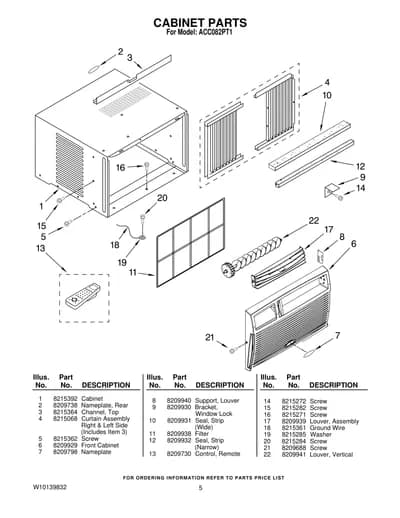

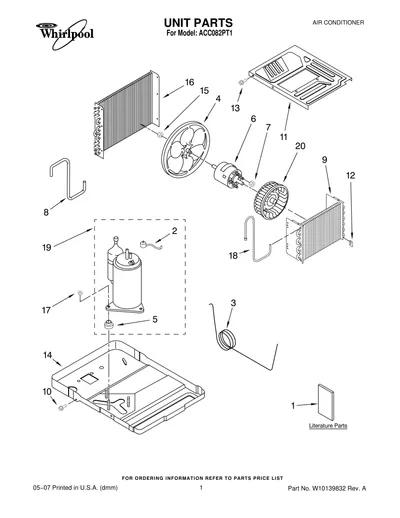

UNIT PARTS
Parts in UNIT PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10121862 Wiring Diagram | - |
| 1 | – | 8215278 Use & care Guide | - |
| 1 | – | 8209861 Energy Guide | - |
| 2 | – | 8209861 Overload | - |
| 3 | – | 8215398 Tube, Restrictor | - |
| 4 |  | 8215065NLA Blade, Fan | Discontinued |
| 5 | – | 8209859 Grommet (3) | - |
| 6 | | Motor, Fan | - |
| 7 | – | 8209660 Nut, Hex | - |
| 8 | – | 8215399 Tube, Discharge | - |
| 9 | – | 8215378 Evaporator | - |
| 10 |  | W11245710replaces 8209688 Screw | $10.70 Parts Dr |
| 11 | – | 8215390 Cover, Evaporator | - |
| 12 | – | 8209771 Support, Tube Sensor | - |
| 13 | | Screw | Discontinued |
| 14 | – | 8215387 Base | - |
| 15 | – | 8215252 Nut W/Washer | - |
| 16 | | 8215391NLA Condenser | Discontinued |
| 17 | – | 8209668 Nut, W/Washer | - |
| 18 | – | 8215397 Tube, Suction | - |
| 19 | – | 8209860 Compressor Assembly | - |
| 20 | | Wheel, Blower REFRIGERANT CHARGE 22.21 oz. | - |
