Model
Amana ACC184PS2
Air Conditioner
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ACC184PS2Air Conditioner
5 diagrams89 parts
Parts Sections (5)
Diagram

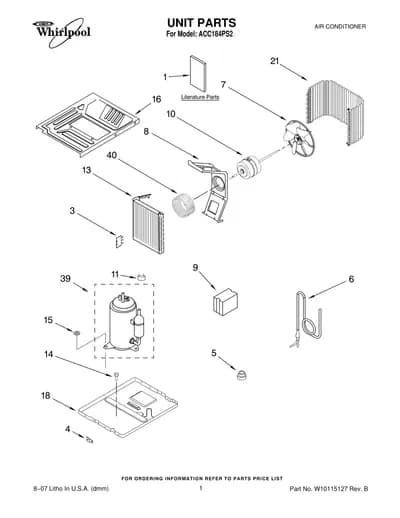

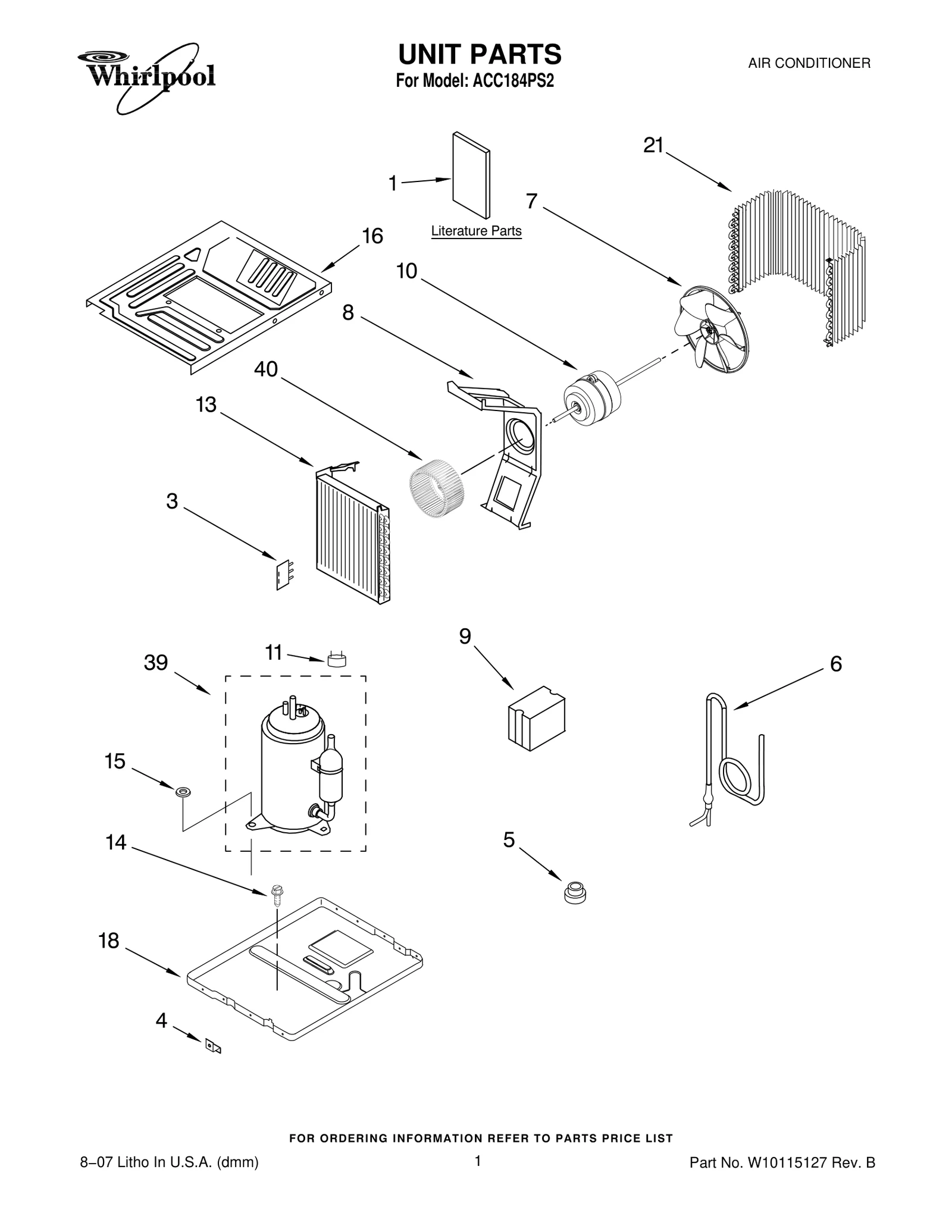

UNIT PARTS
Parts in UNIT PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8215241 Wiring Diagram | - |
| 1 | – | 8215246 Use & Care Guide | - |
| 1 | – | 8215243 Energy Guide | - |
| 3 | – | 8209771 Support, Tube Sensor | - |
| 4 | – | 8215148 Clip | - |
| 5 | – | 8215149 Drain Plug | - |
| 6 | – | 8215126 Tube, Restrictor | - |
| 7 | – | 8215104 Blade, Fan | - |
| 8 | – | 8215107 Bracket, Fan Motor | - |
| 9 | – | 8215130 Relay | - |
| 10 | – | 8215108 Motor, Fan | - |
| 11 | – | 8215123 Overload | - |
| 13 | – | 8215121 Evaporator | - |
| 14 |  | W11245710replaces 8209688 Screw (5) | $10.70 Parts Dr |
| 15 |  | WP950035replaces 8215124 Gasket | - |
| 16 | – | 8215106 Cover, Evaporator | - |
| 18 | – | 8215157 Base | - |
| 21 | – | 8215103 Condenser | - |
| 39 | | Compressor Assy. | - |
| 40 | – | 8215118 Wheel, Blower REFRIGERANT CHARGE 27.86 oz. | - |
