ModelWhirlpool
ACD052PS5Air Conditioner
3 diagrams48 parts
Parts Sections (3)

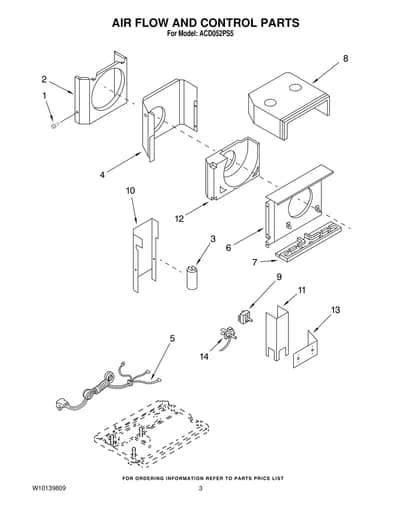

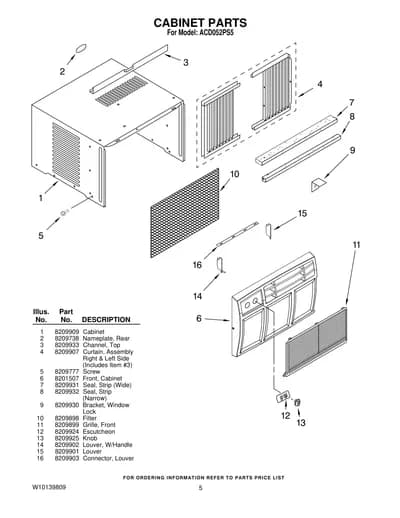

Diagram

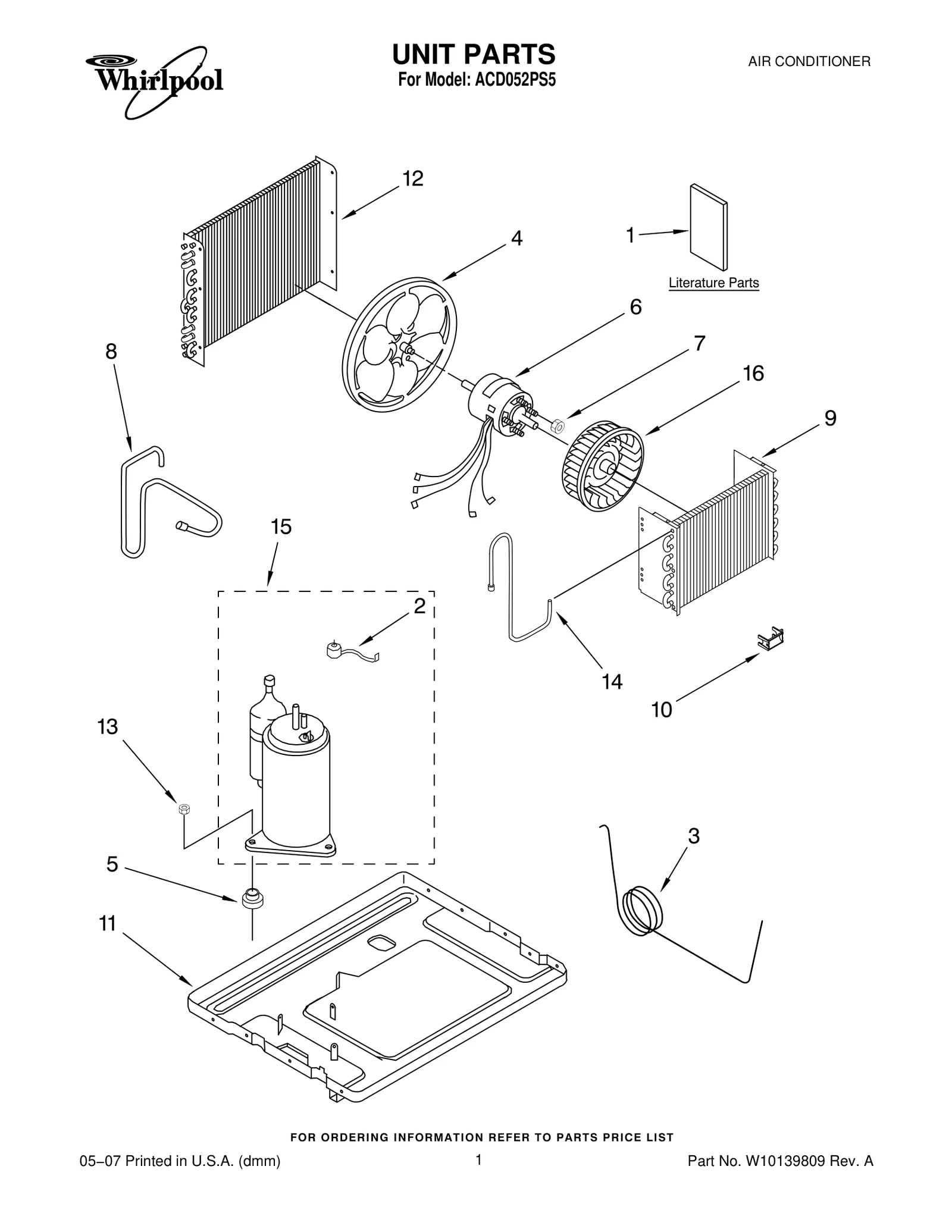

UNIT PARTS
Parts in UNIT PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8209928 Wiring Diagram | - |
| 1 | – | 8209797 Use & care Guide | - |
| 1 | – | 8209927 Guide, Energy | - |
| 2 | – | 8209732 Overload | - |
| 3 | – | 8209919 Tube, Restrictor | - |
| 4 |  | Blade, Fan | - |
| 5 | – | 8209829 Grommet | - |
| 6 | – | 8209913 Motor, Fan | - |
| 7 | – | 8209660 Nut, Hex | - |
| 8 | – | 8209934 Tube, Discharge | - |
| 9 | – | 8209904 Evaporator | - |
| 10 | – | 8209771 Clip, Thermostat | - |
| 11 | – | 8209905 Base | - |
| 12 | – | 8209911 Condenser | - |
| 13 | – | 8209668 Nut, Hex | - |
| 14 | | Tube, Suction | - |
| 15 | – | 8209802 Compressor Assembly | - |
| 16 | – | 8209673 Wheel, Blower REFRIGERANT CHARGE 13.75 oz. | - |
