Model
Amana ACE082PT3
Air Conditioner
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ACE082PT3Air Conditioner
3 diagrams64 parts
Parts Sections (3)
Diagram

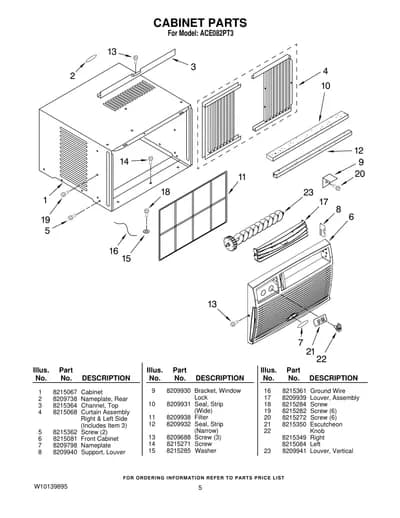

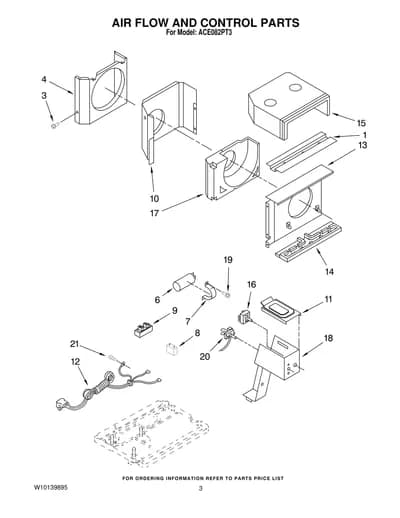

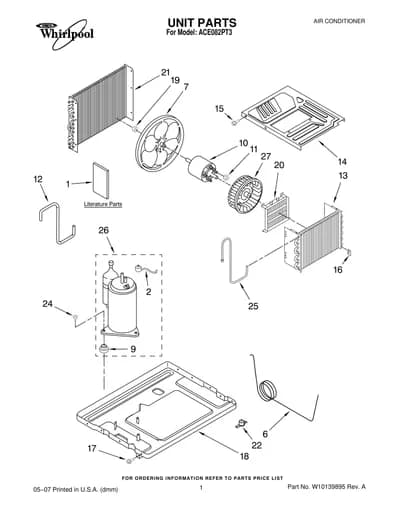

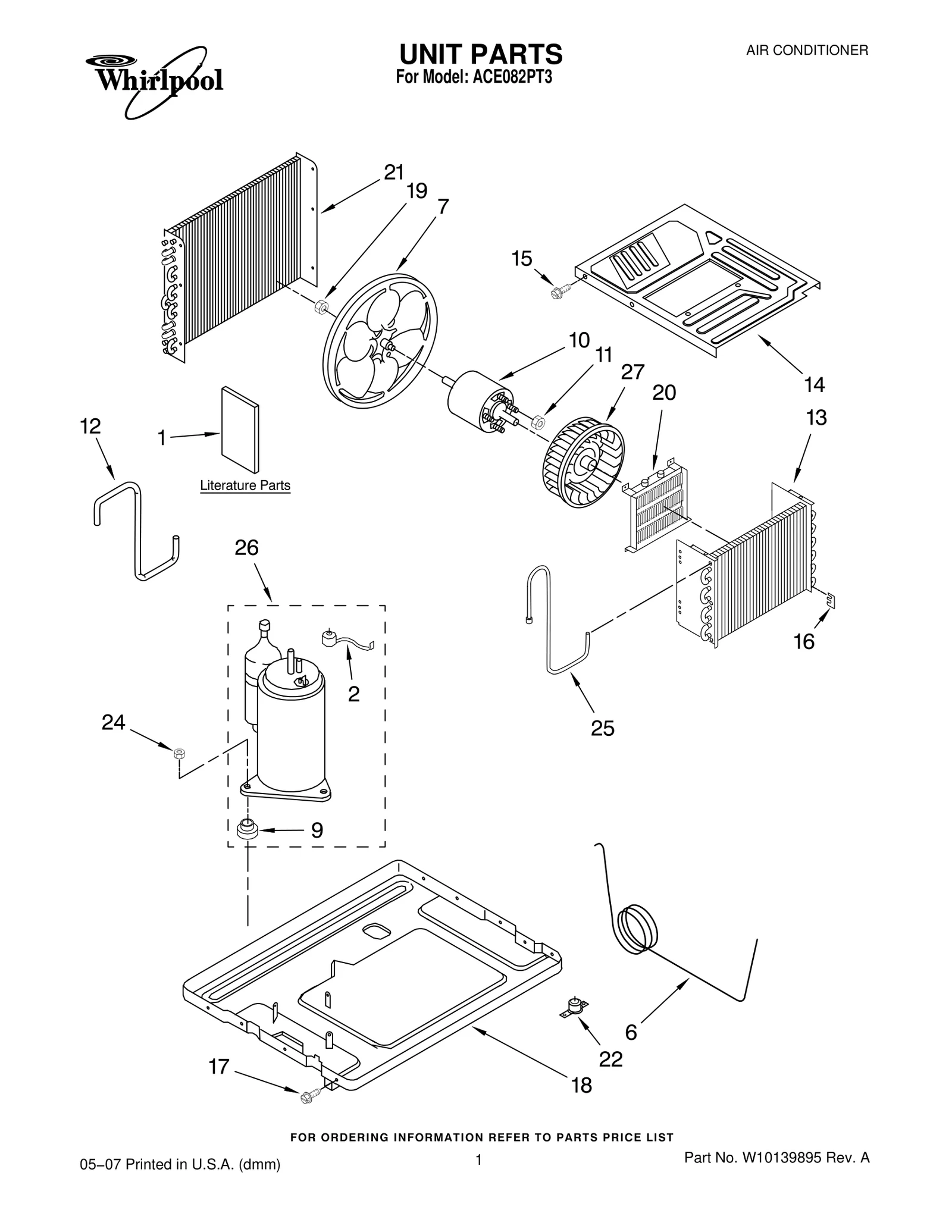

UNIT PARTS
Parts in UNIT PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10121864 Wiring Diagram | - |
| 1 | – | 8215278 Use & care Guide | - |
| 1 | – | W10122490 Energy Guide | - |
| 2 | – | 8209861 Overload | - |
| 6 | – | 8215057 Tube, Restrictor | - |
| 7 | – | 8215360 Blade, Fan | - |
| 9 | – | 8209859 Grommet (3) | - |
| 10 | – | 8215358 Motor, Fan | - |
| 11 | – | 8209660 Nut, Hex | - |
| 12 | – | 8215359 Tube, Discharge | - |
| 13 | – | 8215346 Evaporator | - |
| 14 | – | 8215063 Cover, Evaporator | - |
| 15 |  | Screw | Discontinued |
| 16 | – | 8209771 Support, Tube Sensor | - |
| 17 |  | W11245710replaces 8209688 Screw (5) | $10.70 Parts Dr |
| 18 | – | 8215357 Base | - |
| 19 | – | 8215252 Nut W/Washer | - |
| 20 | – | 8215368 Heater | - |
| 21 | – | 8215066 Condenser | - |
| 22 | – | 8215344 Drain Valve | - |
| 24 | – | 8209668 Nut, Hex | - |
| 25 | – | 8215356 Tube, Suction | - |
| 26 | | 8209881NLA Compressor Assembly | Discontinued |
| 27 | – | 8215354 Wheel, Blower REFRIGERANT CHARGE 21.21 oz. | - |
