Model
Amana ACE244PT1
Air Conditioner
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ACE244PT1Air Conditioner
5 diagrams107 parts

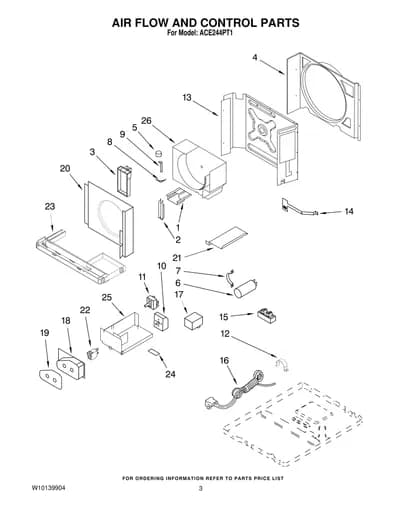

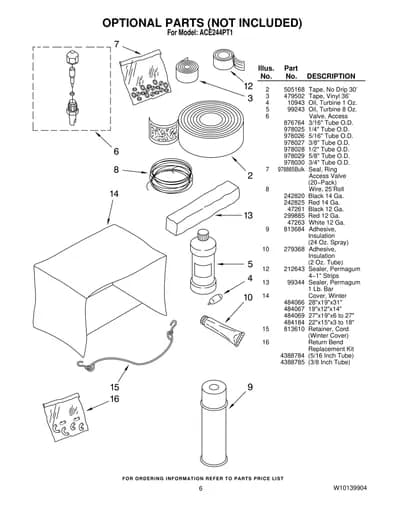

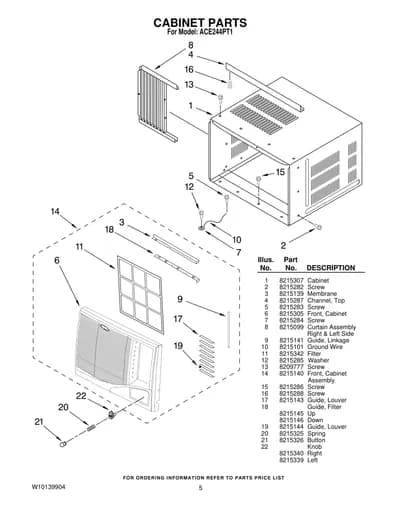

Parts Sections (5)
Diagram

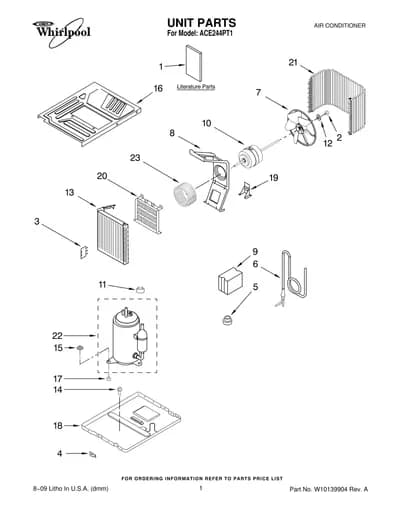

UNIT PARTS
Parts in UNIT PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10121866 Wiring Diagram | - |
| 1 | – | 8215279 Use & Care Guide | - |
| 1 | – | W10122493 Energy Guide | - |
| 2 | – | 8215290 Nut w/washer | - |
| 3 | – | 8209771 Support, Tube Sensor | - |
| 4 | – | 8215148 Clip | - |
| 5 | – | 8215344 Drain Plug | - |
| 6 |  | Tube, Restrictor | - |
| 7 | – | 8215104 Blade, Fan | - |
| 8 | – | 8215107 Bracket, Fan Motor | - |
| 9 | – | 8215130 Relay | - |
| 10 | – | 8215150 Motor, Fan | - |
| 11 | – | 8215123 Overload | - |
| 12 | – | 8215291 Washer | - |
| 13 | – | 8215316 Evaporator | - |
| 14 |  | W11245710replaces 8209688 Screw (5) | $10.70 Parts Dr |
| 15 | – | 8215154 Gasket | - |
| 16 | – | 8215307 Cover, Evaporator | - |
| 17 | – | 8215297 Nut w/washer | - |
| 18 | – | 8215343 Base | - |
| 19 | – | 8215327 Support | - |
| 20 | – | 8215331 Heater | - |
| 21 | – | 8215069 Condenser | - |
| 22 | | 8215332NLA Compressor Assy. | Discontinued |
| 23 | – | 8215329 Wheel, Blower REFRIGERANT CHARGE 34.20 oz. | - |
