Model
Whirlpool ACM082PS6
Air Conditioner
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
ACM082PS6Air Conditioner
3 diagrams54 parts
Parts Sections (3)

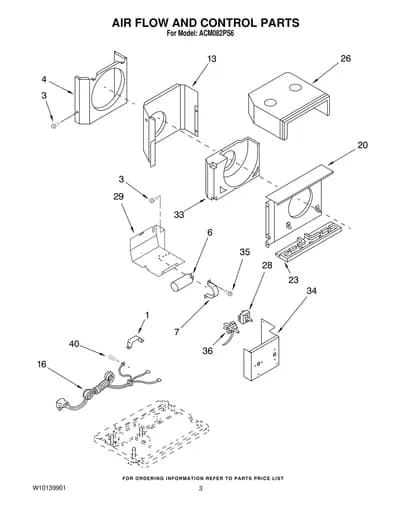

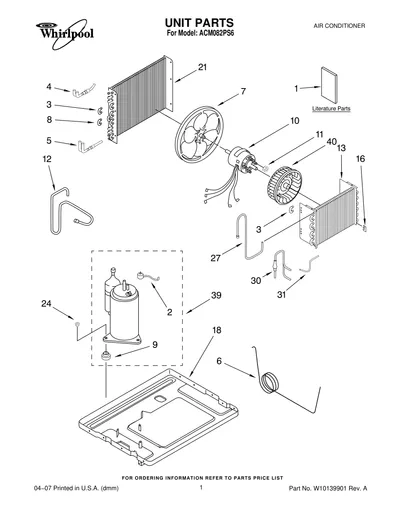

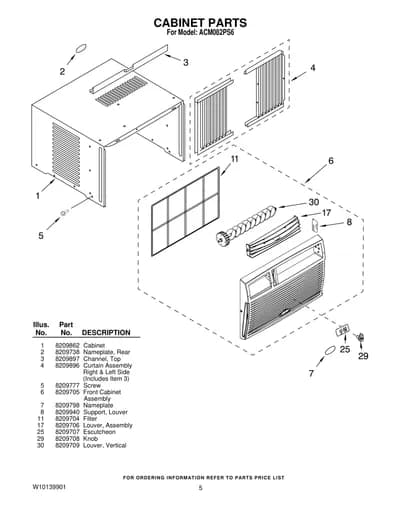

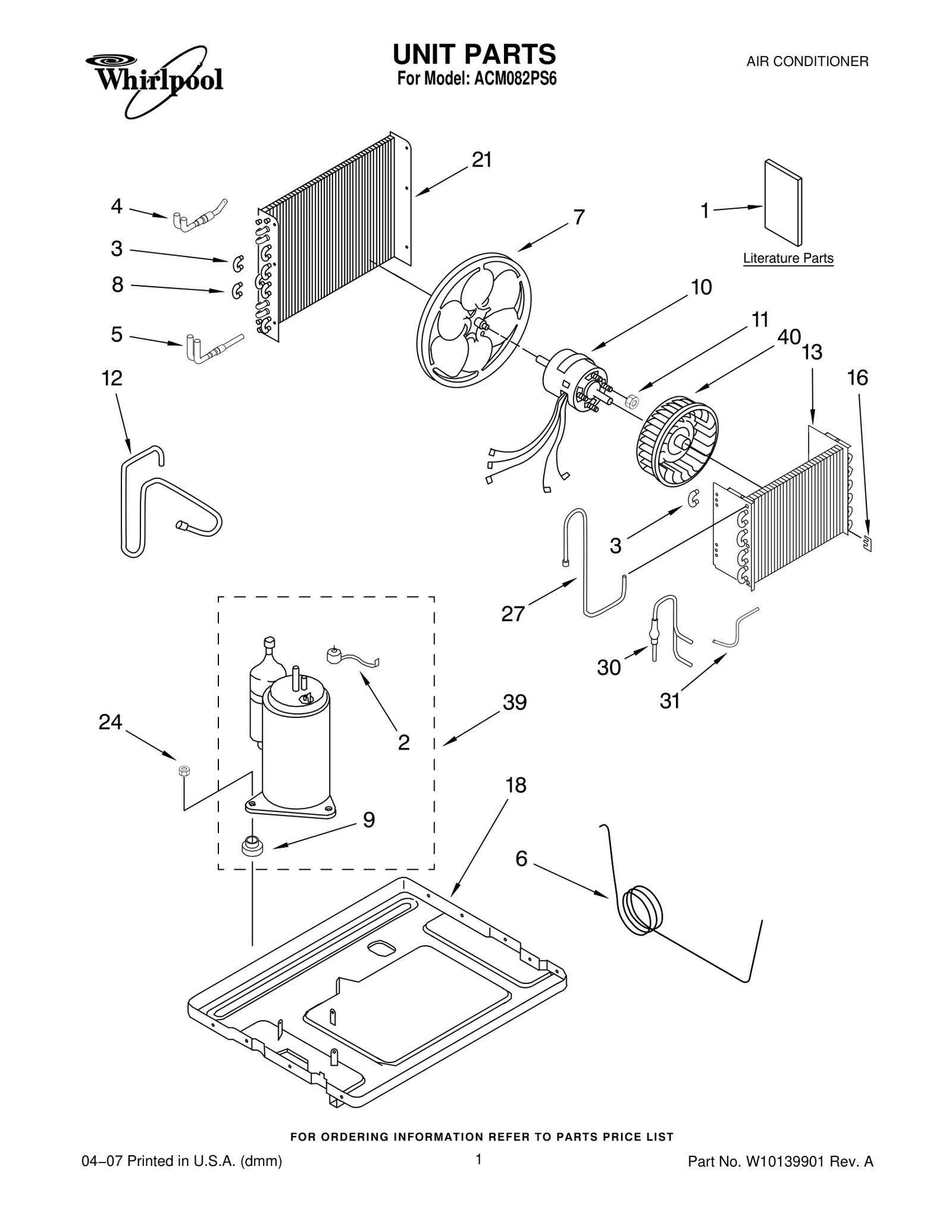

Diagram
UNIT PARTS
Parts in UNIT PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8209850 Wiring Diagram | - |
| 1 | – | 8209797 Use & care Guide | - |
| 1 | – | 8209876 Energy Guide | - |
| 2 | – | 8209882 Overload | - |
| 3 | – | 8209653 Bend, Return | - |
| 4 |  | 8209654NLA Tube, Inlet | Discontinued |
| 5 | – | 8209655 Tube, Outlet | - |
| 6 | | Tube, Restrictor | - |
| 7 | | Blade, Fan | - |
| 8 | – | 8209658 Bend, Return | - |
| 9 | – | 8209880 Grommet (3) | - |
| 10 | | Motor, Fan | - |
| 11 | – | 8209660 Nut, Hex | - |
| 12 | – | 8209865 Tube, Discharge | - |
| 13 | – | 8209854 Evaporator | - |
| 16 | – | 8215082 Support, Tube Sensor | - |
| 18 | – | 8209855 Base | - |
| 21 | – | 8209864 Condenser | - |
| 24 | – | 8209668 Nut, Hex | - |
| 27 | | Tube, Suction | - |
| 30 | – | 8209670 Manifold | - |
| 31 | – | 8209671 Tube, Inlet | - |
| 39 | | 8209881NLA Compressor Assembly | Discontinued |
| 40 | – | 8209673 Wheel, Blower REFRIGERANT CHARGE 18.69 oz. | - |
