Model
Whirlpool ACM124PT0
Air Conditioner
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
ACM124PT0Air Conditioner
3 diagrams60 parts
Parts Sections (3)
Diagram

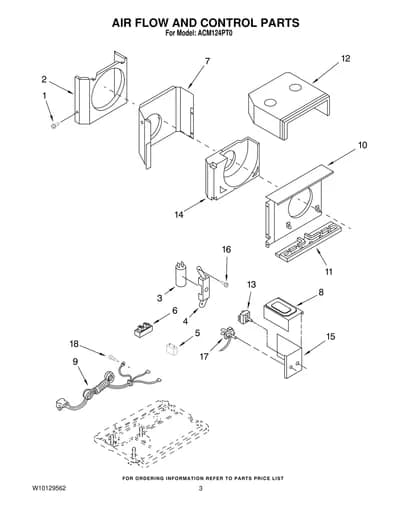

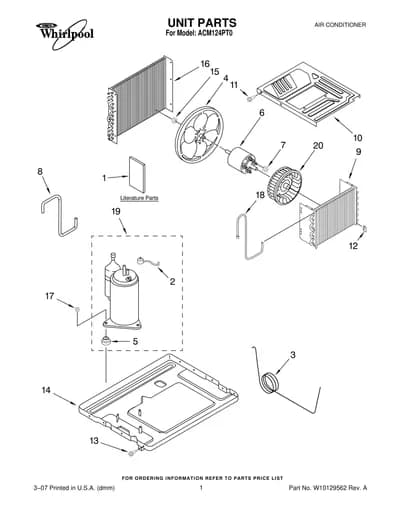

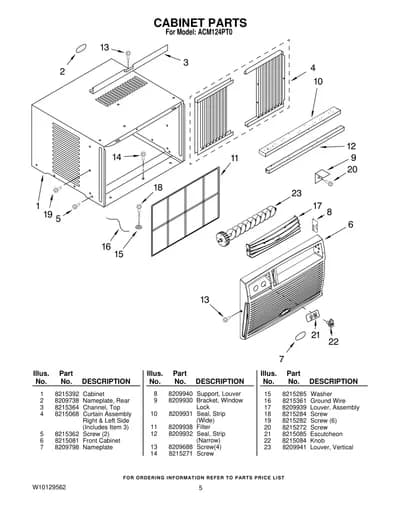

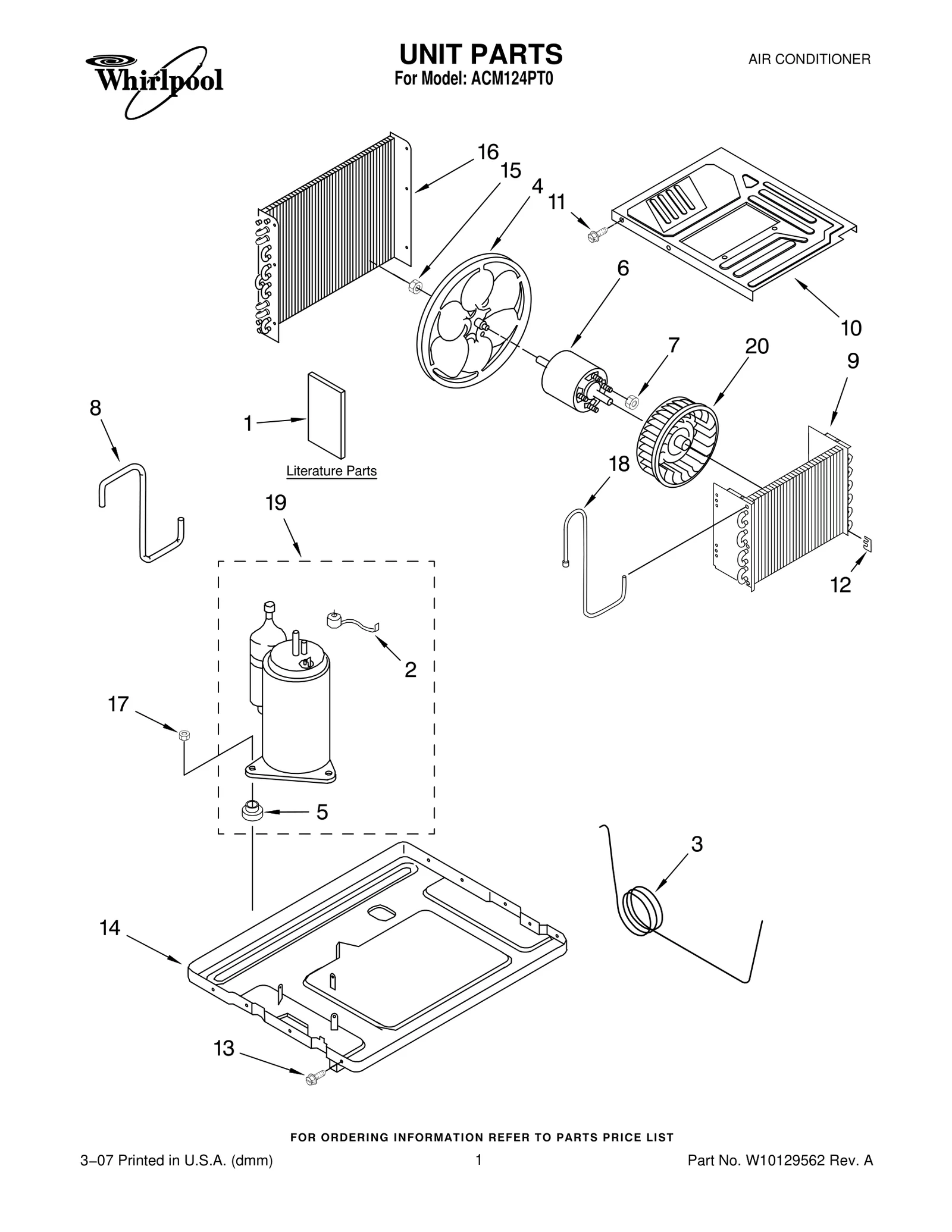

UNIT PARTS
Parts in UNIT PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8215232 Wiring Diagram | - |
| 1 | – | 8215278 Use & care Guide | - |
| 1 | – | 8215238 Energy Guide | - |
| 2 | – | 8215370 Overload | - |
| 3 | – | 8215384 Tube, Restrictor | - |
| 4 |  | 8215065NLA Blade, Fan | Discontinued |
| 5 | – | 8215077 Grommet (3) | - |
| 6 | – | 8215167 Motor, Fan | - |
| 7 | – | 8209660 Nut, Hex | - |
| 8 | – | 8215401 Tube, Discharge | - |
| 9 | – | 8215377 Evaporator | - |
| 10 | – | 8215390 Cover, Evaporator | - |
| 11 | | Screw | Discontinued |
| 12 | – | 8209771 Support, Tube Sensor | - |
| 13 |  | W11245710replaces 8209688 Screw (5) | $10.70 Parts Dr |
| 14 | – | 8215387 Base | - |
| 15 | – | 8215252 Nut W/Washer | - |
| 16 | | 8215391NLA Condenser | Discontinued |
| 17 | – | 8215276 Nut, Hex | - |
| 18 | – | 8215383 Tube, Suction | - |
| 19 | – | 8215371 Compressor Assembly | - |
| 20 | | Wheel, Blower REFRIGERANT CHARGE 21.51 oz. | - |
