ModelWhirlpool
ACP102PS2Portable Air Conditioner
4 diagrams76 parts

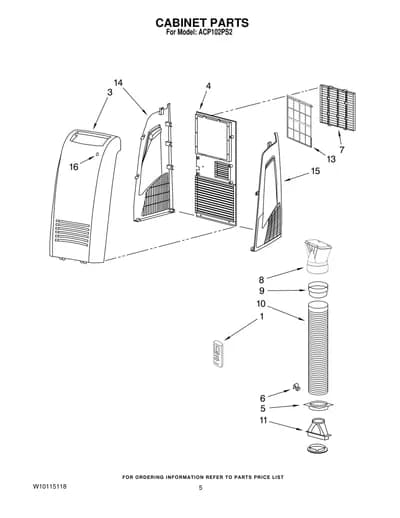

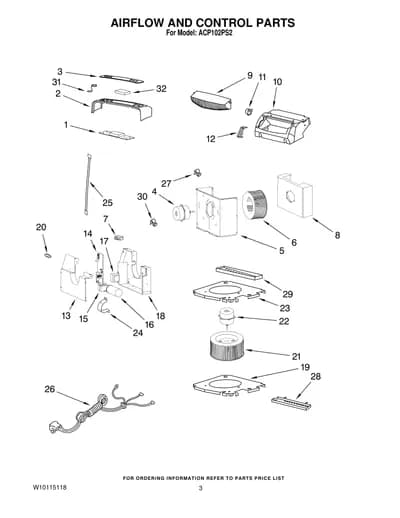

Parts Sections (4)
Diagram

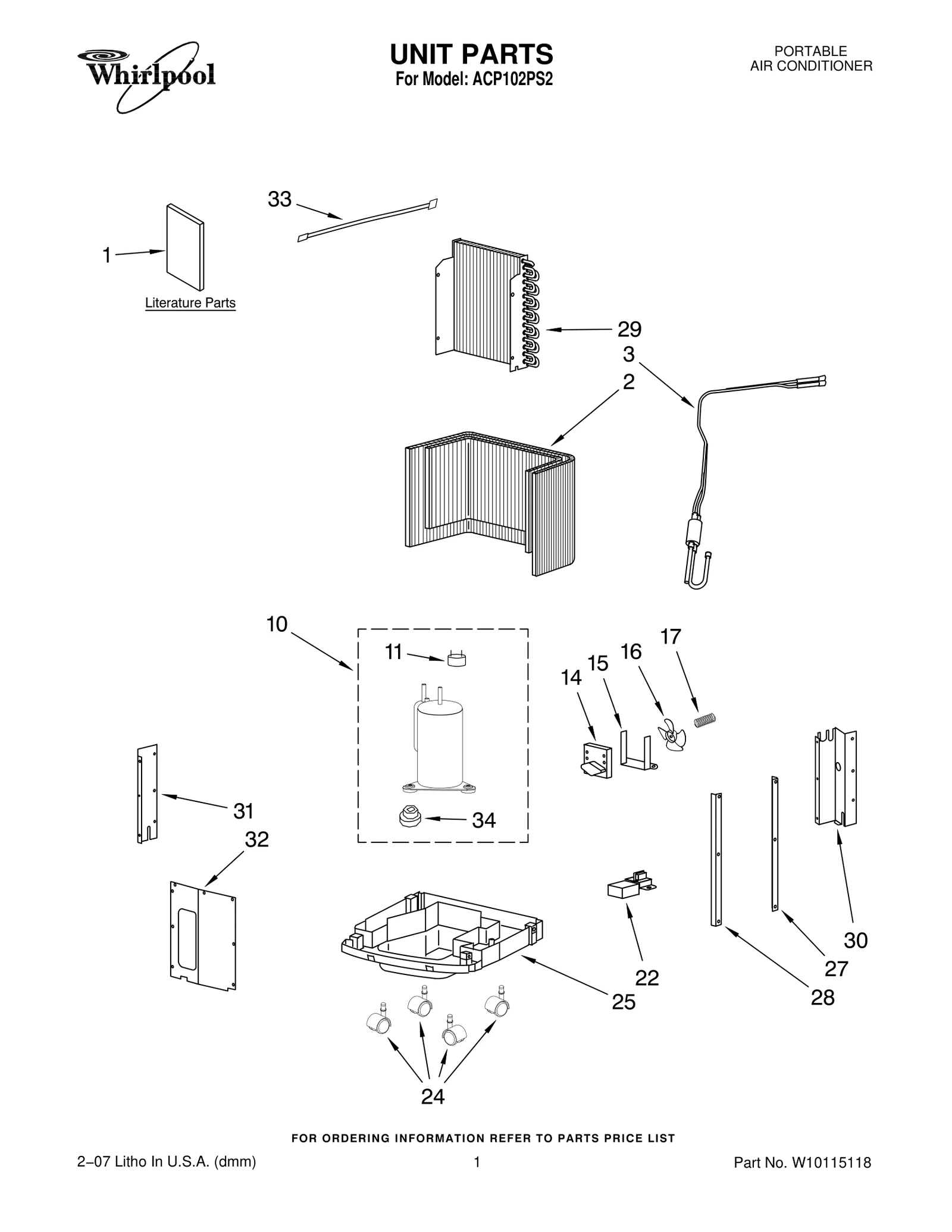

UNIT PARTS
Parts in UNIT PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8215247 Guide, Use & Care | - |
| 1 | – | 8215248 Diagram, Wiring | - |
| 2 | – | 8215210 Condenser | - |
| 3 | – | 8215225 Tube Restrictor Assembly | - |
| 10 |  | 8215197NLA Compressor, Assembly | Discontinued |
| 11 | | Overload | - |
| 14 | – | 8215206 Motor, Fan | - |
| 15 | – | 8215207 Base, Motor | - |
| 16 | – | 8215208 Fan | - |
| 17 | – | 8215209 Spring | - |
| 22 | – | 8215204 Switch, Level | - |
| 24 | | 8215200NLA Roller | Discontinued |
| 25 | – | 8215203 Base | - |
| 27 | – | 8215205 Support, Back — Right | - |
| 27 | – | 8215202 Support, Back — Left | - |
| 28 | – | 8215201 Support, Front — Right | - |
| 28 | – | 8215196 Support, Front — Left | - |
| 29 | – | 8215218 Evaporator | - |
| 30 | – | 8215195 Support (Right) | - |
| 31 | – | 8215193 Support (Left) | - |
| 32 | – | 8215194 Support (Front) | - |
| 33 | | Thermistor | - |
| 34 | – | 8215199 Grommet REFRIGERANT CHARGE 21.6 oz. | - |
