Model
Amana ADB2500AWB37
Undercounter Dishwasher
Parts Sections (14)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ADB2500AWB37Undercounter Dishwasher
14 diagrams125 parts
Parts Sections (14)
Diagram

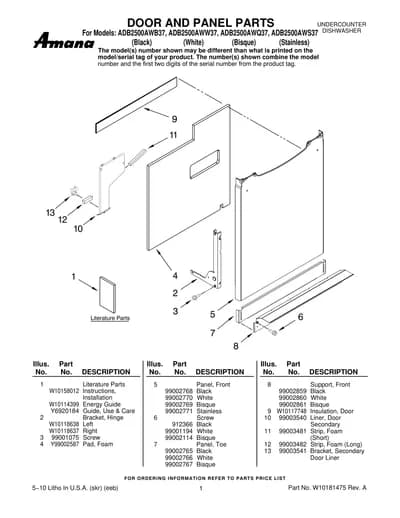

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10158012 Instructions, Installation | - |
| 1 | – | W10114399 Energy Guide | - |
| 1 | – | Y6920184 Guide, Use & Care | - |
| 2 |  | W10118638NLA Bracket, Hinge — Left | Discontinued |
| 2 |  | WPW10118637replaces W10118637 Bracket, Hinge — Right | $110.42 ApplianceParts Pro |
| 3 | | 99001075NLA Screw | Discontinued |
| 4 | – | Y99002587 Pad, Foam | - |
| 5 | – | 99002768 Panel, Front — Black | - |
| 5 | – | 99002770 Panel, Front — White | - |
| 5 | – | 99002769 Panel, Front — Bisque | - |
| 5 | | 99002771NLA Panel, Front — Stainless | Discontinued |
| 6 |  | WP6-912366replaces 912366 Screw — Black | $5.95 ApplianceParts Pro |
| 6 | – | 99001194 Screw — White | - |
| 6 | – | 99002114 Screw — Bisque | - |
| 7 | | 99002765NLA Panel, Toe — Black | Discontinued |
| 7 | – | 99002766 Panel, Toe — White | - |
| 7 | – | 99002767 Panel, Toe — Bisque | - |
| 8 | – | 99002859 Support, Front — Black | - |
| 8 | – | 99002860 Support, Front — White | - |
| 8 | – | 99002861 Support, Front — Bisque | - |
| 9 |  | WPW10117748replaces W10117748 Insulation, Door | - |
| 10 | | W10185633replaces 99003540 Liner, Door Secondary | - |
| 11 | | Strip, Foam | - |
| 12 | | 99003482NLA Strip, Foam (Long) | Discontinued |
| 13 | | 99003541NLA Bracket, Secondary Door Liner | Discontinued |
