Model
Whirlpool AED4470TQ0
29" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
AED4470TQ029" Electric Dryer
4 diagrams124 parts
Parts Sections (4)
Diagram

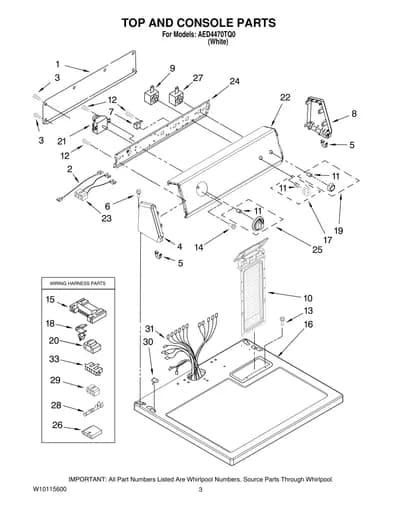

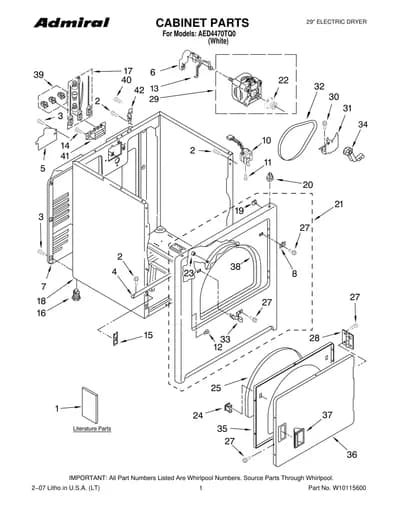

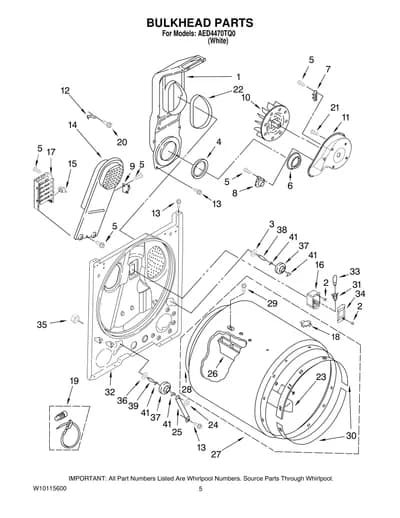

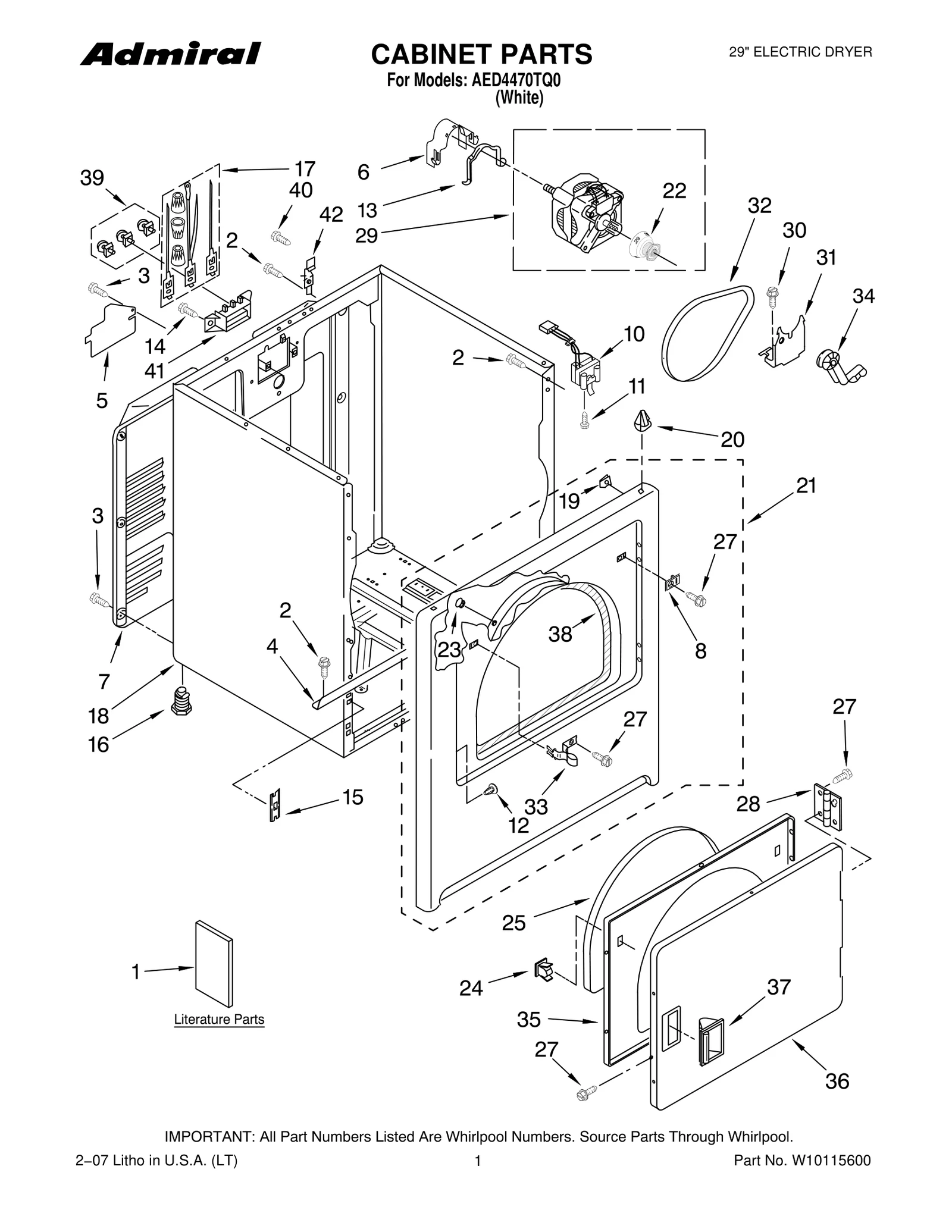

CABINET PARTS
Parts in CABINET PARTS
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10088970 Instructions, Installation | - |
| 1 | – | W10088774 Use & Care Guide | - |
| 1 | – | 8576817 Wiring Diagram | - |
| 1 | – | W10089174 Sheet, Cycle Feature | - |
| 2 |  | WP681414replaces 343641 Screw, 10−16 x 1/2 | $2.30 Part Advantage |
| 3 |  | WP489069replaces 693995 Screw, 8−18 x 3/8 | $2.30 Part Advantage |
| 4 | – | 8541400 Bracket, Cabinet | - |
| 5 |  | W11539855replaces 3396795 Cover, Block | $242.56 Part Advantage |
| 6 |  | WP3404162replaces 3404162 Clamp−Motor | $5.00 RepairClinic |
| 7 |  | 280043replaces 3396805 Panel, Rear | $155.95 ApplianceParts Pro |
| 8 |  | WP3403630replaces 3403630 Plug, Strike | $3.38 Part Advantage |
| 10 |  | WP3406107replaces 3406107 Door Switch Assembly | $11.64 Part Advantage |
| 11 |  | WP3395530replaces 697773 Screw, 6−20 x 7/8 | $7.43 ApplianceParts Pro |
| 12 |  | WP3404413replaces 3404413 Plug, Hinge Hole | $3.59 Parts Dr |
| 13 |  | WP660658replaces 660658 Clamp, Motor | $2.86 Part Advantage |
| 14 |  | WP308685replaces 3393008 Screw, 10−16 x 1/2 | $2.30 Part Advantage |
| 15 |  | W10854425replaces 3394083 Clip, Front Panel (2) | $5.94 Part Advantage |
| 16 |  | 49621replaces 3392100 Foot, Dryer | $2.20 Part Advantage |
| 16 | | 49621replaces 279810 Foot−Optional (Extended Length Package of 2) | $2.20 Part Advantage |
| 17 |  | Terminal, Tinned & Brass (3) (Includes | $40.29 Part Advantage |
| 18 |  | 8533643replaces 8530603 Cabinet (Includes — White | $354.95 ApplianceParts Pro |
| 19 |  | WP98234replaces 98234 Clip, Ground | $4.37 Part Advantage |
| 20 |  | WP18776replaces 690363 Lock, Front Top (2) | $4.59 Part Advantage |
| 21 |  | 279852replaces 3403444 Panel, Front — White | $130.95 RepairClinic |
| 22 |  | WP8066184replaces 8066184 Pulley, Motor | $18.78 Part Advantage |
| 23 |  | 279220replaces 685203 Clip, Felt Pad (3) | $10.92 Part Advantage |
| 24 |  | WP3389441replaces 3389441 Catch, Door Assembly | $3.38 Part Advantage |
| 25 |  | W10861521replaces 3405246 Seal, Door | $37.51 Part Advantage |
| 27 |  | WP488627replaces 342055 Screw, 8−18 x 1/2 | $3.90 Part Advantage |
| 28 |  | WPW10362431replaces 3405514 Hinge, Door | $9.62 PartSelect |
| 29 |  | 279827replaces 8066206 Motor Assembly 60 HZ. | $80.43 Parts Dr |
| 30 |  | Bolt, 5/16−18 x 3/4 | $8.78 Part Advantage |
| 31 |  | WP348780replaces 348780 Base, Motor | $36.96 Part Advantage |
| 32 |  | 341241replaces 8066065 Belt Drive | $5.49 Part Advantage |
| 33 |  | W11429589replaces 3403431 Strike, Door | $8.67 Part Advantage |
| 34 |  | WP691366replaces 691366 Idler & Pulley Assembly | $4.95 Part Advantage |
| 35 |  | WP3402341replaces 3402341 Door, Rear | - |
| 36 |  | W10861227replaces 3402335 Door, Front — White | - |
| 37 |  | WP3405184replaces 3405184 Handle, Door — White | $28.39 Part Advantage |
| 38 |  | W11035878replaces 3406129 Seal & Bearing Assembly | $41.79 Part Advantage |
| 39 |  | Terminal Block Kit (For Terminal Block) | $14.05 Part Advantage |
| 40 |  | W10850756replaces 697776 Screw, 10−32 x 5/8 | $5.00 RepairClinic |
| 41 |  | WP3397659replaces 3397659 Block, Terminal | $7.79 Part Advantage |
| 42 |  | WP8066217replaces 8066217 Hinge, Top (2) | $3.38 Part Advantage |
