Model
Amana AER5821VAS0
30" Electric Freestanding Standard Clean Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
AER5821VAS030" Electric Freestanding Standard Clean Range
6 diagrams141 parts
Parts Sections (6)
Diagram

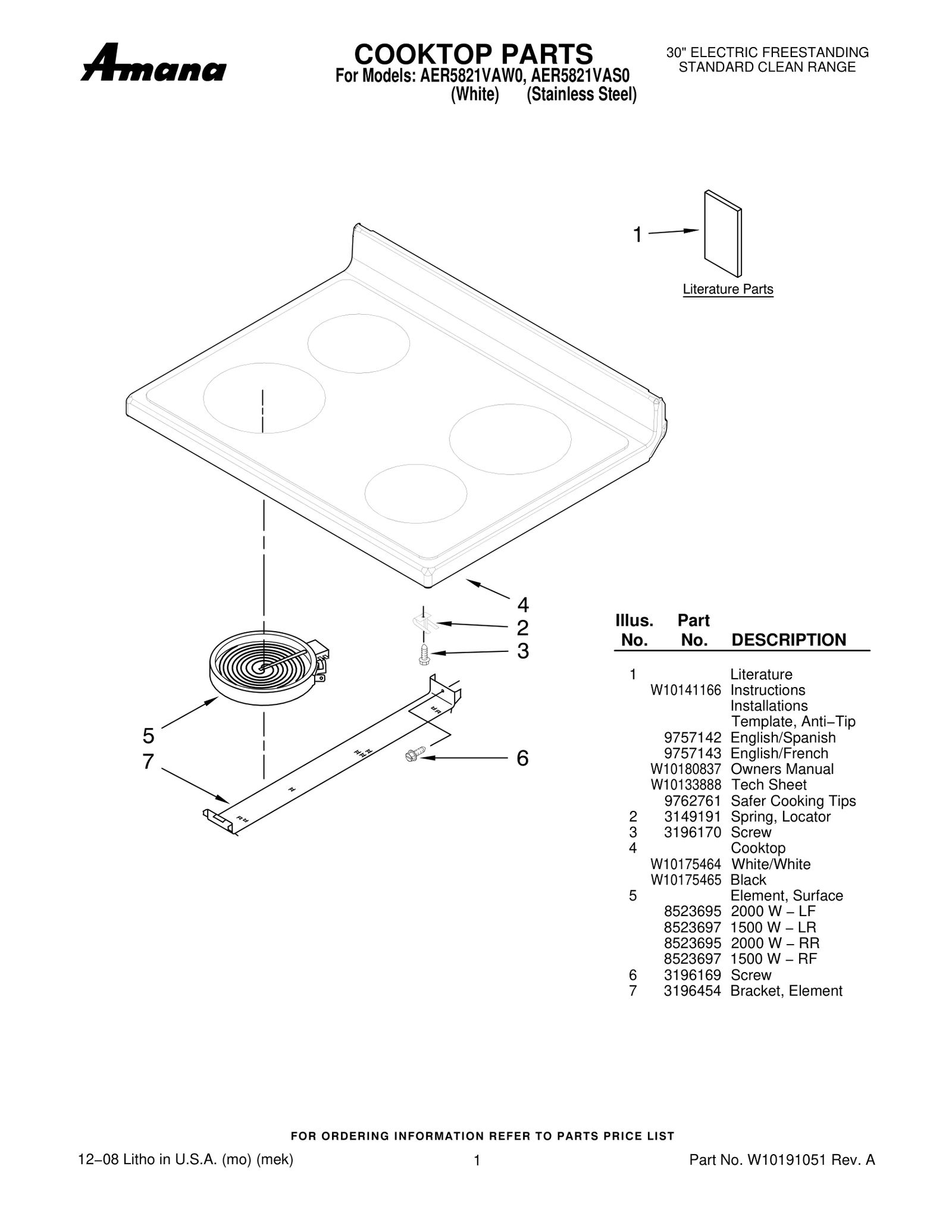

COOKTOP PARTS
Parts in COOKTOP PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10141166 Instructions | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10180837 Owners Manual | - |
| 1 | – | W10133888 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | Spring, Locator | $6.29 Parts Dr |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 4 | – | W10175464 Cooktop — White/White | - |
| 4 | – | W10175465 Cooktop — Black | - |
| 5 |  | WPW10242957replaces 8523695 Element, Surface — 2000 W − LF | $137.35 Part Advantage |
| 5 |  | W10823699replaces 8523697 Element, Surface — 1500 W − LR | $92.39 Parts Dr |
| 5 | | WPW10242957replaces 8523695 Element, Surface — 2000 W − RR | $137.35 Part Advantage |
| 5 | | W10823699replaces 8523697 Element, Surface — 1500 W − RF | $92.39 Parts Dr |
| 6 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 7 | – | 3196454 Bracket, Element | - |
