Model
Amana AFD2535DEQ14
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
AFD2535DEQ14Refrigerator
9 diagrams260 parts

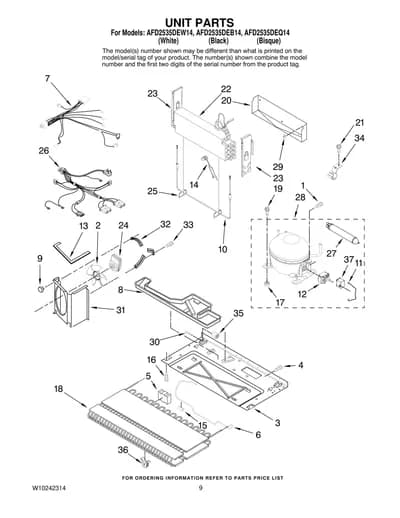

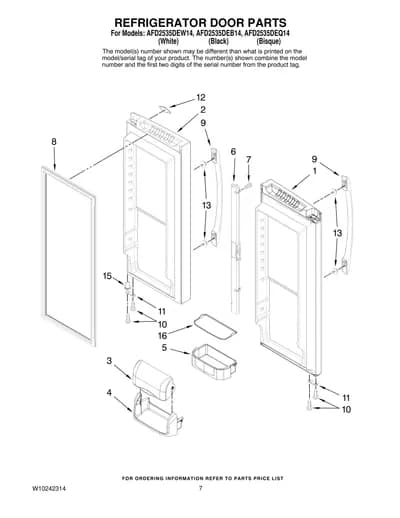

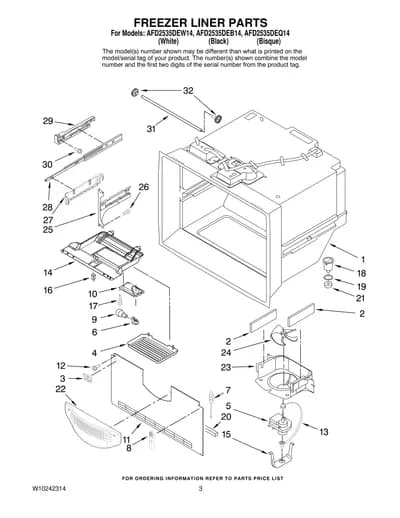

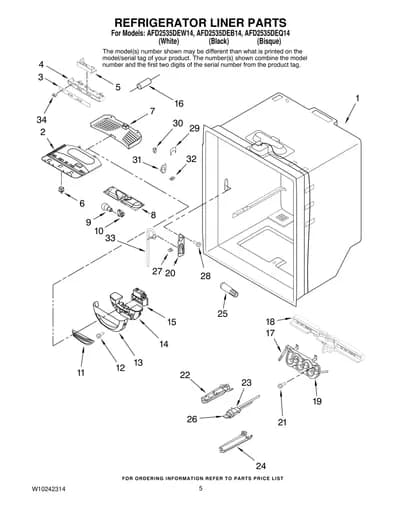

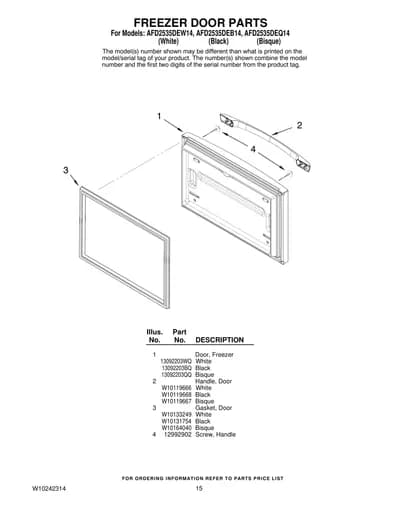

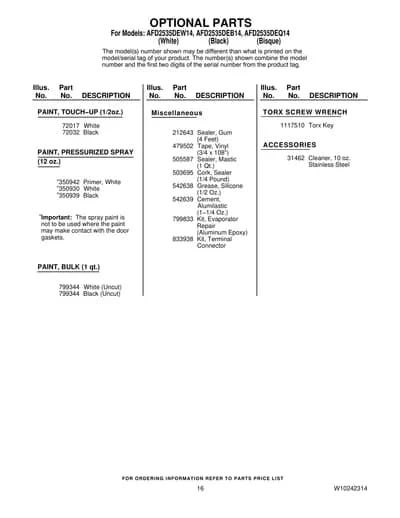

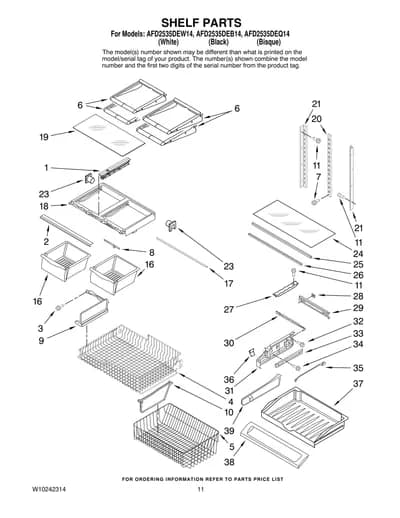

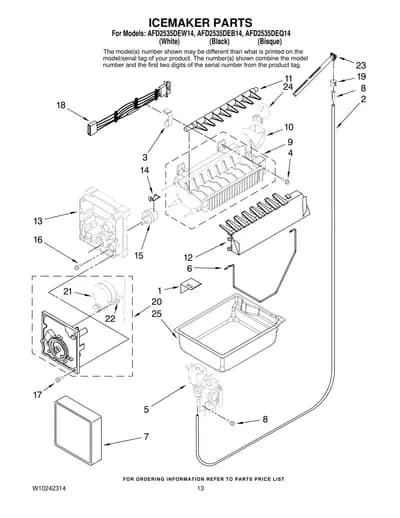

Parts Sections (9)
Diagram

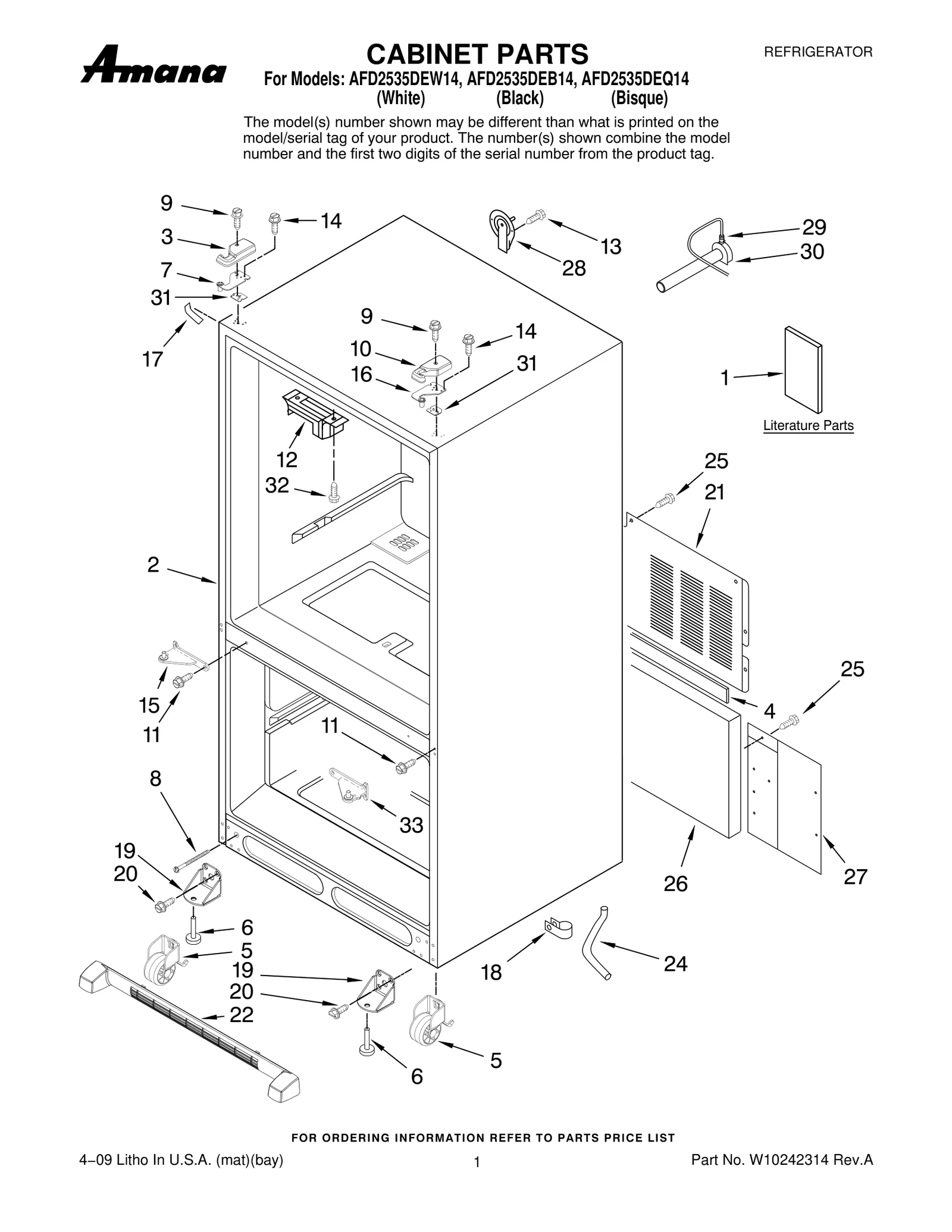

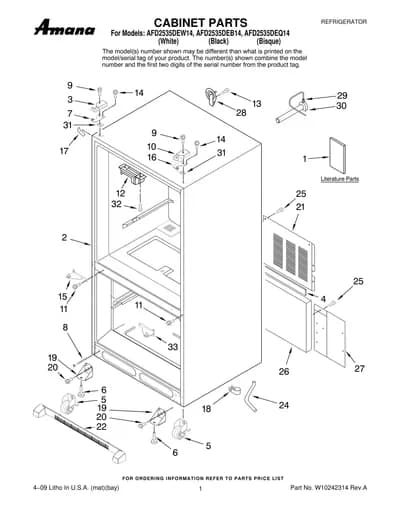

CABINET PARTS
Parts in CABINET PARTS
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10137643 Use & Care Guide | - |
| 1 | – | W10123901 Energy Guide | - |
| 1 | – | 12827952 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 | – | 12684201W Cover, Left Hinge — White | - |
| 3 |  | 12684201BNLA Cover, Left Hinge — Black | Discontinued |
| 3 | – | 12684201C Cover, Left Hinge — Bisque | - |
| 4 | – | B5759649 Gasket | - |
| 5 | – | 67006118 Roller Assy. (2) | - |
| 6 |  | W11177593replaces 67003868 Foot, Brake | $6.48 Part Advantage |
| 7 |  | WP12566607EDreplaces 12566605ED Hinge, Left Top | $51.61 PartSelect |
| 8 |  | 71003131replaces 67006611 Bolt, Adjusting | $6.21 Parts Dr |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 | – | 12684202W Cover, Right Hinge — White | - |
| 10 | | Cover, Right Hinge — Black | - |
| 10 | – | 12684202C Cover, Right Hinge — Bisque | - |
| 11 |  | WP489349replaces 67005822 Screw | $2.30 Part Advantage |
| 12 |  | WP67003405replaces 67003405 Block, Pivot | $3.55 Part Advantage |
| 13 | | 12992301replaces 67006433 Screw | - |
| 14 | | WP489349replaces 67006303 Screw (3) | $2.30 Part Advantage |
| 15 |  | W10918113replaces 67006277 Hinge, Center (LT) — White | $58.43 ApplianceParts Pro |
| 15 |  | Hinge, Center (LT) — Black | - |
| 16 |  | WP12566606EDreplaces 12566604ED Hinge, Right Top | $18.97 Parts Dr |
| 17 | | Cover, Corner — White | $13.72 RepairClinic |
| 17 |  | Cover, Corner — Black | - |
| 17 | – | 67003486 Cover, Corner — Bisque | - |
| 18 | | Clip, Drain | $6.95 ApplianceParts Pro |
| 19 |  | 12906303WDreplaces 67007174 Bracket, Foot (2) | $27.27 Parts Dr |
| 20 |  | Screw (4) | $3.74 Parts Dr |
| 21 |  | Cover, Unit | - |
| 22 |  | WPW10534154replaces 67006377 Grille, Toe — White | $78.77 PartSelect |
| 22 |  | WPW10534153replaces 67006375 Grille, Toe — Black | $56.39 Part Advantage |
| 22 | | 67006376NLA Grille, Toe — Bisque | Discontinued |
| 24 | | 67001066NLA Tube, Drain | Discontinued |
| 25 |  | Screw | $2.30 Part Advantage |
| 26 |  | Fiber, Acoustic | $11.89 Parts Dr |
| 27 | | Cover, Water Valve | - |
| 28 | | Cover, Water Line | - |
| 29 |  | WPM0114003replaces M0114003 Clip | $7.95 ApplianceParts Pro |
| 30 |  | W11176463replaces W10137519 Elbow, Fill Tube | $42.61 Part Advantage |
| 31 | – | 12579702 Shim, Top Hinge | - |
| 32 |  | WP7101P126-60replaces 67006669 Screw, Block | $3.66 Parts Dr |
| 33 | – | 67006379 Hinge, Center (RT) — White | - |
| 33 |  | W10918164replaces 67006443 Hinge, Center (RT) — Black | $49.48 Parts Dr |
