Model
Whirlpool AGG222VDW0
20" Gas Freestanding Standard Clean Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
AGG222VDW020" Gas Freestanding Standard Clean Range
7 diagrams162 parts
Parts Sections (7)
Diagram

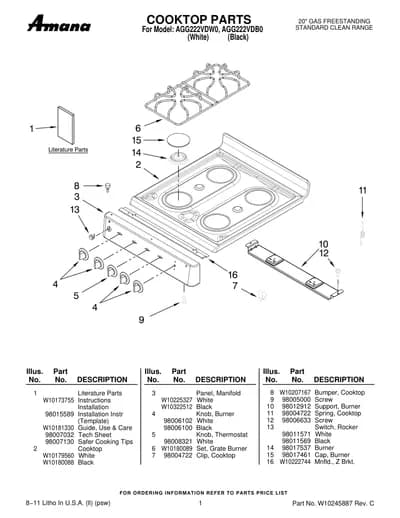

COOKTOP PARTS
Parts in COOKTOP PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10173755 Instructions Installation | - |
| 1 | – | 98015589 Installation Instr | - |
| 1 | – | W10181330 Guide, Use & Care | - |
| 1 | – | 98007032 Tech Sheet | - |
| 1 | – | 98007130 Safer Cooking Tips | - |
| 2 |  | WPW10179560replaces W10179560 Cooktop — White | $133.07 Part Advantage |
| 2 |  | WPW10180088replaces W10180088 Cooktop — Black | - |
| 3 | | Panel, Manifold — White | - |
| 3 | | WPW10322512replaces W10322512 Panel, Manifold — Black | - |
| 4 |  | WP98006102replaces 98006102 Knob, Burner — White | $9.38 Part Advantage |
| 4 |  | WP98006100replaces 98006100 Knob, Burner — Black | $12.46 Part Advantage |
| 5 |  | WP98008321replaces 98008321 Knob, Thermostat — White | $12.01 Parts Dr |
| 6 |  | WPW10180089replaces W10180089 Set, Grate Burner | $61.30 RepairClinic |
| 7 |  | W11229684replaces 98004722 Clip, Cooktop | $6.02 Parts Dr |
| 8 | | Bumper, Cooktop | - |
| 9 |  | W11233072replaces 98005000 Screw | $8.78 Part Advantage |
| 10 | | Support, Burner | - |
| 11 | | W11229684replaces 98004722 Spring, Cooktop | $6.02 Parts Dr |
| 12 |  | W10837731replaces 98006633 Screw | $2.30 Part Advantage |
| 13 | | Switch, Rocker — White | - |
| 13 | | Switch, Rocker — Black | - |
| 14 |  | WP98017537replaces 98017537 Burner | $33.99 Parts Dr |
| 15 |  | WP98017461replaces 98017461 Cap, Burner | $30.42 Part Advantage |
| 16 | | Mnfld., Z Brkt. | - |
