Model
Amana AGR4422VDW0
30" Gas Freestanding Standard Clean Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
AGR4422VDW030" Gas Freestanding Standard Clean Range
7 diagrams185 parts
Parts Sections (7)
Diagram

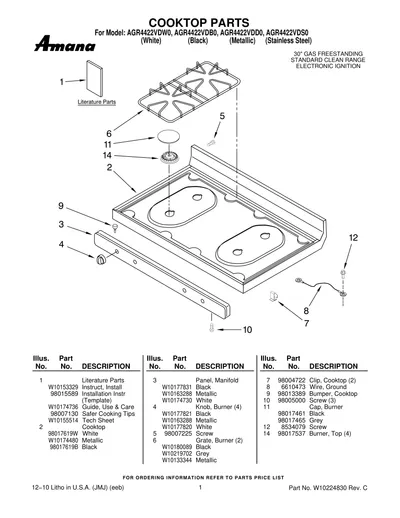

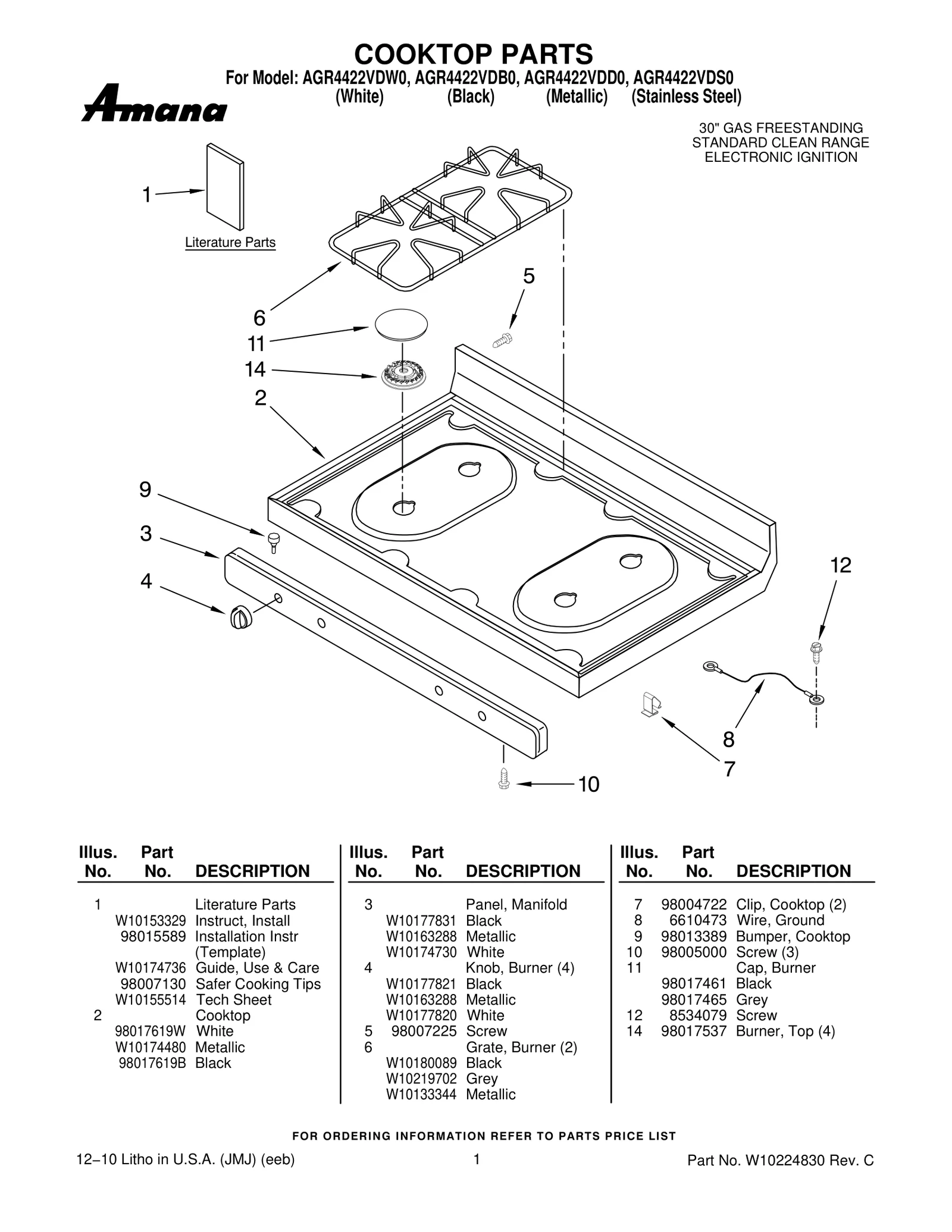

COOKTOP PARTS
Parts in COOKTOP PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10153329 Instruct, Install | - |
| 1 | – | 98015589 Installation Instr | - |
| 1 | – | W10174736 Guide, Use & Care | - |
| 1 | – | 98007130 Safer Cooking Tips | - |
| 1 | – | W10155514 Tech Sheet | - |
| 2 |  | WP98017619Wreplaces 98017619W Cooktop — White | - |
| 2 | – | W10174480 Cooktop — Metallic | - |
| 2 |  | 98017619BNLA Cooktop — Black | Discontinued |
| 3 | – | W10177831 Panel, Manifold — Black | - |
| 3 |  | W11190817replaces W10163288 Panel, Manifold — Metallic | $59.95 ApplianceParts Pro |
| 3 | – | W10174730 Panel, Manifold — White | - |
| 4 | | Knob, Burner (4) — Black | - |
| 4 | | W11190817replaces W10163288 Knob, Burner (4) — Metallic | $59.95 ApplianceParts Pro |
| 4 | – | W10177820 Knob, Burner (4) — White | - |
| 5 |  | WP98007225replaces 98007225 Screw | $3.74 Parts Dr |
| 6 |  | WPW10180089replaces W10180089 Grate, Burner (2) — Black | $61.30 RepairClinic |
| 6 | | WPW10180089replaces W10219702 Grate, Burner (2) — Grey | $61.30 RepairClinic |
| 6 | | WPW10180089replaces W10133344 Grate, Burner (2) — Metallic | $61.30 RepairClinic |
| 7 |  | W11229684replaces 98004722 Clip, Cooktop (2) | $6.02 Parts Dr |
| 8 |  | 3184020replaces 6610473 Wire, Ground | $50.57 ApplianceParts Pro |
| 9 |  | W10831827replaces 98013389 Bumper, Cooktop | $10.33 Parts Dr |
| 10 |  | W11233072replaces 98005000 Screw (3) | $8.78 Part Advantage |
| 11 |  | WP98017461replaces 98017461 Cap, Burner — Black | $30.42 Part Advantage |
| 11 | | WP98017461replaces 98017465 Cap, Burner — Grey | $30.42 Part Advantage |
| 12 |  | W10850756replaces 8534079 Screw | $5.00 RepairClinic |
| 14 |  | WP98017537replaces 98017537 Burner, Top (4) | $33.99 Parts Dr |
