Model
Amana AGR6011VDB0
30" Gas Freestanding Self Clean Range Sealed Burner
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
AGR6011VDB030" Gas Freestanding Self Clean Range Sealed Burner
7 diagrams200 parts
Parts Sections (7)
Diagram

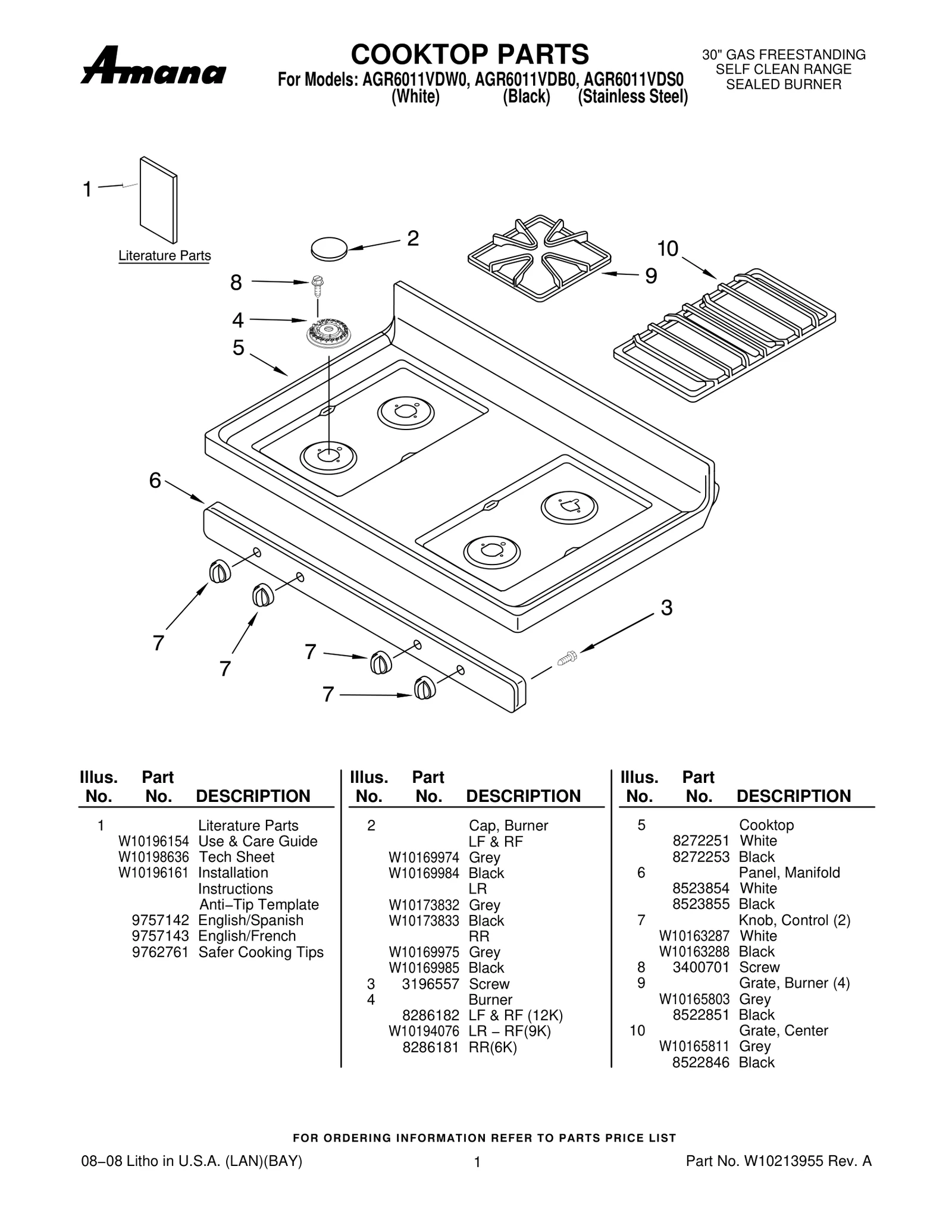

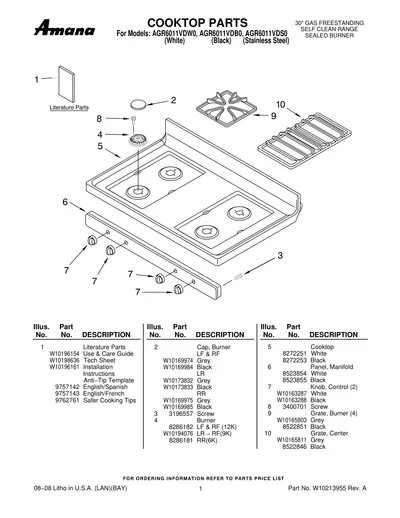

COOKTOP PARTS
Parts in COOKTOP PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10196154 Use & Care Guide | - |
| 1 | – | W10198636 Tech Sheet | - |
| 1 | – | W10196161 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WPW10169974replaces W10169974 Cap, Burner LF & RF — Grey | $43.95 ApplianceParts Pro |
| 2 |  | WPW10169984replaces W10169984 Cap, Burner LF & RF — Black | $50.56 PartSelect |
| 2 |  | WPW10173832replaces W10173832 Cap, Burner LF & RF — Grey | $55.29 PartSelect |
| 2 | | WPW10173833replaces W10173833 Cap, Burner LF & RF — Black | - |
| 2 |  | WPW10169975replaces W10169975 Cap, Burner LF & RF — Grey | - |
| 2 |  | WPW10169985replaces W10169985 Cap, Burner LF & RF — Black | $55.29 PartSelect |
| 3 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
| 4 |  | WPW10406797replaces 8286182 LF & RF (12K) | $33.54 Part Advantage |
| 4 |  | WPW10406283replaces W10194076 LR − RF(9K) | $37.32 Part Advantage |
| 4 |  | WPW10406243replaces 8286181 RR(6K) | $12.98 Part Advantage |
| 5 |  | W11213959replaces 8272251 Cooktop — White | - |
| 5 |  | W11213958replaces 8272253 Cooktop — Black | - |
| 6 |  | WP8523854replaces 8523854 Panel, Manifold — White | $137.95 ApplianceParts Pro |
| 6 |  | Panel, Manifold — Black | - |
| 7 |  | WPW10163287replaces W10163287 Knob, Control (2) — White | $32.15 RepairClinic |
| 7 |  | W11190817replaces W10163288 Knob, Control (2) — Black | $59.95 ApplianceParts Pro |
| 8 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 9 |  | WPW10447925replaces W10165803 Grate, Burner (4) — Grey | $197.17 Parts Dr |
| 9 | | WPW10447925replaces 8522851 Grate, Burner (4) — Black | $197.17 Parts Dr |
| 10 | – | W10165811 Grate, Center — Grey | - |
| 10 | | 8522846NLA Grate, Center — Black | Discontinued |
