Model
Amana AMC7159TAS0
Convection Microwave Oven
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
AMC7159TAS0Convection Microwave Oven
7 diagrams93 parts
Parts Sections (7)
Diagram

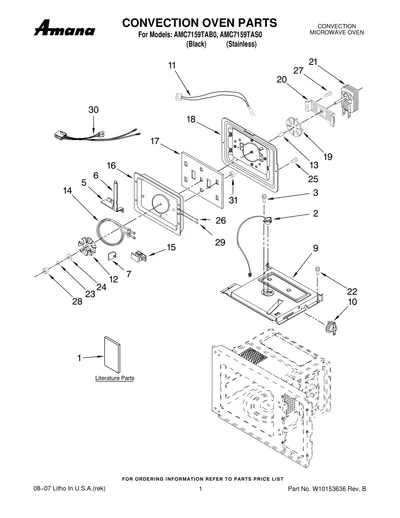

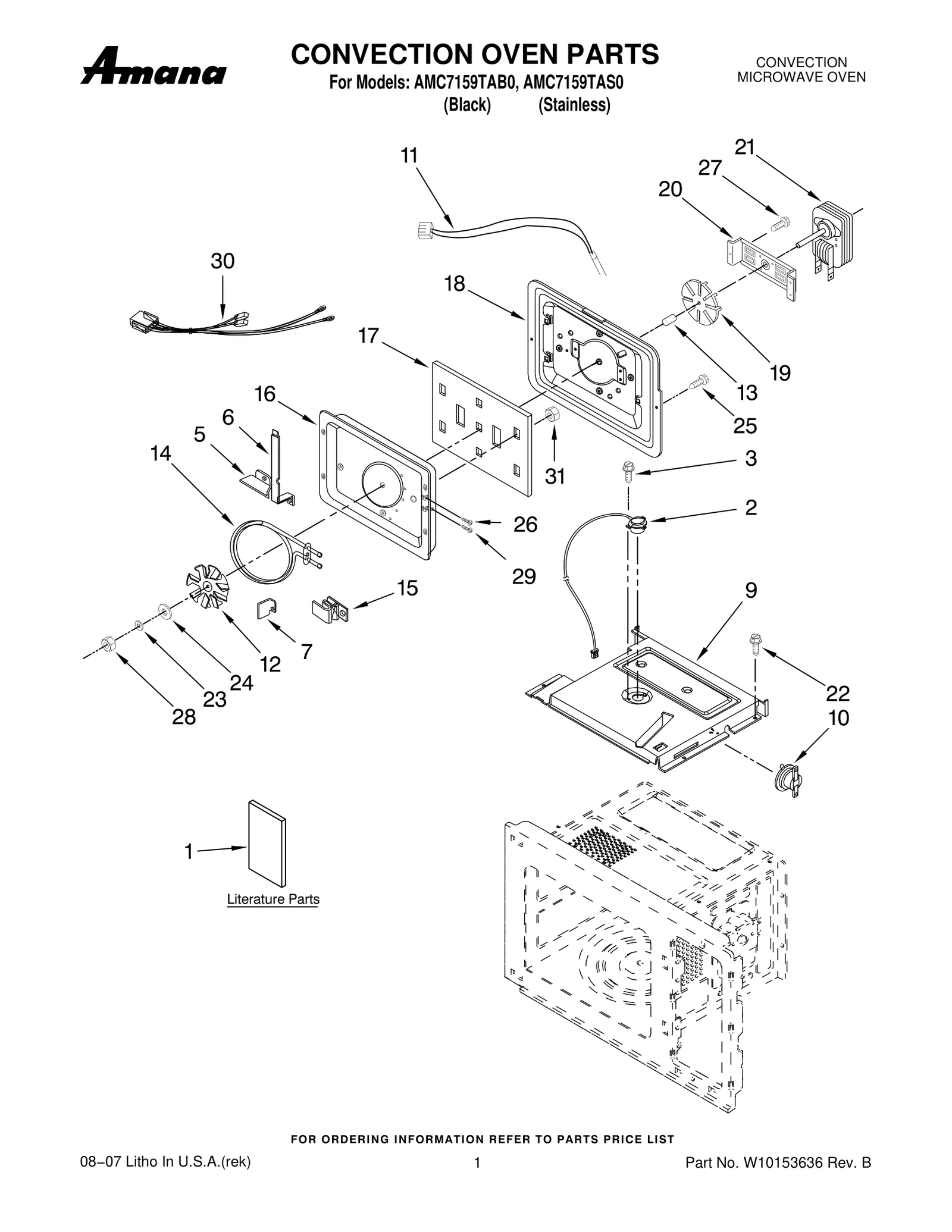

CONVECTION OVEN PARTS
Parts in CONVECTION OVEN PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10134751 U & C Guide | - |
| 1 | – | W10153569 Service Manual Cooking Guide | - |
| 1 | – | W10134321 English | - |
| 1 | – | W10134324 Tech Sheet | - |
| 2 | – | 8171878 Sensor | - |
| 3 | – | 4358450 Screw | - |
| 5 | – | 8183575 Bracket, Center | - |
| 6 | – | 8183574 Bracket, Left | - |
| 7 | – | 8183576 Bracket, Lower | - |
| 9 | – | W10153234 Insulator | - |
| 10 |  | 8183694NLA Thermostat | Discontinued |
| 11 | | Thermistor | - |
| 12 | | Fan | - |
| 13 | – | 4358460 Bushing | - |
| 14 | | Convection Element | - |
| 15 | – | 8183577 Clip, Conv Element | - |
| 16 | | Duct, Magnetron | - |
| 17 | – | W10153235 Insulation | - |
| 18 | – | 8183566 Shield, Back Insul | - |
| 19 | | Fan Blade | - |
| 20 | – | 4358467 Bracket, Convection Motor | - |
| 21 | | 8183565NLA Convection Motor | Discontinued |
| 22 |  | W11380570replaces 4358192 Screw | $10.98 Parts Dr |
| 23 |  | WP8533914replaces 4358477 Washer | $2.63 RepairClinic |
| 24 | – | 4358478 Washer | - |
| 25 |  | W11245710replaces 4358362 Screw | $10.70 Parts Dr |
| 26 | – | 8183572 Screw | - |
| 27 | | W11380570replaces 4358380 Screw | $10.98 Parts Dr |
| 28 | – | 4358476 Nut | - |
| 29 |  | 4344826replaces 4358474 Screw | $10.70 ApplianceParts Pro |
| 30 | – | 8183591 Harness, Wire | - |
| 31 | – | 4358475 Nut | - |
