ModelAmana
AMV2174VAB1Microwave Oven 1.7 Cu. Ft.
6 diagrams96 parts
Parts Sections (6)
Diagram

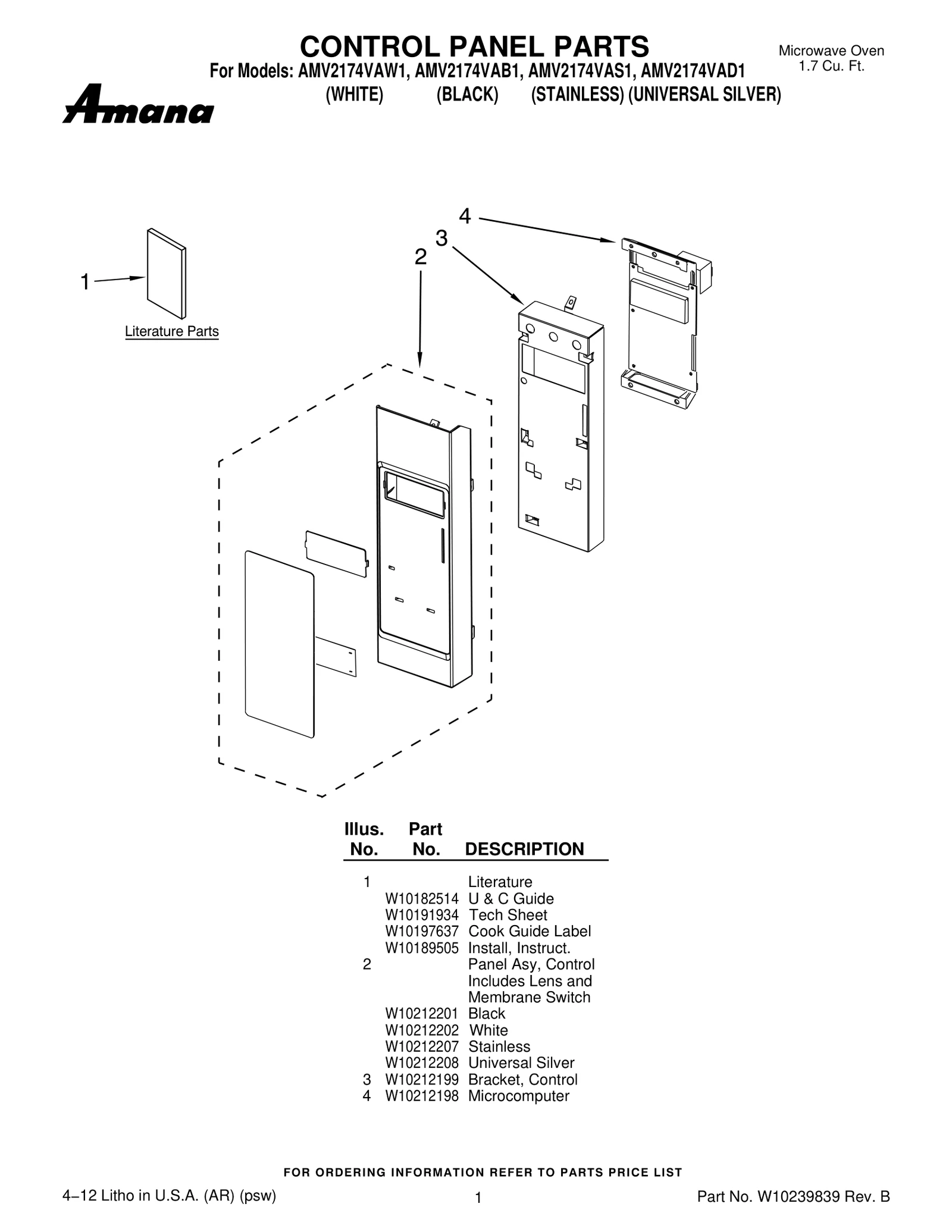

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10182514 U & C Guide | - |
| 1 | – | W10191934 Tech Sheet | - |
| 1 | – | W10197637 Cook Guide Label | - |
| 1 | – | W10189505 Install, Instruct. | - |
| 2 |  | Panel Asy, Control Includes Lens and Membrane Switch — Black | - |
| 2 | – | W10212202 Panel Asy, Control Includes Lens and Membrane Switch — White | - |
| 2 | | Panel Asy, Control Includes Lens and Membrane Switch — Stainless | - |
| 2 | – | W10212208 Panel Asy, Control Includes Lens and Membrane Switch — Universal Silver | - |
| 3 | – | W10212199 Bracket, Control | - |
| 4 | | WPW10212198replaces W10212198 Microcomputer 4−12 Litho in U.S.A. (AR) (psw) | - |
