Model
Amana ATB1822MRS01
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ATB1822MRS01Refrigerator
6 diagrams161 parts
Parts Sections (6)
Diagram

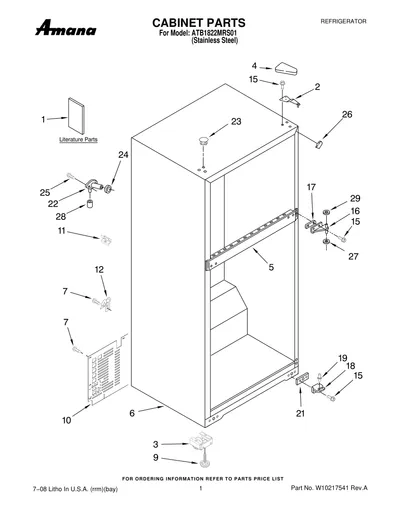

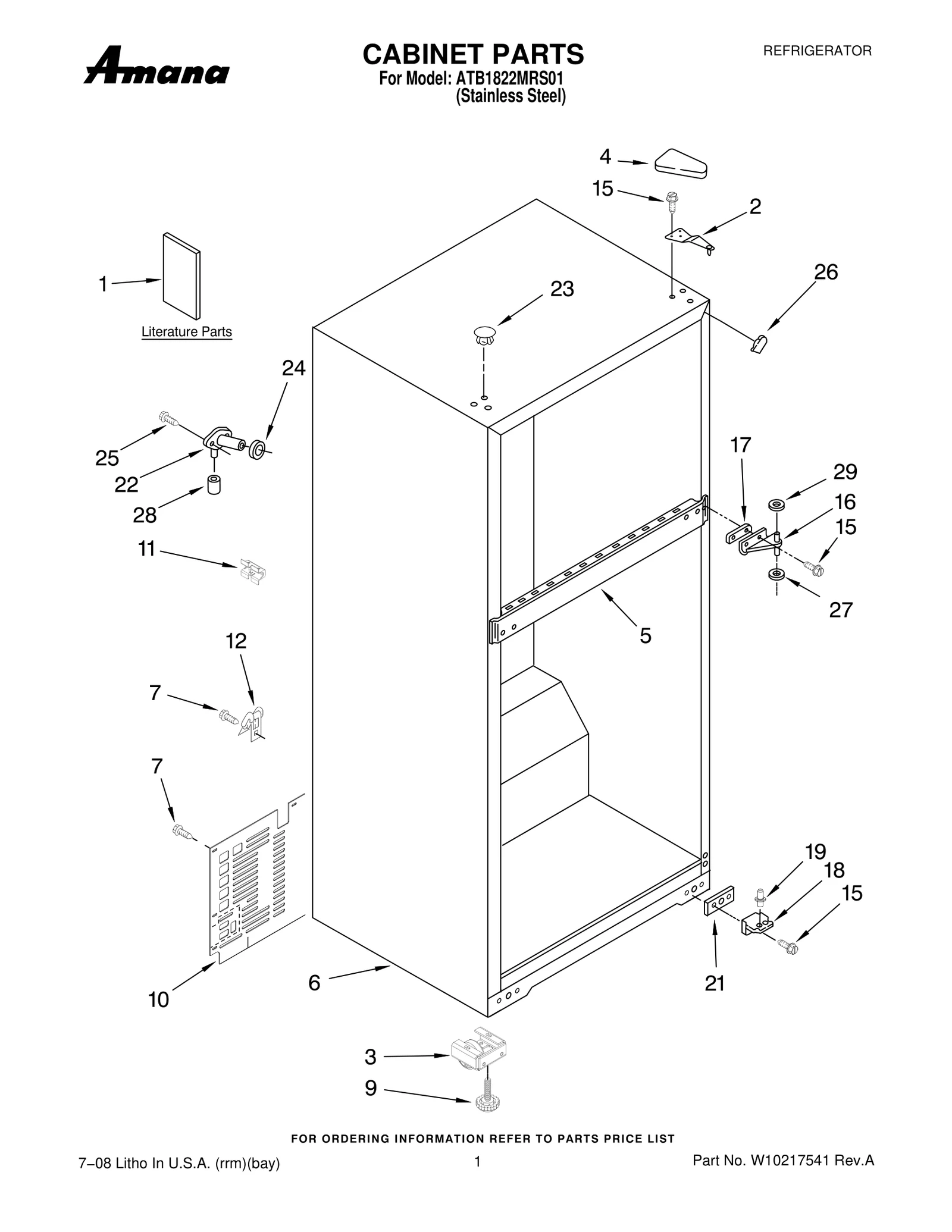

CABINET PARTS
Parts in CABINET PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2265591 Service & Wiring | - |
| 1 | – | W10187772 Energy Label | - |
| 1 | – | W10214129 Use & Care Guide | - |
| 1 |  | 677969NLA Do−It−Yourself | Discontinued |
| 2 |  | WP2261963replaces 2261963 Hinge (Top) | $41.83 Part Advantage |
| 3 |  | WPW10142530replaces W10142530 Roller−Front | $43.20 Parts Dr |
| 4 |  | WP2213363replaces 2213363 Cover, Hinge — Black | $11.95 ApplianceParts Pro |
| 5 | – | N/S Center Rail (Not a Serviceable Part) | - |
| 6 | – | N/S Cabinet (Not a Serviceable Part) | - |
| 7 |  | WP489442replaces 489442 Screw | $7.95 ApplianceParts Pro |
| 9 |  | WPW10133299replaces W10133299 Leveler Screw 45mm | $8.18 RepairClinic |
| 10 |  | WP2264132replaces 2264132 Cover, Unit | - |
| 11 |  | Spacer−Back−CB | $9.37 ApplianceParts Pro |
| 12 |  | Clamp−Cord | - |
| 15 |  | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 16 |  | WP2166037replaces 2166086 Hinge, Center | $49.72 Part Advantage |
| 17 |  | Shim, Hinge Center | - |
| 18 |  | WP2325482replaces 2325482 Hinge Butt | $33.11 Parts Dr |
| 19 |  | WP2325483replaces 2325483 Hinge−Pin | $3.38 Part Advantage |
| 21 |  | WP2201567replaces 2201567 Shim, Bottom Hinge | $5.95 ApplianceParts Pro |
| 22 |  | WP2196157replaces 2174760 Fitting, Water Tube | $4.42 Part Advantage |
| 23 |  | WP2183998replaces 2183998 Hole Plug (6) — Black | $10.75 ApplianceParts Pro |
| 24 |  | WP1106508replaces 1106508 Seal | $6.42 ApplianceParts Pro |
| 25 |  | WP488729replaces 2262176 Screw | $2.41 Part Advantage |
| 26 |  | W11500943replaces 2215384 Corner Filler — Black | $3.62 Parts Dr |
| 27 |  | WP487576replaces 487576 Washer | $4.19 Part Advantage |
| 28 |  | WP487996replaces 487996 Cap Bushing | $6.95 ApplianceParts Pro |
| 29 |  | WP487802replaces 487802 Washer | $2.30 Part Advantage |
