ModelAmana
ATB2232MRW01Refrigerator
6 diagrams190 parts
Parts Sections (6)
Diagram

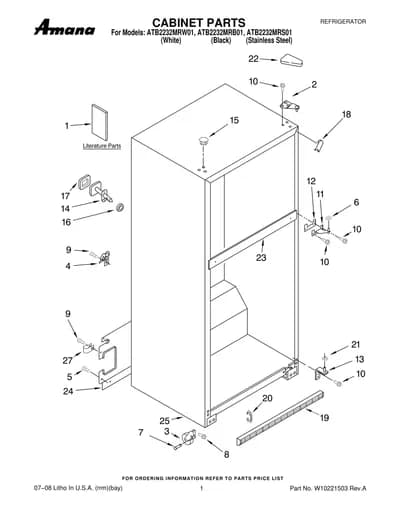

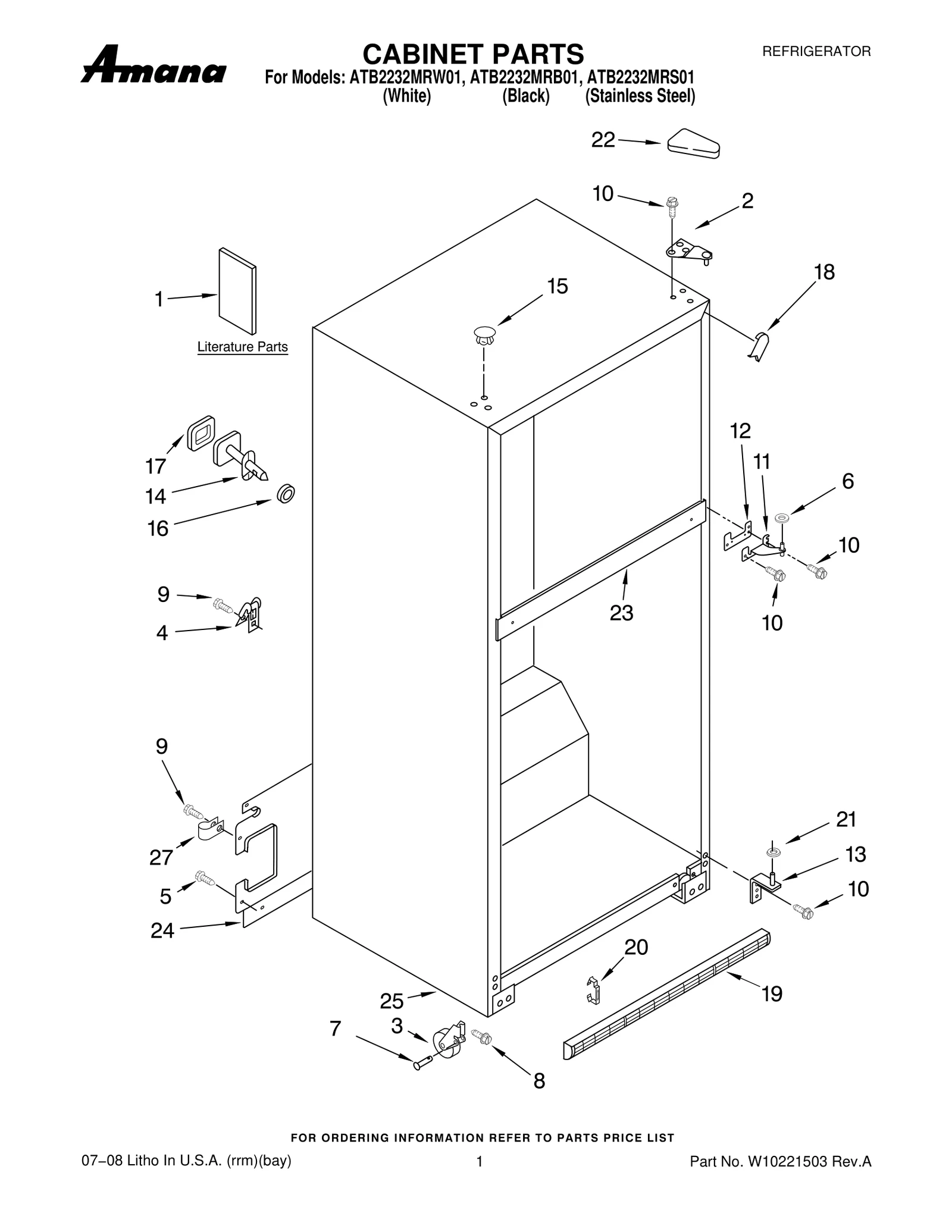

CABINET PARTS
Parts in CABINET PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10142142 Service & | - |
| 1 | – | W10206574 Energy Label | - |
| 1 | – | W10208848 Bilingual | - |
| 1 | – | W10208847 Trilingual | - |
| 1 |  | 677969NLA Do−It−Yourself | Discontinued |
| 2 |  | WP2261963replaces 2189410 Hinge (Top) | $41.83 Part Advantage |
| 3 |  | WP2166108replaces 2166108 Roller, Front (2) | $12.38 Part Advantage |
| 4 |  | Clamp−Service Cord | - |
| 5 |  | WP489427replaces 489427 Screw | $5.00 RepairClinic |
| 6 |  | WP489467replaces 489341 Washer | $4.20 Part Advantage |
| 7 |  | W11594405replaces 2179826 Rivet | $6.31 Part Advantage |
| 8 |  | WP3400504replaces 3400504 Screw | $5.00 RepairClinic |
| 9 |  | WP489464replaces 8281265 Screw | $9.62 PartSelect |
| 10 |  | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 11 |  | WP2254618replaces 2254618 Hinge, Center | $25.53 Part Advantage |
| 12 |  | WP2183852replaces 2183852 Shim, Hinge Center | $5.91 Parts Dr |
| 13 |  | WP2254473replaces 2254473 Hinge Butt | $3.38 Part Advantage |
| 14 | – | N/S Fitting, Water Tube | - |
| 15 |  | WP2151652replaces 2201012 Hole Plug (6) — White | $7.50 Part Advantage |
| 15 |  | WP2183998replaces 2183998 Hole Plug (6) — Black | $10.75 ApplianceParts Pro |
| 16 | – | N/S Seal, Front | - |
| 17 | – | N/S Seal, Rear | - |
| 18 |  | WPW10283959replaces 2201014 Corner Filler (2) — White | $3.38 Part Advantage |
| 18 |  | W11252732replaces 2201017 Corner Filler (2) — Black | $8.95 ApplianceParts Pro |
| 19 |  | 2254313NLA Grille (Includes — White | Discontinued |
| 19 | | 2254315NLA Grille (Includes — Black | Discontinued |
| 20 | | 2189356NLA Clip, Grille (2) | Discontinued |
| 21 |  | WP487576replaces 487576 Washer | $4.19 Part Advantage |
| 22 |  | WP2213360replaces 2213360 Cover, Hinge — White | $12.92 ApplianceParts Pro |
| 22 |  | WP2213363replaces 2213363 Cover, Hinge — Black | $11.95 ApplianceParts Pro |
| 23 | – | N/S Rail, Center | - |
| 24 | | 2254576NLA Cover, Unit | Discontinued |
| 25 | – | N/S Cabinet (Not a Serviceable Part) | - |
| 27 |  | WP488366replaces 489385 Tube Clamp | $5.75 Parts Dr |
