Model
Amana ATF1822MRE01
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
ATF1822MRE01Refrigerator
7 diagrams186 parts

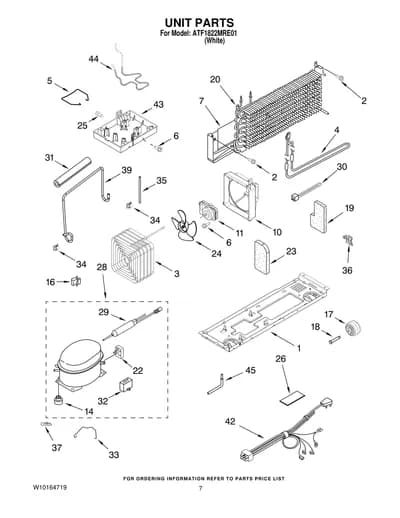

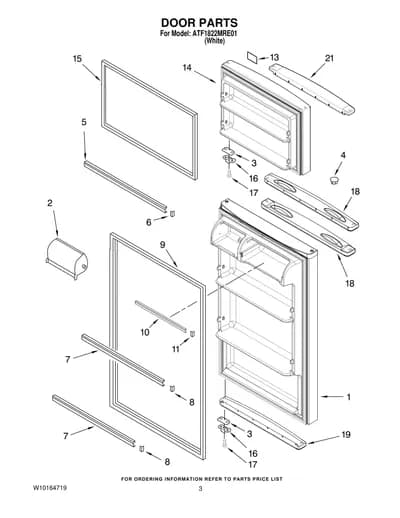

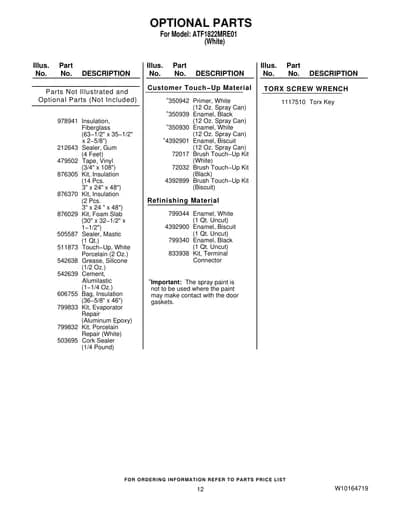

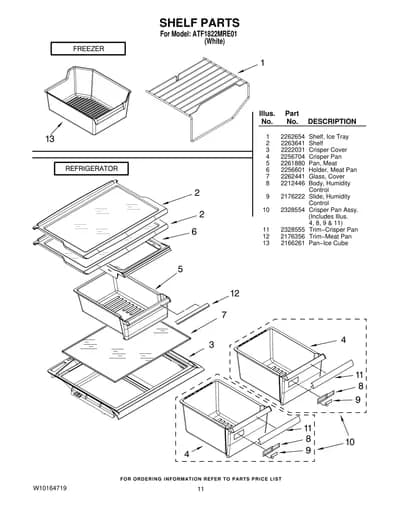

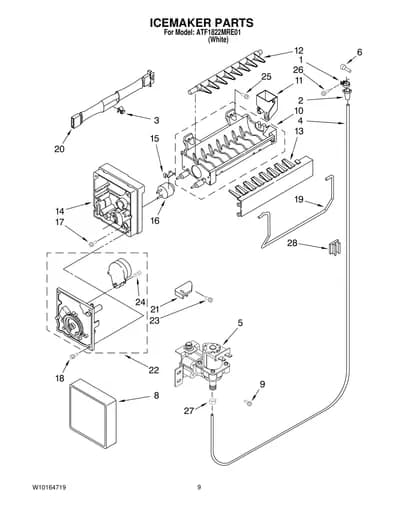

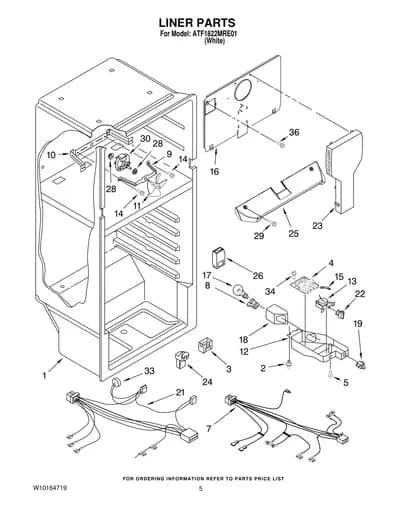

Parts Sections (7)
Diagram

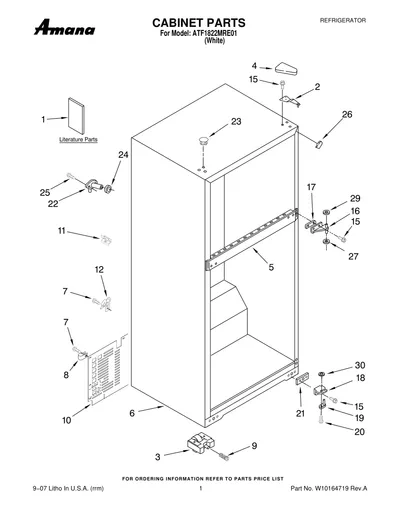

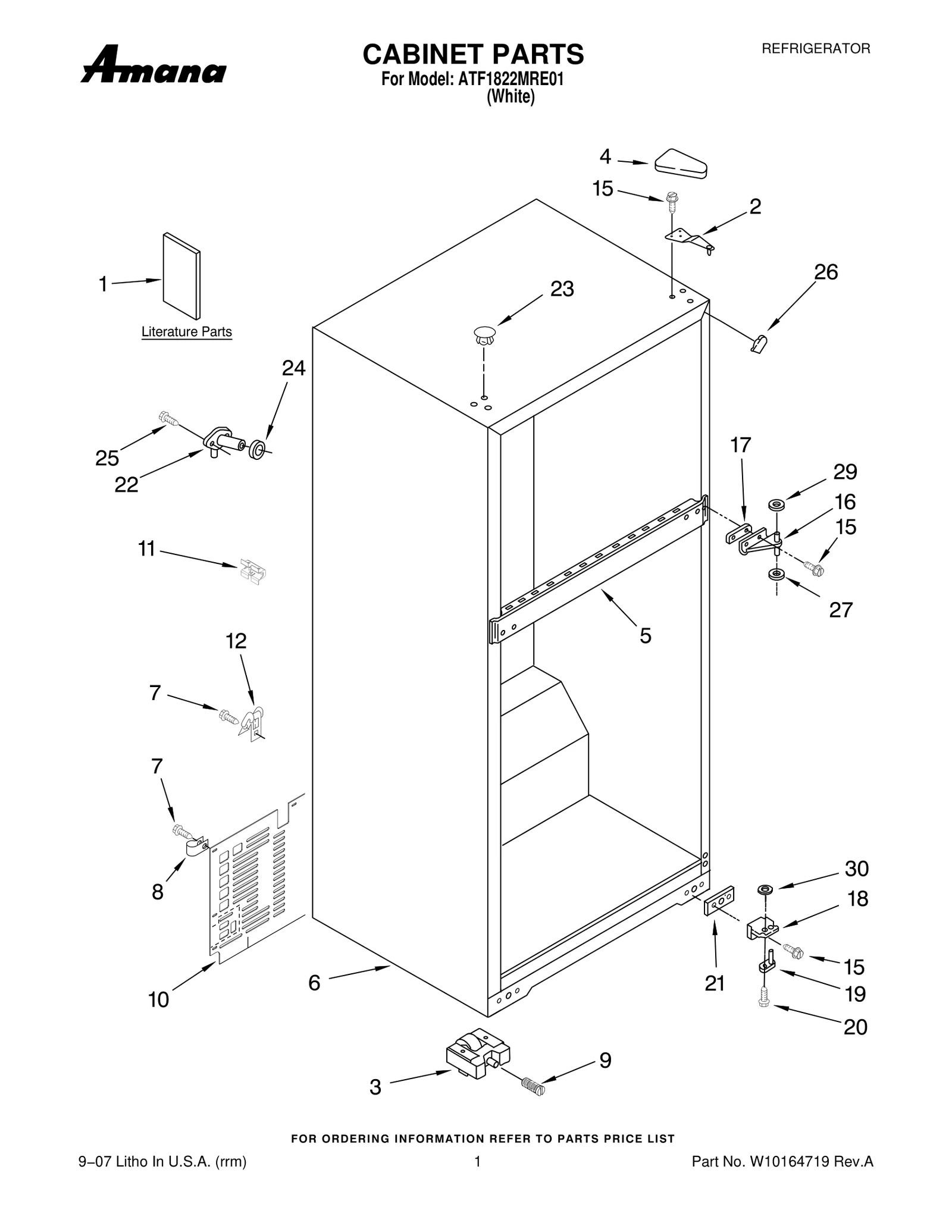

CABINET PARTS
Parts in CABINET PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2265591 Service & Wiring | - |
| 1 | – | W10162920 Energy Label | - |
| 1 | – | W10154917 Use & Care Guide | - |
| 1 |  | 628370NLA Modular Ice Maker | Discontinued |
| 1 |  | 677969NLA Do−It−Yourself | Discontinued |
| 2 |  | WP2261963replaces 2261963 Hinge (Top) | $41.83 Part Advantage |
| 3 |  | Roller−Front | - |
| 4 |  | WP2213360replaces 2213360 Cover, Hinge | $12.92 ApplianceParts Pro |
| 5 | – | N/S Center Rail (Not a Serviceable Part) | - |
| 6 | – | N/S Cabinet (Not a Serviceable Part) | - |
| 7 |  | WP489442replaces 489442 Screw | $7.95 ApplianceParts Pro |
| 8 |  | WP488366replaces 489385 Clamp−Tube | $5.75 Parts Dr |
| 9 |  | Screw | - |
| 10 |  | WP2264132replaces 2266389 Cover, Unit | - |
| 11 |  | Spacer−Back−CB | $9.37 ApplianceParts Pro |
| 12 |  | Clamp−Cord | - |
| 15 |  | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 16 |  | WP2166037replaces 2166086 Hinge, Center | $49.72 Part Advantage |
| 17 |  | Shim, Hinge Center | $26.61 Parts Dr |
| 18 |  | WP2325482replaces 2221926 Hinge Butt | $33.11 Parts Dr |
| 19 | | 9791682NLA Hinge−Pin | Discontinued |
| 20 |  | WP3428970replaces 3428970 Screw | $5.75 Parts Dr |
| 21 |  | WP2201567replaces 2201567 Shim, Bottom Hinge | $5.95 ApplianceParts Pro |
| 22 |  | WP2196157replaces 2174760 Fitting, Water Tube | $4.42 Part Advantage |
| 23 |  | WP2151652replaces 2201012 Hole Plug (6) | $7.50 Part Advantage |
| 24 |  | WP1106508replaces 1106508 Seal | $6.42 ApplianceParts Pro |
| 25 |  | WP488729replaces 2262176 Screw | $2.41 Part Advantage |
| 26 |  | W10859322replaces 2166003 Corner Filler | $9.57 ApplianceParts Pro |
| 27 |  | WP487576replaces 487576 Washer | $4.19 Part Advantage |
| 29 |  | WP489467replaces 489341 Washer | $4.20 Part Advantage |
| 30 |  | WP488296replaces 488296 Washer | $3.38 Part Advantage |
