Model
Crosley CAR24CSS2
Air Conditioner
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelCrosley
CAR24CSS2Air Conditioner
5 diagrams88 parts
Parts Sections (5)
Diagram

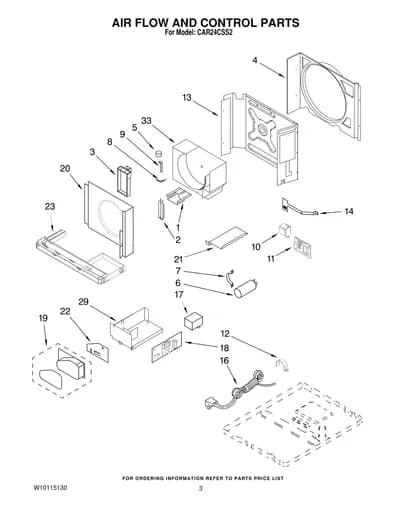

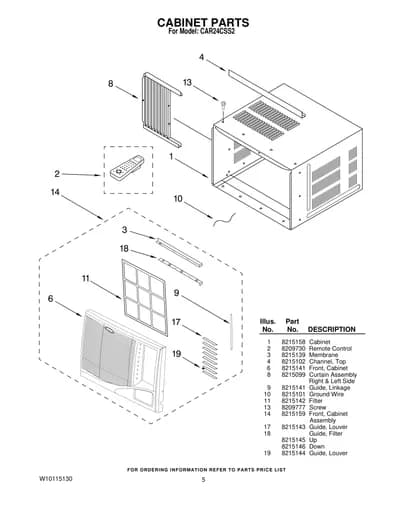

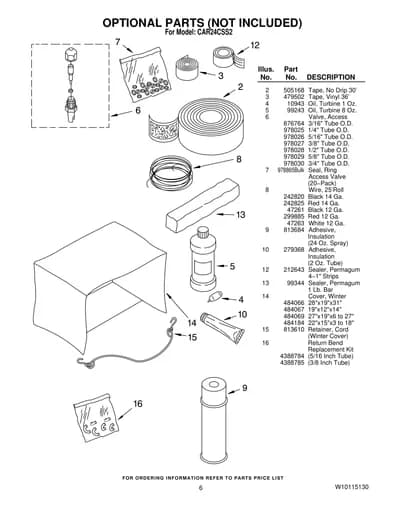

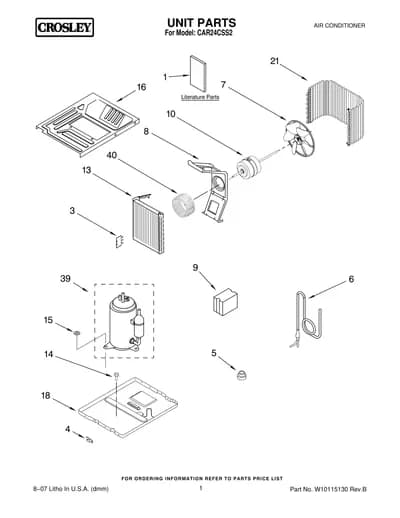

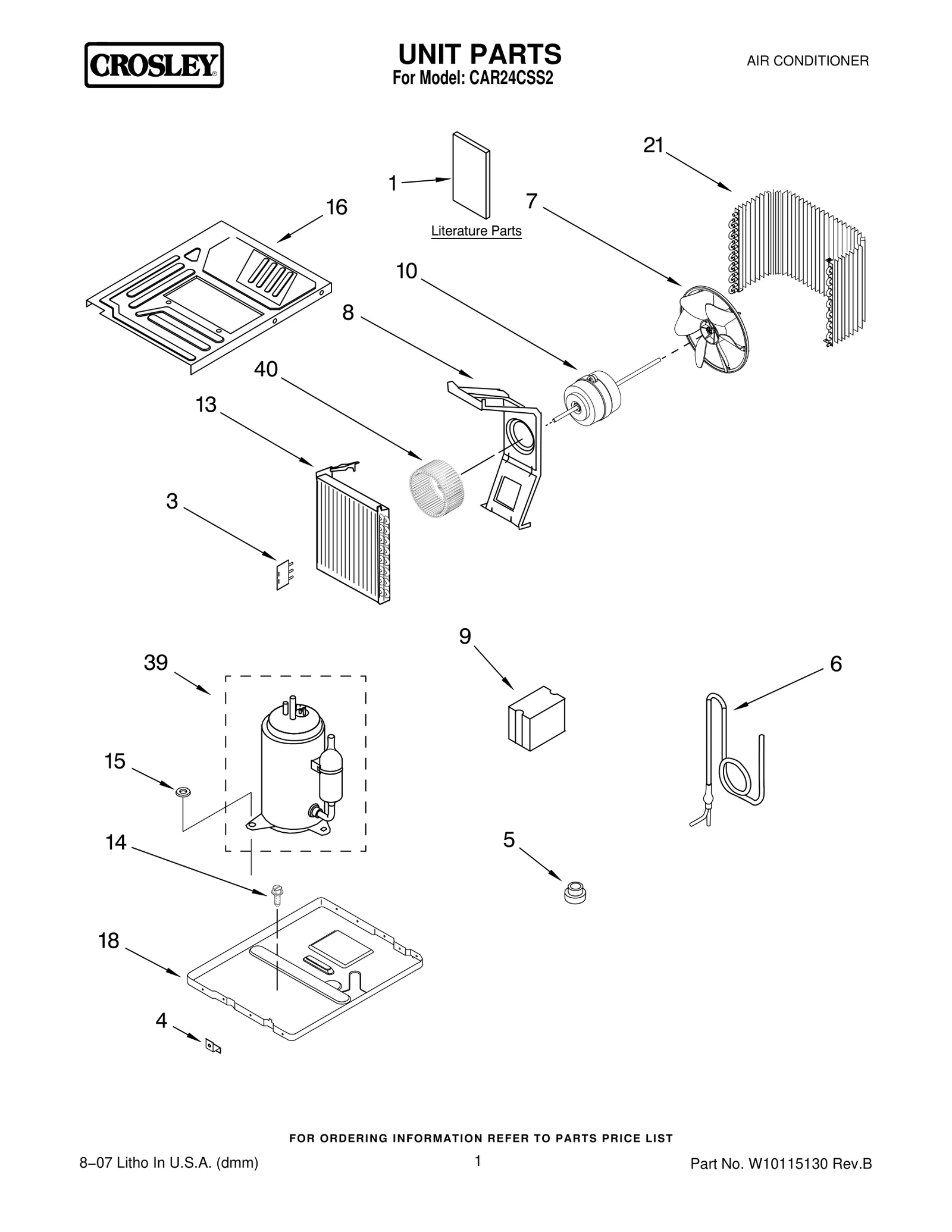

UNIT PARTS
Parts in UNIT PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8215242 Wiring Diagram | - |
| 1 | – | 8215246 Use & Care Guide | - |
| 1 | – | 8215245 Energy Guide | - |
| 3 | – | 8209771 Support, Tube Sensor | - |
| 4 | – | 8215148 Clip | - |
| 5 | – | 8215149 Drain Plug | - |
| 6 | – | 8215155 Tube, Restrictor | - |
| 7 | – | 8215104 Blade, Fan | - |
| 8 | – | 8215107 Bracket, Fan Motor | - |
| 9 | – | 8215130 Relay | - |
| 10 | – | 8215150 Motor, Fan | - |
| 13 | – | 8215121 Evaporator | - |
| 14 |  | W11245710replaces 8209688 Screw (5) | $10.70 Parts Dr |
| 15 | – | 8215154 Gasket | - |
| 16 | – | 8215125 Cover, Evaporator | - |
| 18 | – | 8215157 Base | - |
| 21 | – | 8215069 Condenser | - |
| 39 | – | 8215153 Compressor Assy. With Overload | - |
| 40 | – | 8215118 Wheel, Blower REFRIGERANT CHARGE 33.50 oz. | - |
