Model
Crosley CB19G7W13
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelCrosley
CB19G7W13Refrigerator
8 diagrams211 parts
Parts Sections (8)
Diagram

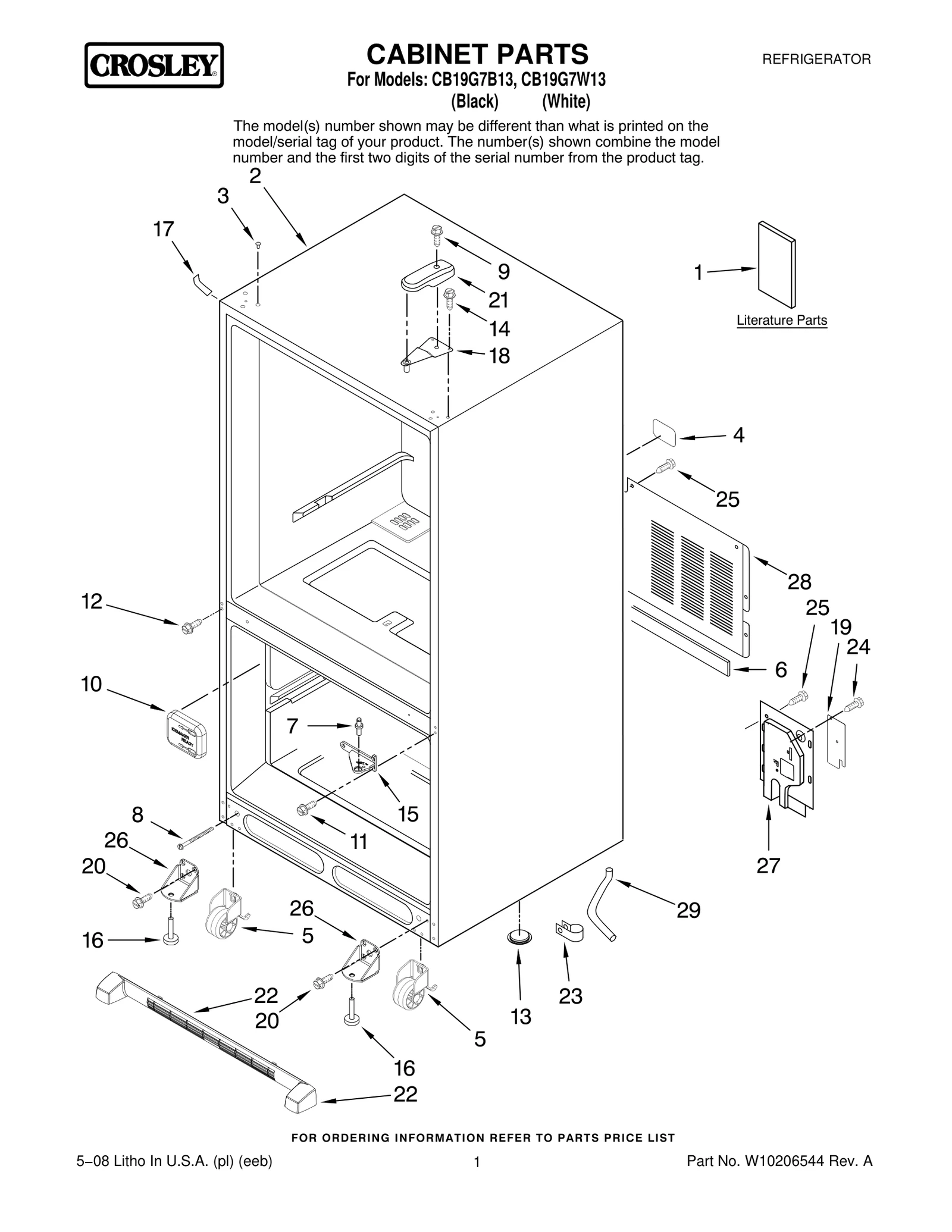

CABINET PARTS
Parts in CABINET PARTS
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10137651 Use & Care Guide | - |
| 1 | – | 67006032 Energy Guide | - |
| 1 | – | W10169671 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP67001130replaces M0310729 Plug, Button (3) — White | $5.00 RepairClinic |
| 3 |  | WP12246608replaces M0310731 Plug, Button (3) — Black | $3.38 Part Advantage |
| 4 |  | W11685757replaces 67005064 Label, Fill Tube | $3.95 ApplianceParts Pro |
| 5 | – | 67006118 Roller Assy. (2) | - |
| 6 | – | B5759649 Gasket | - |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 |  | 71003131replaces 67006611 Bolt, Adjusting | $6.21 Parts Dr |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 |  | WP67001098replaces 67001098 Cover, Fill Tube | $4.95 ApplianceParts Pro |
| 11 |  | WP67006380replaces 67006380 Screw | $21.46 ApplianceParts Pro |
| 12 |  | WP489349replaces 67005822 Screw | $2.30 Part Advantage |
| 13 |  | Plug−Button | - |
| 14 | | WP489349replaces 67006303 Screw (3) | $2.30 Part Advantage |
| 15 | | W11689473replaces 67006960 Hinge, Center — White | $44.23 PartSelect |
| 15 |  | WP12607104EDreplaces 67007043 Hinge, Center — Black | $53.11 Parts Dr |
| 16 |  | W11177593replaces 67003868 Foot Brake | $6.48 Part Advantage |
| 17 | | Cover, Corner — White | $13.72 RepairClinic |
| 17 |  | Cover, Corner — Black | - |
| 18 |  | WP12566606EDreplaces 12566604ED Hinge, Top | $18.97 Parts Dr |
| 19 | | Plate, Cover | - |
| 20 |  | Screw (8) | $3.74 Parts Dr |
| 21 |  | Cover Hinge — White | - |
| 21 |  | Cover Hinge — Black | - |
| 22 |  | WPW10534166replaces 67006905 Grille, Toe — White | $41.50 Parts Dr |
| 22 |  | WPW10534167replaces 67006886 Grille, Toe — Black | $57.19 RepairClinic |
| 23 | | Clip, Drain Tube | $6.95 ApplianceParts Pro |
| 24 |  | WP489128replaces 67006662 Screw | $5.96 Parts Dr |
| 25 |  | Screw | $2.30 Part Advantage |
| 26 |  | 12906303WDreplaces 67007174 Bracket, Foot (2) | $27.27 Parts Dr |
| 27 | – | 67001173 Cover, Water Valve | - |
| 28 |  | Cover, Unit | - |
| 29 | | 67001066NLA Tube, Drain | Discontinued |
