Model
Crosley CDB1500AWD10
Undercounter Dishwasher
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelCrosley
CDB1500AWD10Undercounter Dishwasher
11 diagrams113 parts
Parts Sections (11)
Diagram

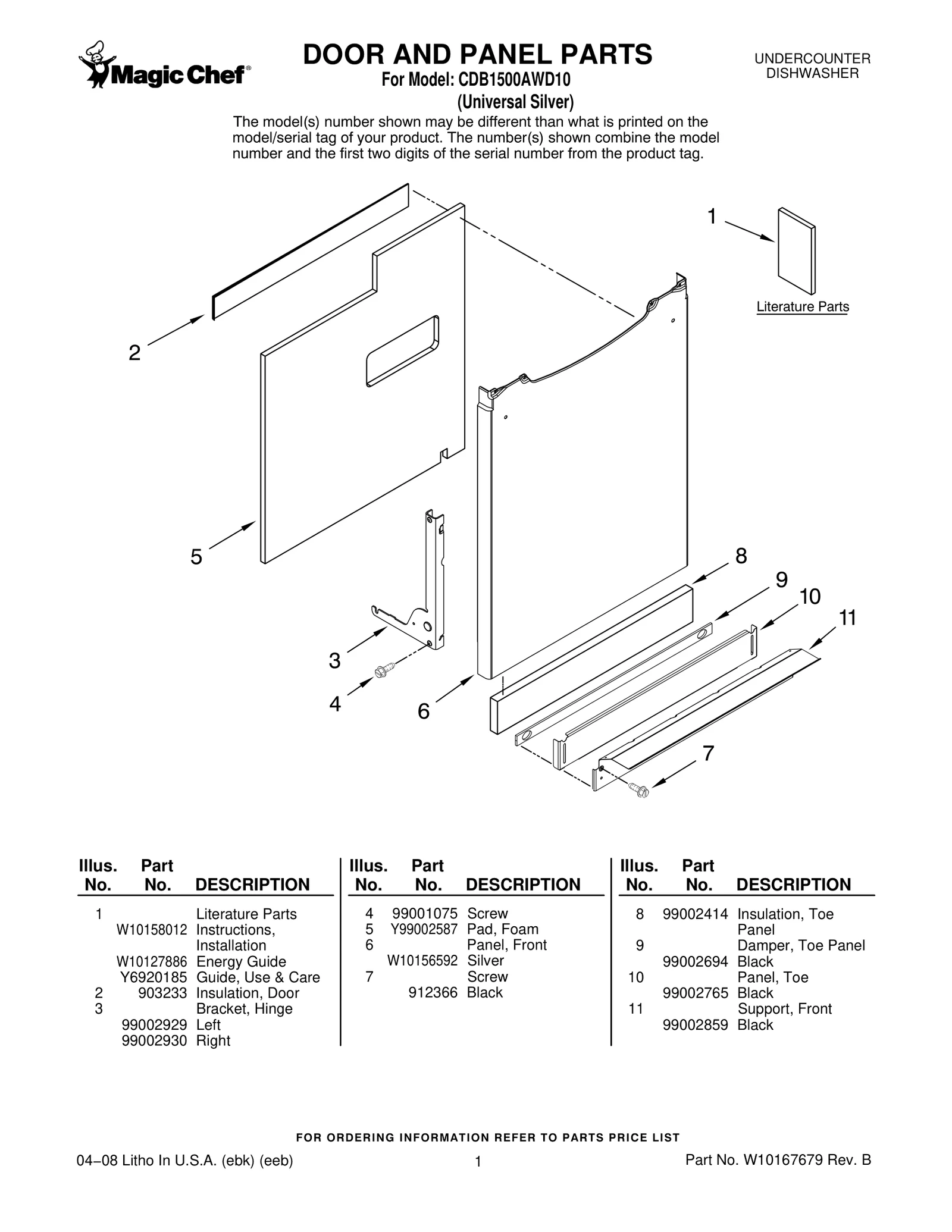

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10158012 Instructions, Installation | - |
| 1 | – | W10127886 Energy Guide | - |
| 1 | – | Y6920185 Guide, Use & Care | - |
| 2 |  | WPW10117748replaces 903233 Insulation, Door | - |
| 3 |  | WPW10118638replaces 99002929 Bracket, Hinge — Left | - |
| 3 |  | WPW10118637replaces 99002930 Bracket, Hinge — Right | $110.42 ApplianceParts Pro |
| 4 | | 99001075NLA Screw | Discontinued |
| 5 | – | Y99002587 Pad, Foam | - |
| 6 | – | W10156592 Panel, Front — Silver | - |
| 7 |  | WP6-912366replaces 912366 Screw — Black | $5.95 ApplianceParts Pro |
| 8 |  | WP6-920587replaces 99002414 Insulation, Toe Panel | $4.73 ApplianceParts Pro |
| 9 | | 99002694NLA Damper, Toe Panel — Black | Discontinued |
| 10 | | 99002765NLA Panel, Toe — Black | Discontinued |
| 11 | – | 99002859 Support, Front — Black | - |
