Model
Crosley CDB4000TU0
Undercounter Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelCrosley
CDB4000TU0Undercounter Dishwasher
7 diagrams145 parts

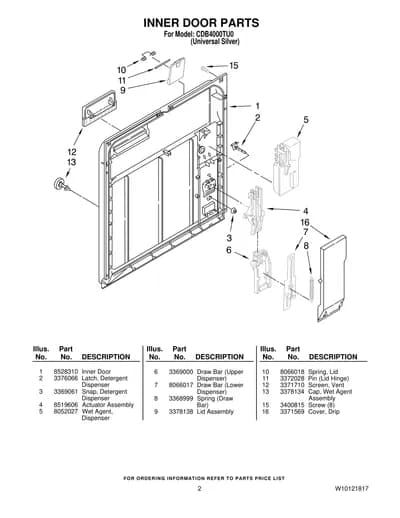

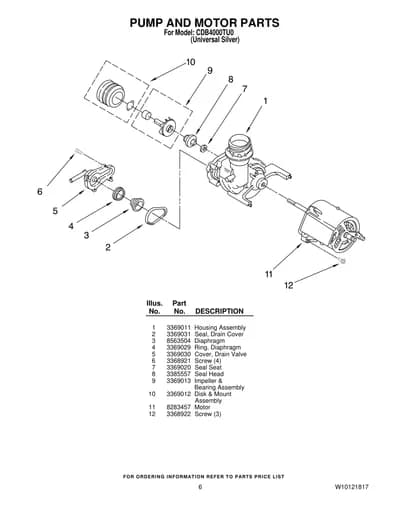

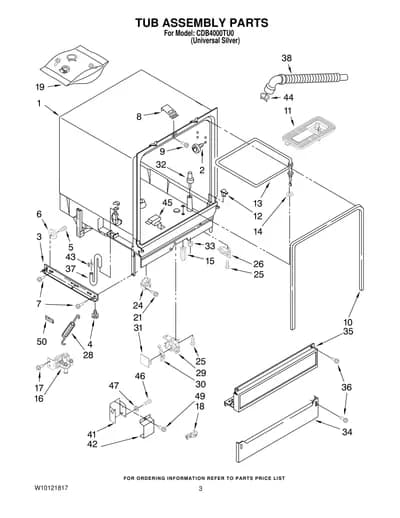

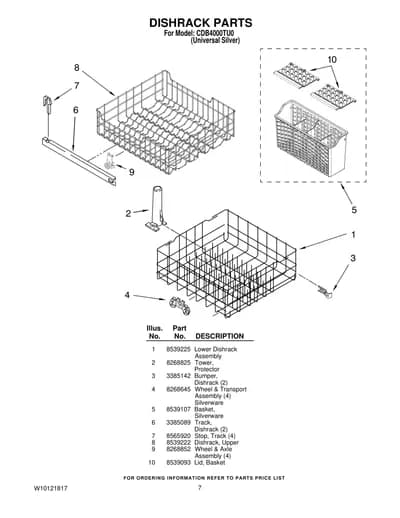

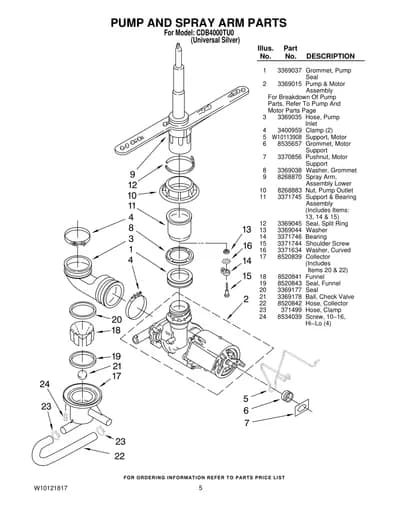

Parts Sections (7)
Diagram

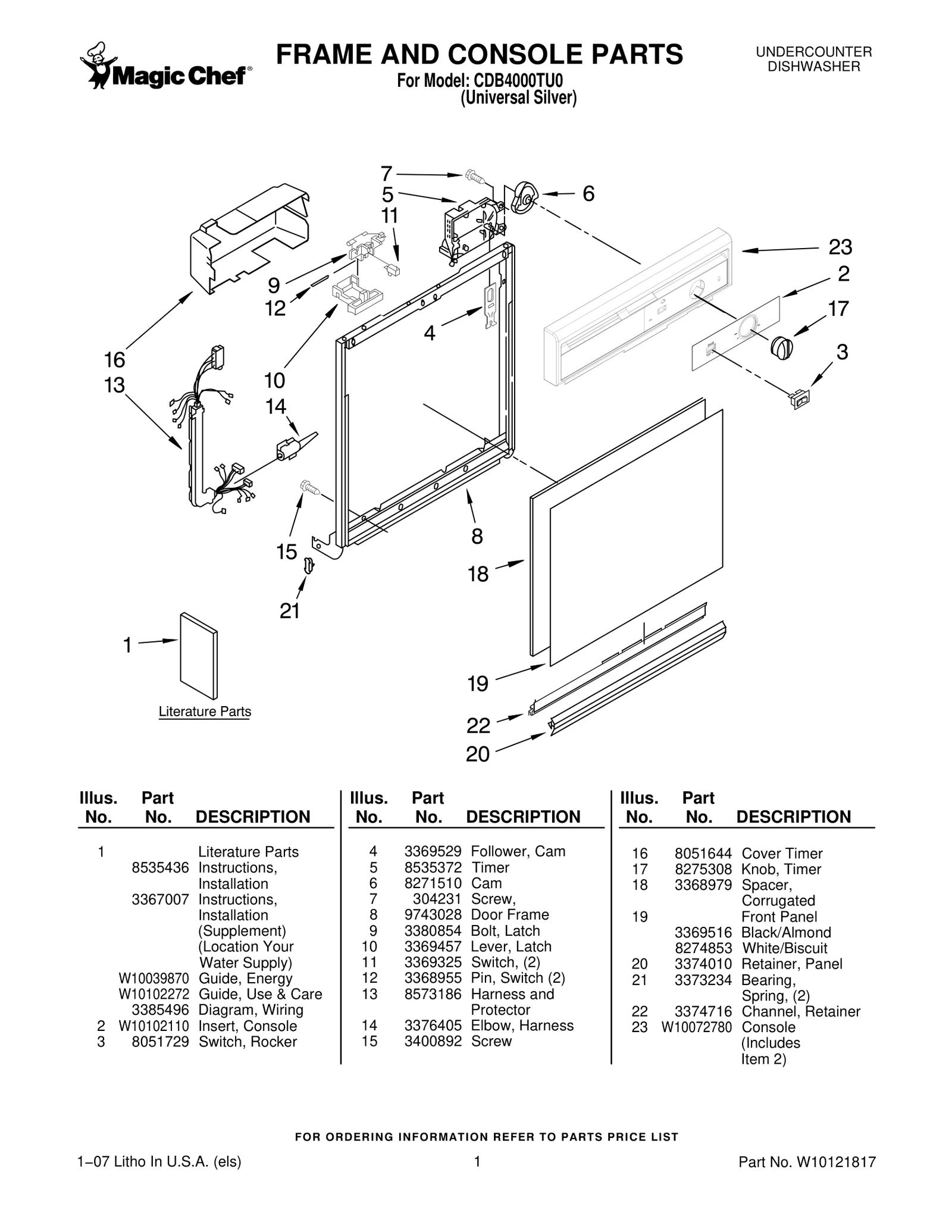

FRAME AND CONSOLE PARTS
Parts in FRAME AND CONSOLE PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8535436 Instructions, Installation | - |
| 1 | – | 3367007 Instructions, Installation (Location Your Water Supply) | - |
| 1 | – | W10039870 Guide, Energy | - |
| 1 | – | W10102272 Guide, Use & Care | - |
| 1 | – | 3385496 Diagram, Wiring | - |
| 2 | – | W10102110 Insert, Console | - |
| 3 |  | Switch, Rocker | $46.35 ApplianceParts Pro |
| 4 |  | WP3369529replaces 3369529 Follower, Cam | $30.59 Parts Dr |
| 5 |  | WP8535372replaces 8535372 Timer | - |
| 6 |  | WP8271510replaces 8271510 Cam | $1.68 RepairClinic |
| 7 |  | WP304231replaces 304231 Screw, | $5.00 RepairClinic |
| 8 |  | WP9743028replaces 9743028 Door Frame | - |
| 9 |  | WP3380854replaces 3380854 Bolt, Latch | $32.72 Part Advantage |
| 10 | | 3369457NLA Lever, Latch | Discontinued |
| 11 |  | Switch, (2) | Discontinued |
| 12 | | Pin, Switch (2) | Discontinued |
| 13 | | Harness and Protector | - |
| 14 |  | Elbow, Harness | $12.95 ApplianceParts Pro |
| 15 |  | WP3400892replaces 3400892 Screw | $3.72 Parts Dr |
| 16 | | Cover Timer | - |
| 17 |  | Knob, Timer | $43.15 Parts Dr |
| 18 | | 3368979NLA Spacer, Corrugated | Discontinued |
| 19 |  | WP3369769replaces 3369516 Front Panel — Black/Almond | $16.27 Part Advantage |
| 19 | | WP3369769replaces 8274853 Front Panel — White/Biscuit | $16.27 Part Advantage |
| 20 |  | Retainer, Panel | Discontinued |
| 21 |  | WP3373234replaces 3373234 Bearing, Spring, (2) | $6.95 ApplianceParts Pro |
| 22 |  | WP3374716replaces 3374716 Channel, Retainer | $53.95 ApplianceParts Pro |
| 23 | – | W10072780 Console (Includes Item 2) ® 1−07 Litho In U.S.A. (els) | - |
