Model
Maytag CERS858TCW0
30" Electric Ceran Freestanding Range Self Clean Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
CERS858TCW030" Electric Ceran Freestanding Range Self Clean Oven
6 diagrams164 parts
Parts Sections (6)
Diagram

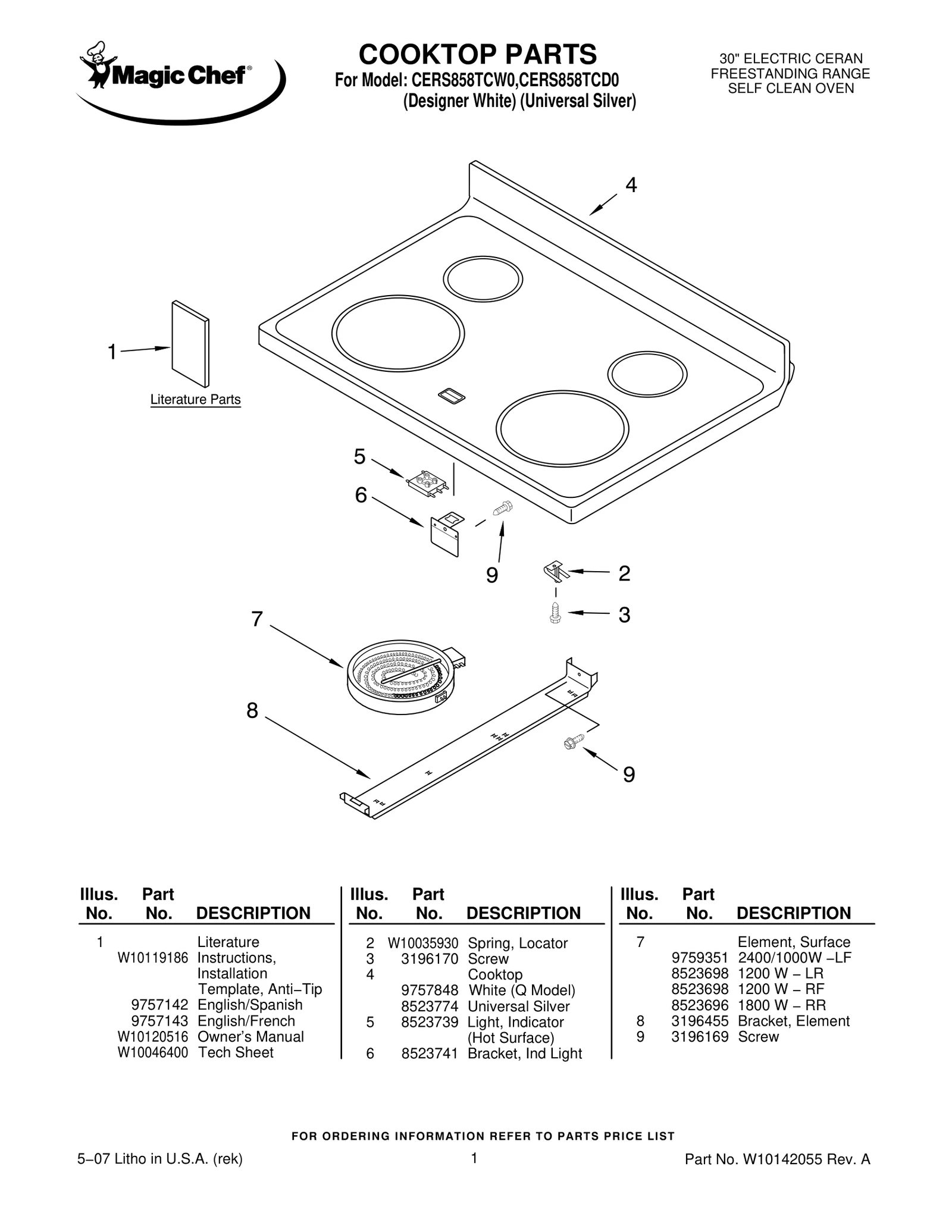

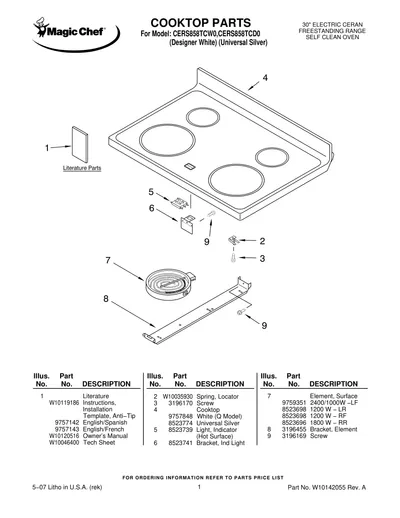

COOKTOP PARTS
Parts in COOKTOP PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10119186 Instructions, | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10120516 Owner’s Manual | - |
| 1 | – | W10046400 Tech Sheet | - |
| 2 |  | 3149191replaces W10035930 Spring, Locator | $6.29 Parts Dr |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 4 | – | 9757848 White (Q Model) | - |
| 4 | – | 8523774 Cooktop — Universal Silver | - |
| 5 | | Light, Indicator | - |
| 6 | – | 8523741 Bracket, Ind Light | - |
| 7 |  | W10823692replaces 9759351 Element, Surface — 2400/1000W −LF | $119.42 Parts Dr |
| 7 |  | W10823711replaces 8523698 Element, Surface — 1200 W − LR | $92.55 Part Advantage |
| 7 | | W10823711replaces 8523698 Element, Surface — 1200 W − RF | $92.55 Part Advantage |
| 7 |  | W10823698replaces 8523696 Element, Surface — 1800 W − RR | $83.15 Part Advantage |
| 8 | | Bracket, Element | - |
| 9 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
